Chore-Time 52 TURBO Installation & Operator's Instruction Manual page 8

Installation
Assembling the Cone
A. Lay one panel flat with the tabs oriented to the left. Place a 2x4 or similar underneath the panel just left of the
slots on the right side.
B. Place tabs of a second panel into the slots of the first and ensure they 'pop' together fully.
C. Lay this second panel flat then move the 2x4 over just to the left of the slots again.
D. Repeat these steps until all four panels are locked together.
E. Lift the panels up and curl them into a ring so that the larger diameter is upwards.
F. Snap the tabs of the first panel into the slots of the fourth panel.
-Ensure all tabs are toward inside of cone!
G. Fasten all four bottom holes with (54287) bolts and (46764) nuts making sure the bolt heads are on the inside of
the cone and the threads are sticking to the outside.
H. Place the grill (56230) inside the cone and secure with eight more (46764) nuts and (54287) bolts. Make sure
seven of these bolts are oriented with the head inside the cone and threads outside. The eighth bolt will be the
bottom of the cone. It must be attached with threads inside the cone and head outside the cone. It should not be
on any of the four seams between panels.
A
E
F
8
B
H
Bottom Bolt Only
(56230) Grill
G
(X4)

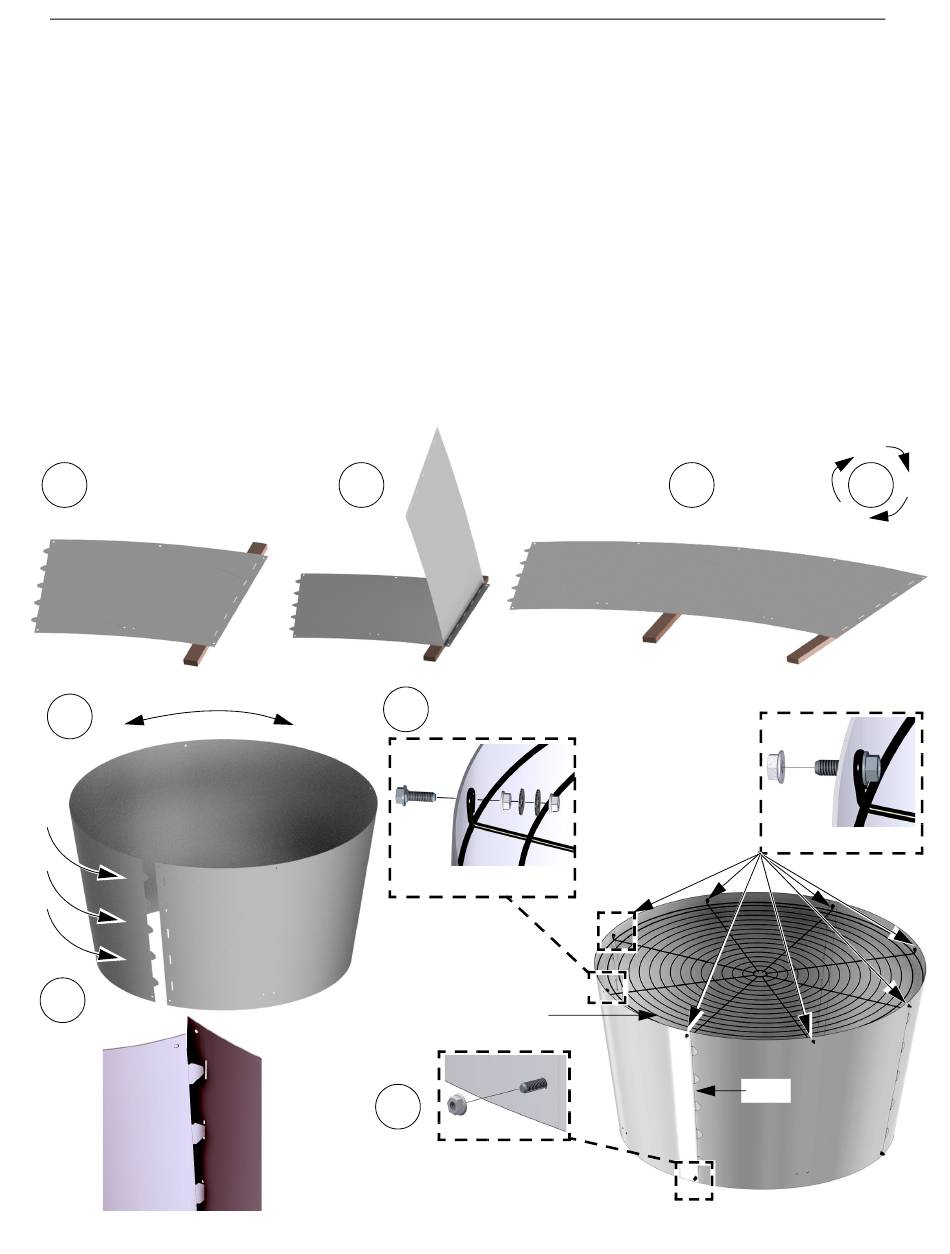

Figure 5.Assembling Cone
C
(X1)
D
(X7)
Seam
MV2477C
