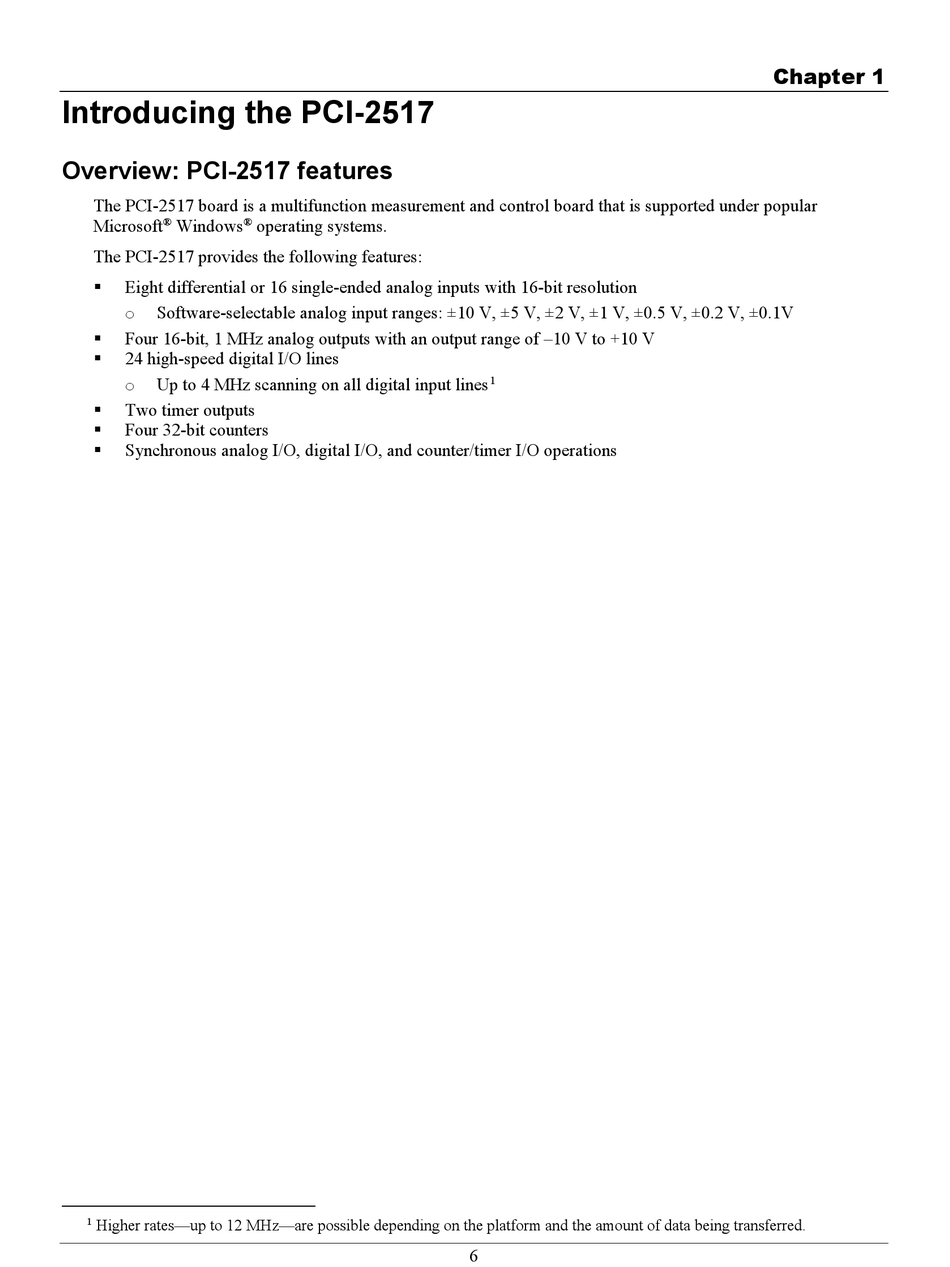

Introducing the PCI-2517

Overview: PCI-2517 features

The PCI-2517 board is a multifunction measurement and control board that is supported under popular
Microsoft ® Windows
The PCI-2517 provides the following features:
Eight differential or 16 single-ended analog inputs with 16-bit resolution

o Software-selectable analog input ranges: ±10 V, ±5 V, ±2 V, ±1 V, ±0.5 V, ±0.2 V, ±0.1V
Four 16-bit, 1 MHz analog outputs with an output range of –10 V to +10 V

24 high-speed digital I/O lines

o Up to 4 MHz scanning on all digital input lines
Two timer outputs

Four 32-bit counters

Synchronous analog I/O, digital I/O, and counter/timer I/O operations

1 Higher rates—up to 12 MHz—are possible depending on the platform and the amount of data being transferred.
® operating systems.
1
6
Chapter 1
