7.4 Time Domain Display

The time domain display tool allows visualization of the ADC response to a given input signal. This tool is
useful for both studying the behavior and debugging any gross problems with the ADC or drive circuits. The
user can trigger a capture of the data of the selected number of samples from the ADS8688EVM, as per the
current interface mode settings indicated in
the x-axis and there are two y-axes showing the corresponding output codes as well as the equivalent analog
voltages based on the specified reference voltage. Switching pages to any of the Analysis tools described in the
subsequent sections causes calculations to be performed on the same set of data.
Time domain selected here.
14 ADS8688EVM-PDK Evaluation Module
Figure 7-6 by using the Capture button. The sample indices are on

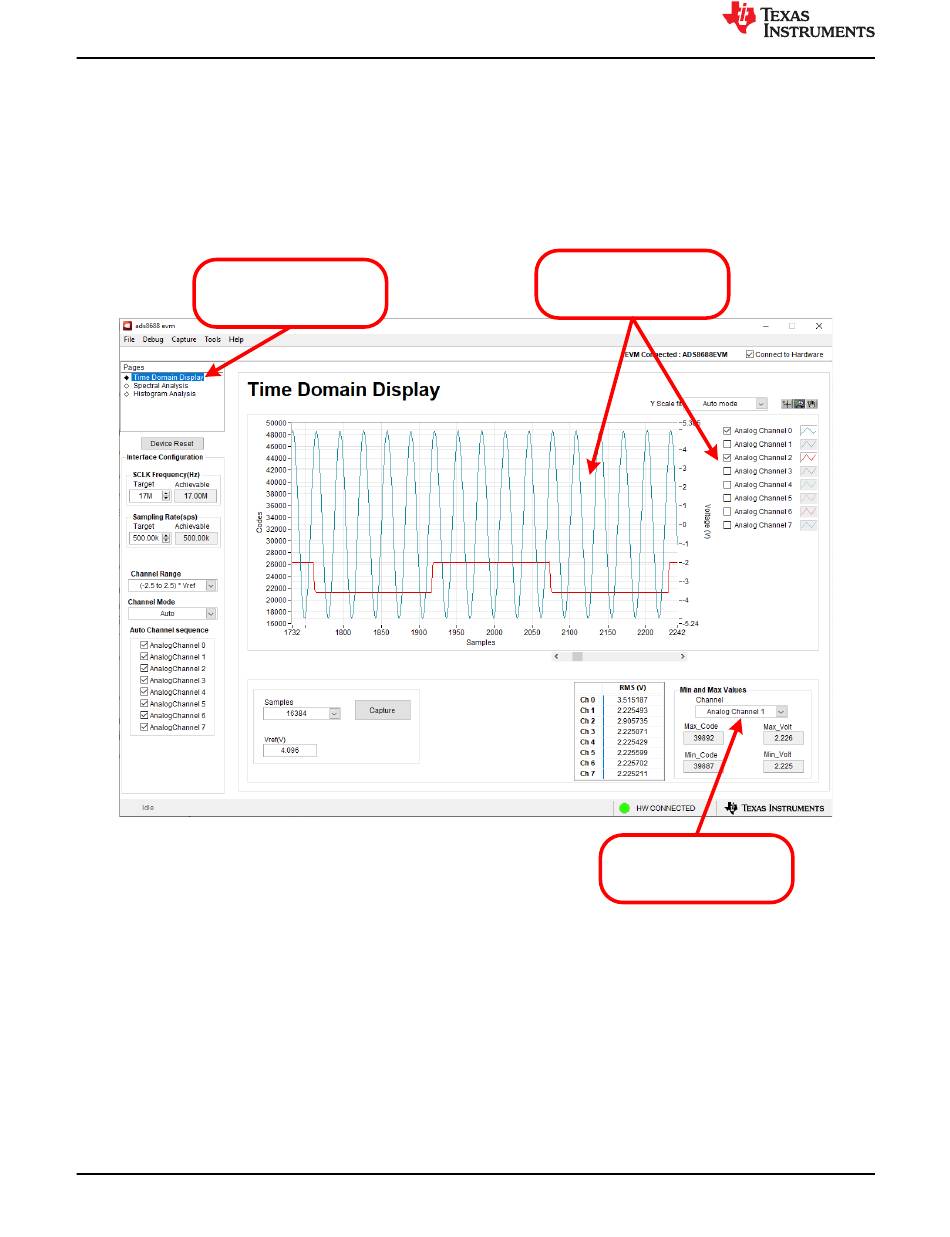

Figure 7-6. Time Domain Display Tool Options
