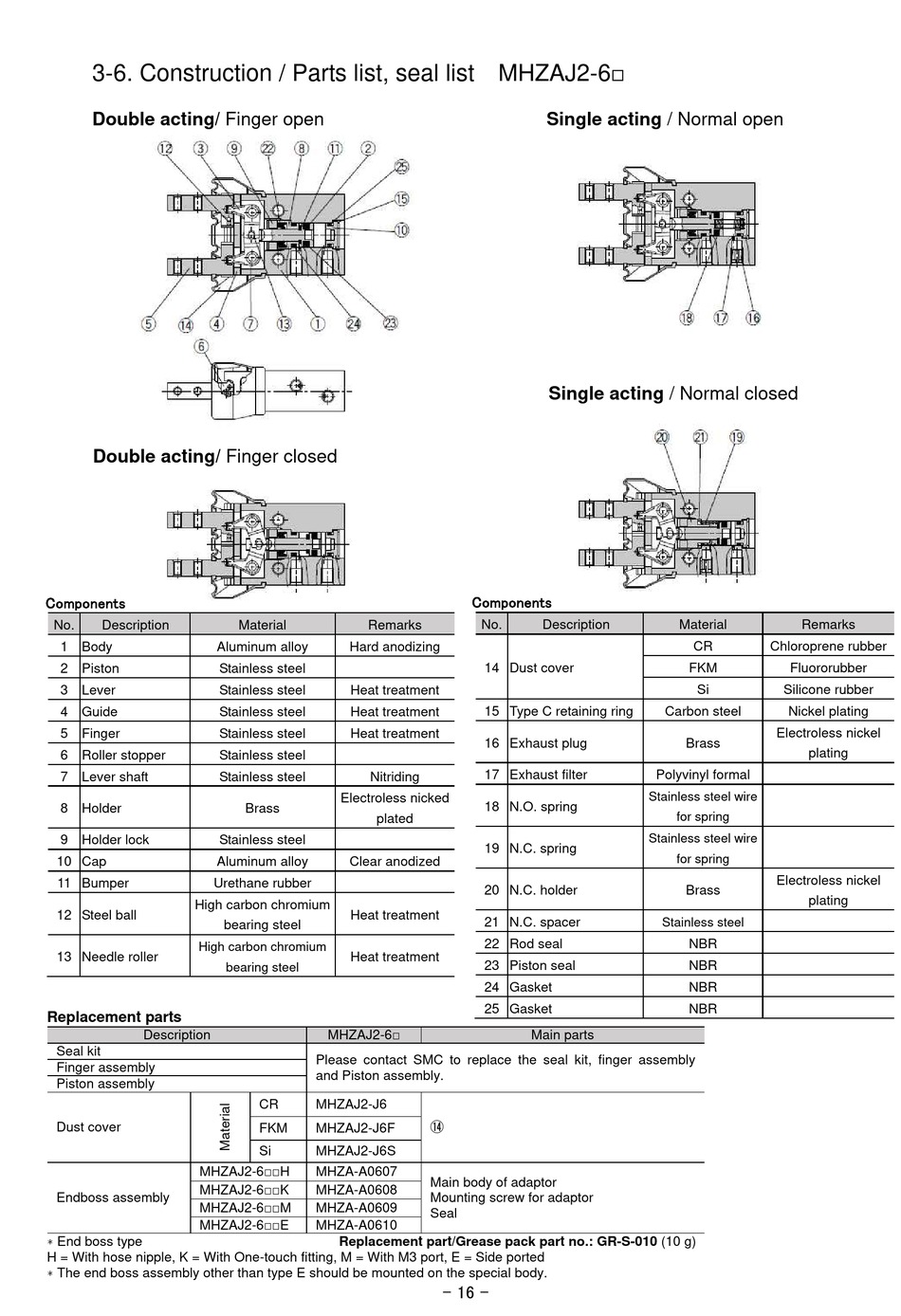

3-6. Construction / Parts list, seal list MHZAJ2-6□

Double acting/ Finger open
Double acting/ Finger closed
Components
No. Description
1 Body
2 Piston
3 Lever
4 Guide
5 Finger
6 Roller stopper
7 Lever shaft
8 Holder
9 Holder lock
10 Cap
11 Bumper Urethane rubber
High carbon chromium
12 Steel ball
High carbon chromium
13 Needle roller
Replacement parts
Description
Seal kit
Finger assembly
Piston assembly
Dust cover
MHZAJ2-6□□H
MHZAJ2-6□□K
Endboss assembly
MHZAJ2-6□□M
MHZAJ2-6□□E
∗ End boss type
H = With hose nipple, K = With One-touch fitting, M = With M3 port, E = Side ported
∗ The end boss assembly other than type E should be mounted on the special body.
Material Remarks
Aluminum alloy Hard anodizing
Stainless steel
Stainless steel Heat treatment
Stainless steel Heat treatment
Stainless steel Heat treatment
Stainless steel
Stainless steel Nitriding
Electroless nicked
Brass
plated
Stainless steel
Aluminum alloy Clear anodized
Heat treatment
bearing steel
Heat treatment
bearing steel
MHZAJ2-6□
Please contact SMC to replace the seal kit, finger assembly
and Piston assembly.
CR MHZAJ2-J6
FKM MHZAJ2-J6F
Si MHZAJ2-J6S
MHZA-A0607
MHZA-A0608
MHZA-A0609
MHZA-A0610
Replacement part/Grease pack part no.: GR-S-010 (10 g)
Single acting / Normal open
Single acting / Normal closed
Components
No. Description
14 Dust cover
15 Type C retaining ring
16 Exhaust plug
17 Exhaust filter
18 N.O. spring
19 N.C. spring
20 N.C. holder
21 N.C. spacer
22 Rod seal
23 Piston seal
24 Gasket
25 Gasket
Main parts
⑭
Main body of adaptor
Mounting screw for adaptor
Seal
- 16 -
Material Remarks
CR Chloroprene rubber
FKM Fluororubber
Si Silicone rubber
Carbon steel Nickel plating
Electroless nickel
Brass
plating
Polyvinyl formal
Stainless steel wire
for spring
Stainless steel wire
for spring
Electroless nickel
Brass
plating
Stainless steel
NBR
NBR
NBR
NBR
