- Page 1 No.MSQB-MM00002-B Maintenance Procedure PRODUCT NAME Rotary Table MODEL / Series / Product Number MSQ Series MSQB10A MSQB20A MSQB30A MSQB50A MSQB10R MSQB20R MSQB30R MSQB50R...
-
Page 2: Safety Instructions
Safety Instructions These safety instructions are intended to prevent hazardous situations and/or equipment damage. These instructions indicate the level of potential hazard with the labels of “Caution,” “Warning” or “Danger.” They are all important notes for safety and must be followed in addition to International Standards (ISO/IEC) , and other safety regulations. -
Page 3: Limited Warranty And Disclaimer/Compliance Requirements
Safety Instructions Caution The product is provided for use in manufacturing industries. The product herein described is basically provided for peaceful use in manufacturing industries. If considering using the product in other industries, consult SMC beforehand and exchange specifications or a contract if necessary. If anything is unclear, contact your nearest sales branch. -
Page 4: Maintenance Procedure

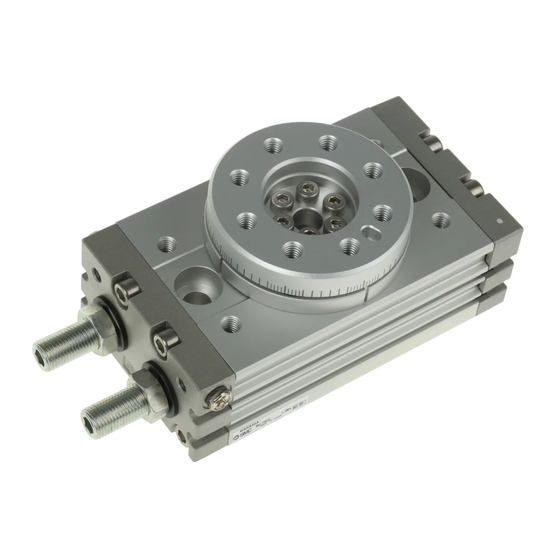

Maintenance Procedure Rotary Table MSQ Series Model : MSQB10A MSQB20A MSQB30A MSQB50A MSQB10R MSQB20R MSQB30R MSQB50R Rotary tables require periodic maintenance appropriate for the operating conditions to be used in the best condition. Annual maintenance is desirable in general and replacement of consumable parts such as piston seal is recommended every three years even if there is no problem. - Page 5 Name plate ― Auto switch Plug Seal washer Parallel pin Hexagon socket head cap screw Hexagon socket head cap screw Hexagon thin socket head cap screw (Size10 Round head philips screw Round head philips screw No.0 Deep groove ball bearing Deep groove ball bearing Piston seal Wear ring...
- Page 6 3. Spare Parts Replacement Procedure All the consumable parts such as piston packing are available as a maintenance kit. The part numbers are shown in Table 1 below. Table 1 Maintenance Kit Part Number Model Maintenance kit part number Contents Seal (4) MSQB10＊...
- Page 7 3.4 Seal Washer (26) a. Loosen and take off compact hexagon nuts (8) together with adjustment bolts (9) / shock absorbers from end cover (5). b. Pull out old seal washers from adjustment bolts / shock absorbers. Attach new seal washers to adjustment bolts / shock absorbers. d.
- Page 8 d. Insert pinion (7) into body : confirm piston position with Figure 3 and insert pinion as shown in Figure 4. Assemble the pinion so that the peak of the piston gear engages with the root of the pinion gear on the center line of the body when viewing the pinion from the top, with the pin hole in the position shown in the figure.
- Page 9 Set table (14) on pinion (7) and fix them with hexagon socket head cap screw (23). (Tightening torque : Table2－③) Fix the table in a condition that pin holes on the top are located as shown in Figure 5 at the end of counter-clockwise turn for 180゜...
- Page 10 Revision history A:Complete revision due to product review B:Corrected to the latest format 4-14-1, Sotokanda, Chiyoda-ku, Tokyo 101-0021 JAPAN Tel: + 81 3 5207 8249 Fax: +81 3 5298 5362 https://www.smcworld.com Note: Specifications are subject to change without prior notice and any obligation on the part of the manufacturer. ©...
