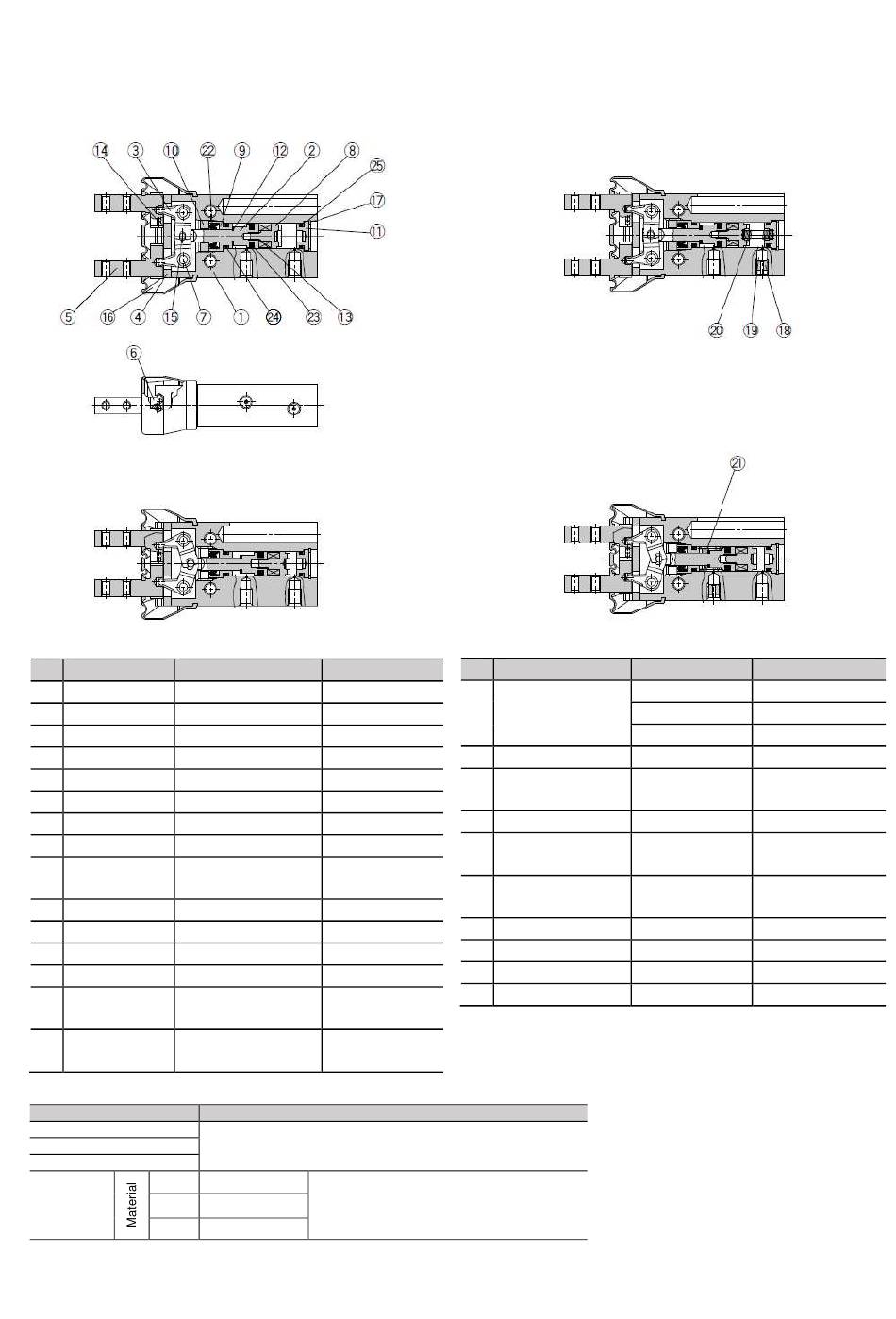

3-4. Construction / Parts list, seal list MHZJ2-6□

Double acting/ Finger open
Double acting/ Finger closed
Components
No. Description
1 Body
2 Piston
3 Lever
4 Guide
5 Finger
6 Roller stopper
7 Lever shaft
8 Magnet holder
9 Holder
10 Holder lock
11 Cap
12 Bumper
13 Magnet
High carbon chromium
14 Steel ball
High carbon chromium
15 Needle roller
Replacement parts
Description
Seal kit
Finger assembly
Piston assembly
CR
Dust cover
FKM
Si
Material Remarks
Aluminum alloy Hard anodizing
Stainless steel
Stainless steel Heat treatment
Stainless steel Heat treatment
Stainless steel Heat treatment
Stainless steel
Stainless steel Nitriding
Stainless steel
Electroless nicked
Brass
plated
Stainless steel
Aluminum alloy Clear anodized
Urethane rubber
－
Nickel plated
Heat treatment
bearing steel
Heat treatment
bearing steel
MHZJ2-6□
Please contact SMC to replace the seal kit, finger assembly
and piston assembly.
MHZJ2-J6
⑯
MHZJ2-J6F
MHZJ2-J6S
Single acting / Normal open
Single acting / Normal closed
Components
No. Description
16 Dust cover
17 Type C retaining ring
18 Exhaust plug
19 Exhaust filter
20 N.O. spring
21 N.C. spring
22 Rod seal
23 Piston seal
24 Gasket
25 Gasket
- 14 -
Material Remarks
CR Chloroprene rubber
FKM Fluororubber
Si Silicone rubber
Carbon steel Nickel plating
Electroless nickel
Brass
plating
Polyvinyl formal
Stainless steel wire
for spring
Stainless steel wire
for spring
NBR
NBR
NBR
NBR
