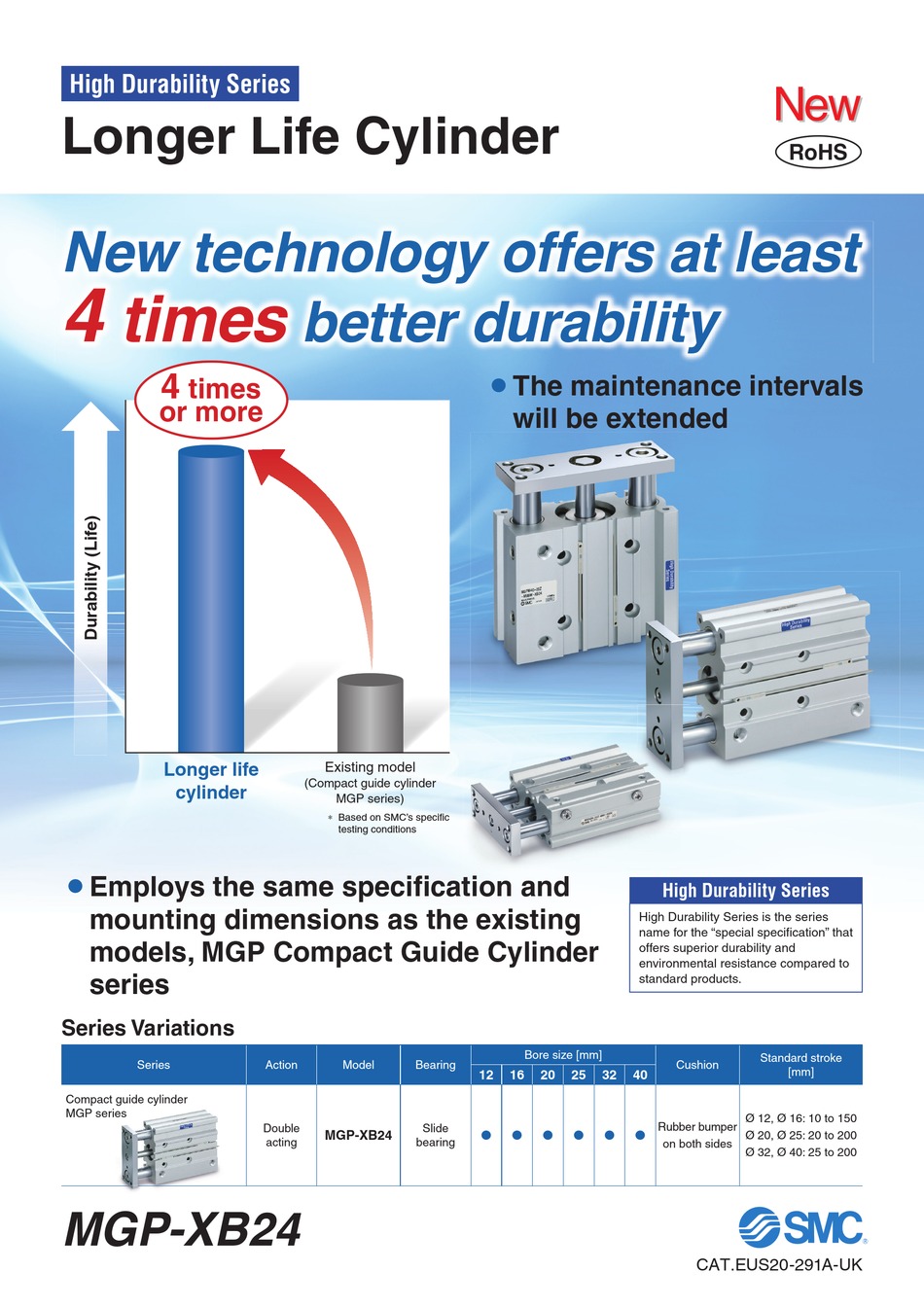

SMC Networks MGP-XB24 Mounting Instructions

Longer life cylinder

Advertisement

High Durability Series
Longer Life Cylinder
New technology offers at least
4
times
4
times
or more
Longer life
cylinder
¡
Employs the same specification and
mounting dimensions as the existing
models, MGP Compact Guide Cylinder
series
Series Variations
Series
Compact guide cylinder
g
y
MGP series
es
MGP-XB24
better durability
Existing model
(Compact guide cylinder
MGP series)
∗ Based on SMC's specific
testing conditions
Action
Model
Bearing
Double
Slide
MGP-XB24
acting
bearing
¡
The maintenance intervals
will be extended
High Durability Series is the series
name for the "special specification" that
offers superior durability and
environmental resistance compared to
standard products.
Bore size [mm]
12
16
20
25
32
40
RoHS
High Durability Series
Standard stroke
Cushion
[mm]
Ø 12, Ø 16: 10 to 150
Rubber bumper
Ø 20, Ø 25: 20 to 200
on both sides
Ø 32, Ø 40: 25 to 200
CAT.EUS20-291A-UK

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MGP-XB24 and is the answer not in the manual?

Questions and answers

Summary of Contents for SMC Networks MGP-XB24

  • Page 1 Cushion [mm] Compact guide cylinder MGP series Ø 12, Ø 16: 10 to 150 Rubber bumper Double Slide MGP-XB24 Ø 20, Ø 25: 20 to 200 acting bearing on both sides Ø 32, Ø 40: 25 to 200 MGP-XB24 CAT.EUS20-291A-UK...
  • Page 2 High Durability Series Longer Life Cylinder MGP-XB24 Ø 12, Ø 16, Ø 20, Ø 25, Ø 32, Ø 40 How to Order MGP M 25 30 Z M9BW XB24 Compact guide cylinder Longer life cylinder Bearing type Bore size Port thread type...
  • Page 3: Specifications

    High Durability Series MGP-XB24 Longer Life Cylinder Specifi cations Bore size [mm] Action Double acting Fluid Proof pressure 1.5 MPa Max. operating pressure 1.0 MPa Min. operating pressure 0.12 MPa 0.1 MPa Ambient and fl uid temperatures -10 to 60 °C (No freezing)
  • Page 4 High Durability Series MGP-XB24 Ø 12 Ø 16 MGPM: Section XX details T-slot dimensions Section XX 4 x M5 x 0.8 depth 10 [mm] Bore size [mm] 4.4 7.4 3.7 2 4.4 7.4 3.7 2.5 6.7 Ø 3H9 depth 6...
  • Page 5 High Durability Series MGP-XB24 Longer Life Cylinder Ø 20 Ø 40 MGPM: Section XX details T-slot dimensions 4 x YY depth YL Section XX [mm] Bore size [mm] 8.4 4.5 8.4 4.5 6.5 10.5 5.5 6.5 10.5 5.5 Ø H9 depth 6 Bottom view 4 x Ø...
  • Page 6: Specifi C Product Precautions

    High Durability Series MGP-XB24 Specifi c Product Precautions 1 Be sure to read this before handling the products. Refer to the back cover for safety instructions. For actuator and auto switch precautions, refer to the “Handling Precautions for SMC Products,” the “Operation Manual,” and compact guide cylinder MGP series specifi...
  • Page 7 High Durability Series MGP-XB24 Specifi c Product Precautions 2 Be sure to read this before handling the products. Refer to the back cover for safety instructions. For actuator and auto switch precautions, refer to the “Handling Precautions for SMC Products,” the “Operation Manual,” and compact guide cylinder MGP series specifi...
  • Page 8: Safety Instructions

    These safety instructions are intended to prevent hazardous situations and/or equipment Safety Instructions damage. These instructions indicate the level of potential hazard with the labels of “Caution,” “Warning” or “Danger.” They are all important notes for safety and must be followed in addition to International Standards (ISO/IEC) , and other safety regulations.
  • Page 9 SMC Corporation (Europe) Austria +43 (0)2262622800 www.smc.at offi ce@smc.at Lithuania +370 5 2308118 www.smclt.lt info@smclt.lt Belgium +32 (0)33551464 www.smc.be info@smc.be Netherlands +31 (0)205318888 www.smc.nl info@smc.nl Bulgaria +359 (0)2807670 www.smc.bg offi ce@smc.bg Norway +47 67129020 www.smc-norge.no post@smc-norge.no Croatia +385 (0)13707288 www.smc.hr offi...
