AD9858PCB

I/O INTERFACE

This window is where the user specifies whether the evaluation board is to communicate with the AD9858 device in parallel or serial
mode. In serial mode, the user can also specify LSB first or last as well as whether the board should use 2-wire or 3-wire serial
communication. During serial communications, it is possible that a communication error can cause a lack of synchronization between the
source and the receiver. The I/O reset button can be used to reset the serial port and then reinitiate a communication sequence.

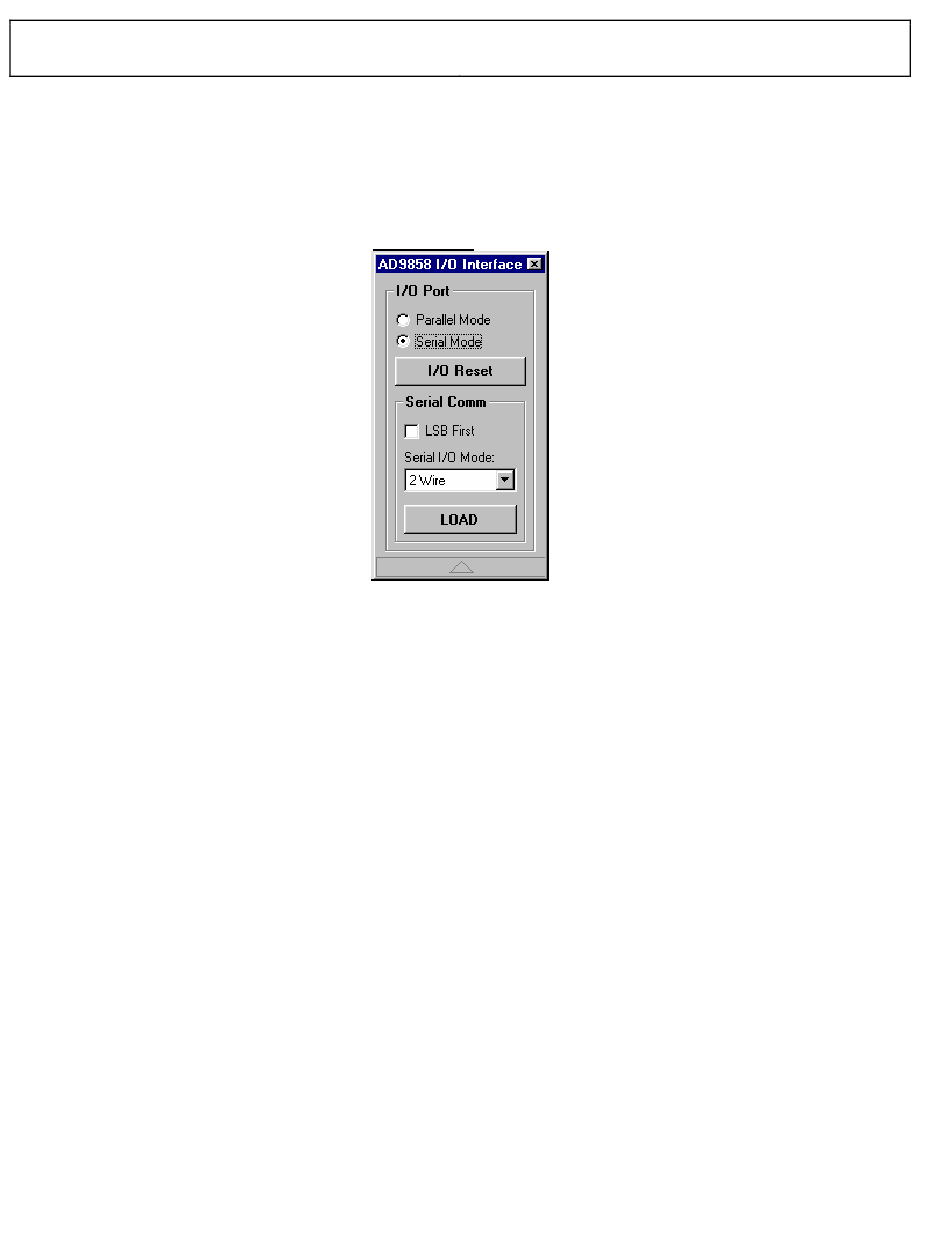

Figure 9. I/O Interface
