AD9858PCB
FREQUENCY SWEEP SETUP DIALOG BOXES
At the bottom of the Profiles window is the display for the frequency sweeping mode variables—Delta Frequency Tuning Word and Ramp
Rate. Clicking the Edit button opens a dialog window that assists the user in entering the information. This data is not loaded until the
LOAD button is clicked. When unloaded changes have been made, the LOAD button flashes green until the data is loaded.

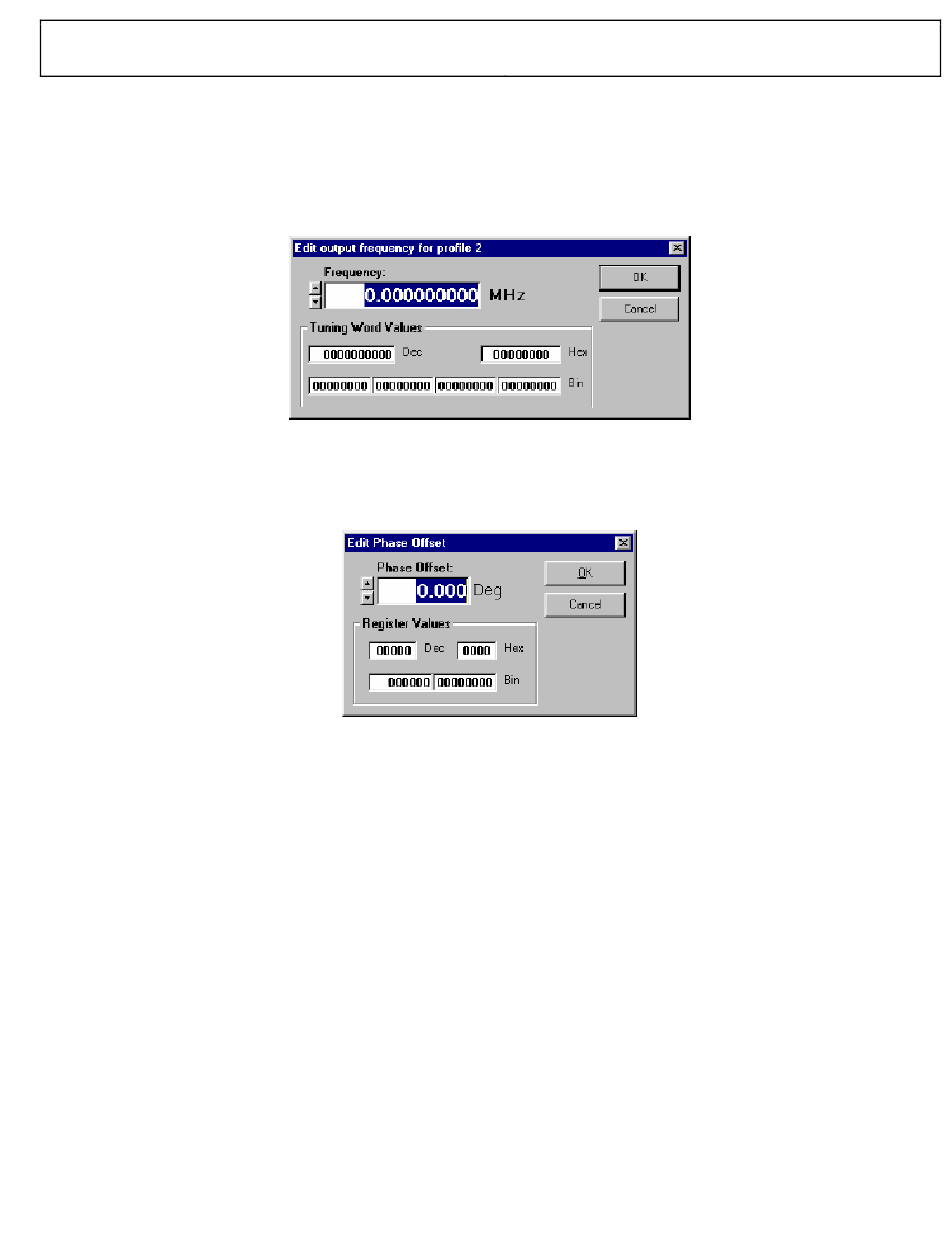

Figure 12. Edit Output Frequency Dialog Box
Figure 12. Edit Phase Offset Dialog Box
Rev. 0 | Page 9 of 12
