PLL FAST LOCK

This window is accessible from the Control window or from the View menu. The PLL Fast Lock window allows the user to enable and

disable the PLL Fast Lock algorithm. When engaged, the charge pump operates in three modes: a frequency detect mode, a wide closed-

loop mode, and a final closed-loop mode. The user programs the charge pump reference current with an external resistor from CP_Iset to

ground. Here, the user tells the program what value is used (2400 Ω is the default value on the evaluation board) and then programs the

scaling factors the device should use for the different modes. The user can also set the Phase Detector divider ratio. This divisor scales the

divider input in time.

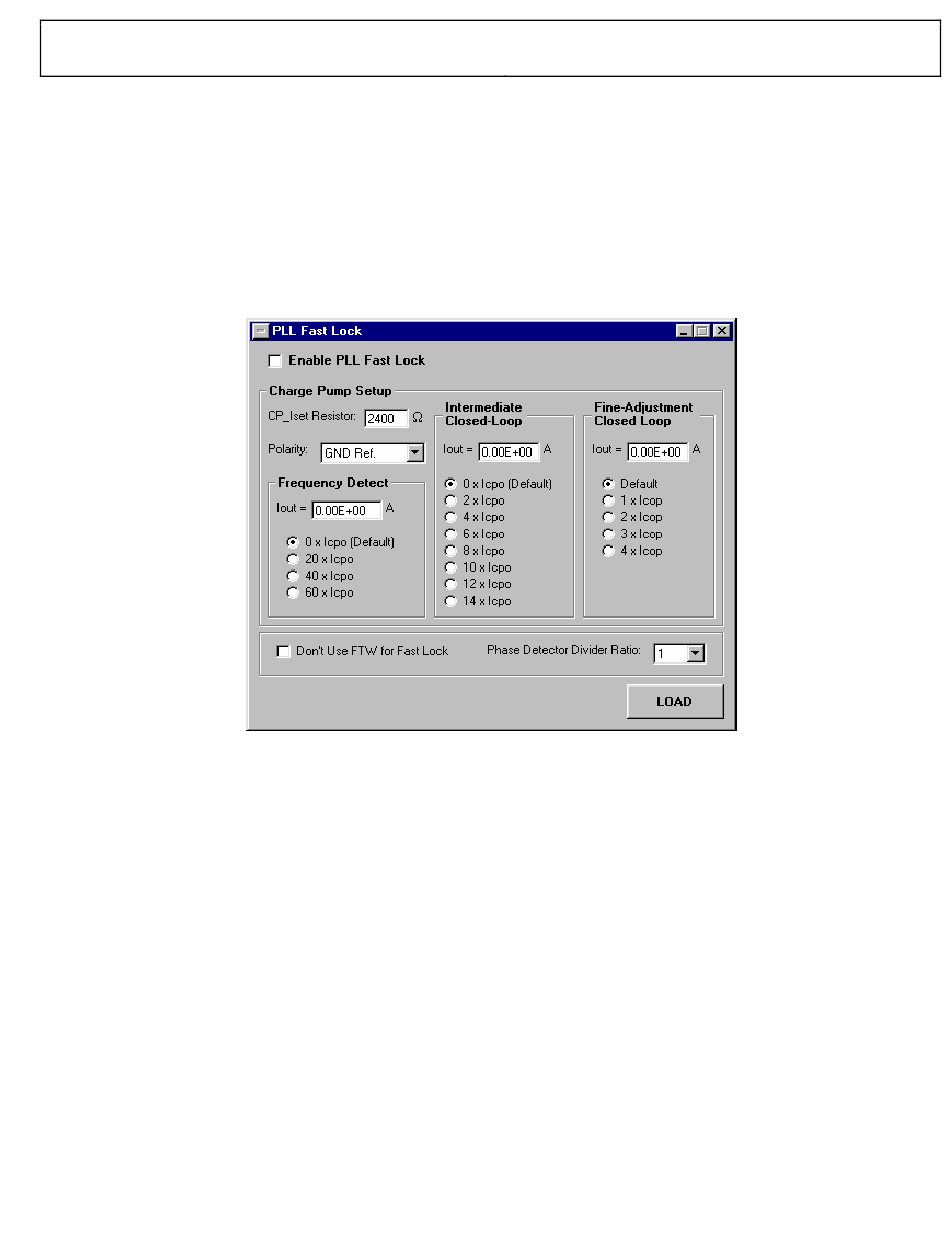

Figure 10. PLL Fast Lock Window

Rev. 0 | Page 7 of 12
