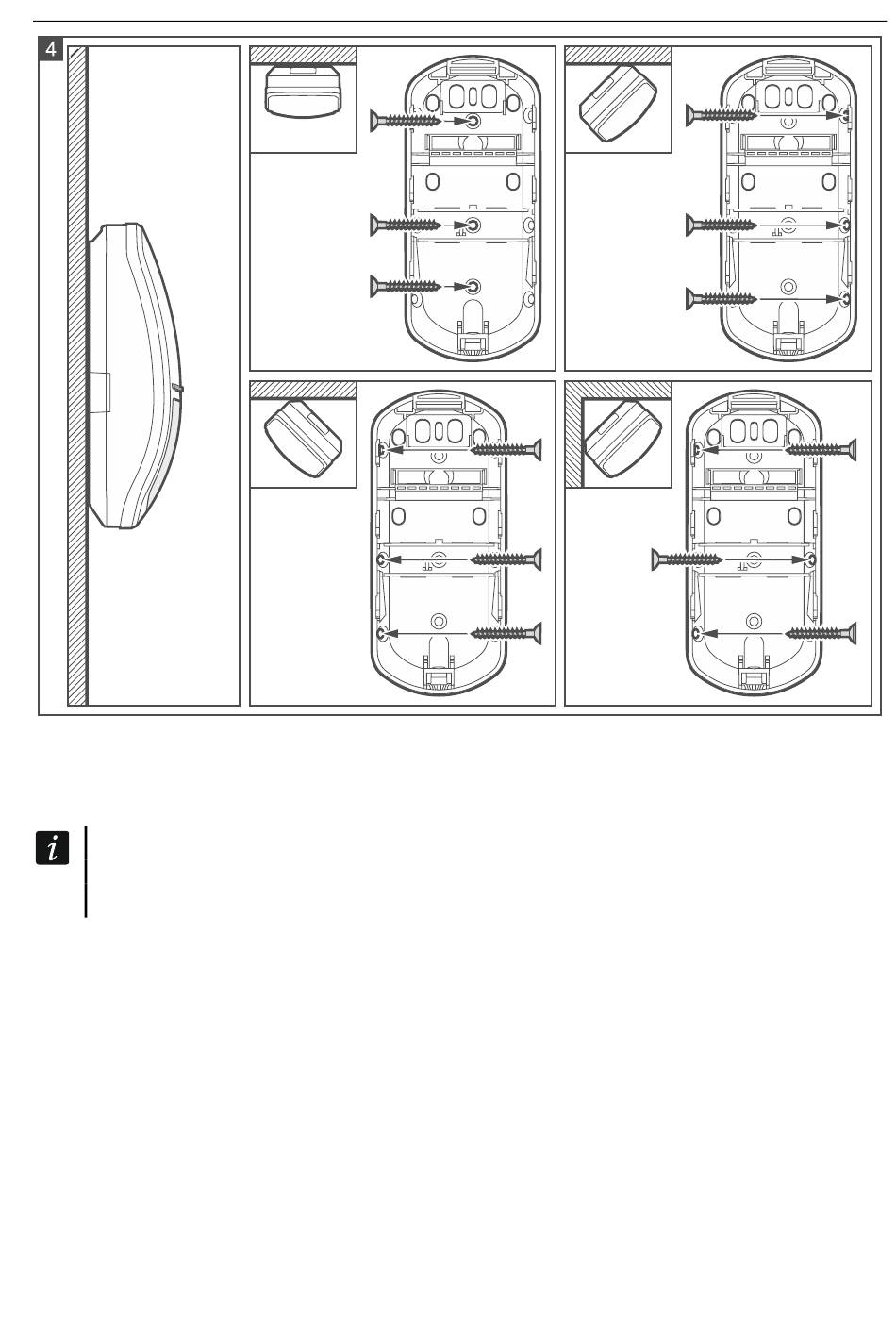

10. Secure the enclosure base to the wall (Fig. 4) or the bracket fastened with screws to the
wall or ceiling (Fig. 5). The wall plugs (anchors) delivered with the device are intended for
concrete, brick, etc. For other types of surface (drywall, styrofoam), use the appropriately
selected wall plugs.
If the detector is to comply with the EN50131-2-2 requirements for Grade 2, do not
install it on the mounting bracket (if installed on the bracket, the detector will comply
with the standard requirements for Grade 1).
APD-200 7
