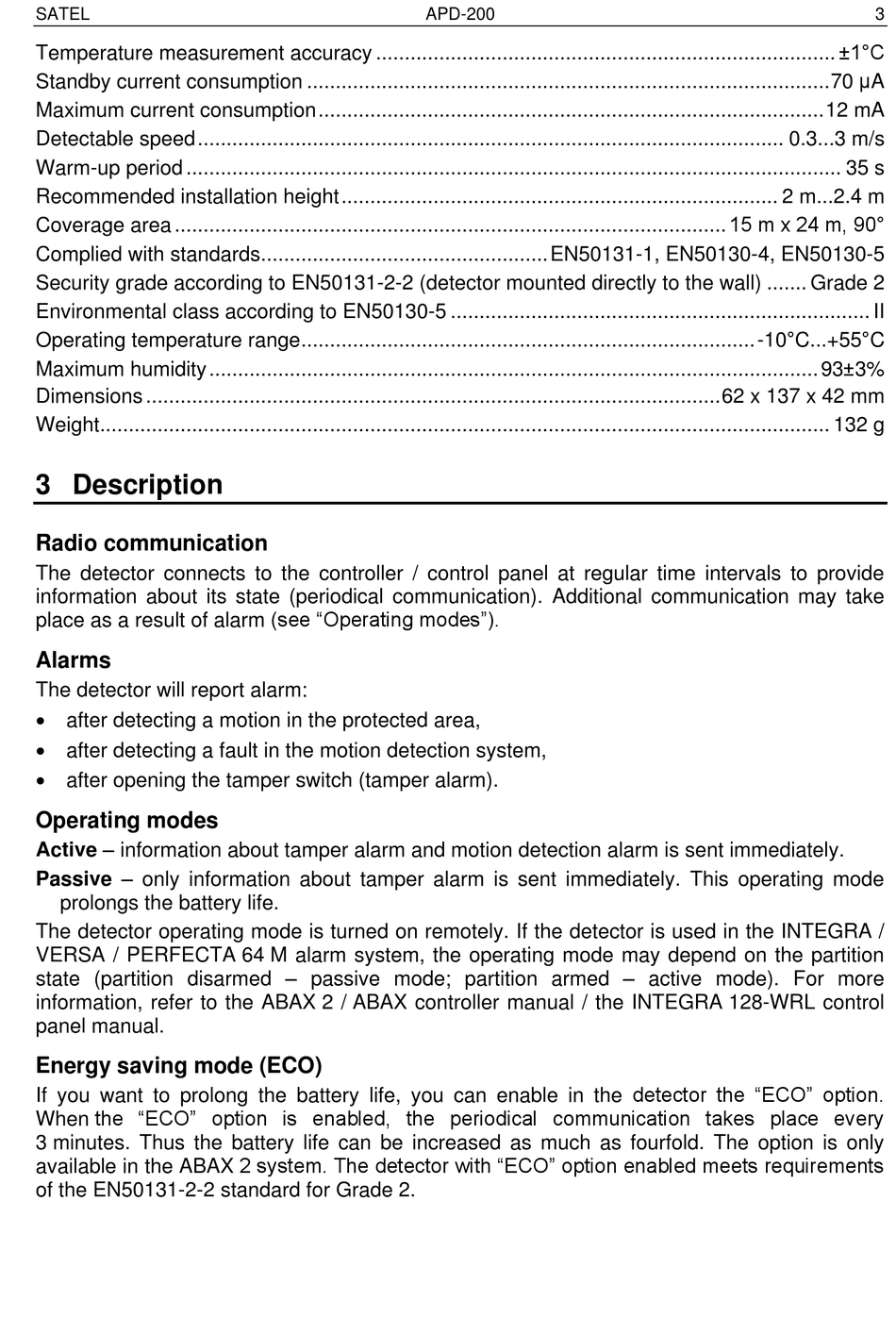

Satel ABAX 2 APD-200 Manual page 5

SATEL APD-200 3
Temperature measurement accuracy ................................................................................ ±1°C
Standby current consumption ........................................................................................... 70 µA
Maximum current consumption ........................................................................................ 12 mA
Detectable speed ...................................................................................................... 0.3...3 m/s
Warm-up period .................................................................................................................. 35 s
Recommended installation height ............................................................................ 2 m...2.4 m
Coverage area ................................................................................................ 15 m x 24 m, 90°
Complied with standards .................................................. EN50131-1, EN50130-4, EN50130-5
Security grade according to EN50131-2-2 (detector mounted directly to the wall) ....... Grade 2
Environmental class according to EN50130-5 ......................................................................... II
Operating temperature range ............................................................................... -10°C...+55°C
Maximum humidity .......................................................................................................... 93±3%
Dimensions .................................................................................................... 62 x 137 x 42 mm
Weight ............................................................................................................................... 132 g
3 Description
Radio communication
The detector connects to the controller / control panel at regular time intervals to provide
information about its state (periodical communication). Additional communication may take
place as a result of alarm (see "Operating modes").
Alarms
The detector will report alarm:
 after detecting a motion in the protected area,
 after detecting a fault in the motion detection system,
 after opening the tamper switch (tamper alarm).
Operating modes
Active – information about tamper alarm and motion detection alarm is sent immediately.
Passive – only information about tamper alarm is sent immediately. This operating mode
prolongs the battery life.
The detector operating mode is turned on remotely. If the detector is used in the INTEGRA /
VERSA / PERFECTA 64 M alarm system, the operating mode may depend on the partition
state (partition disarmed – passive mode; partition armed – active mode). For more
information, refer to the ABAX 2 / ABAX controller manual / the INTEGRA 128-WRL control
panel manual.
Energy saving mode (ECO)
If you want to prolong the battery life, you can enable in the detector the "ECO" option.
When the "ECO" option is enabled, the periodical communication takes place every
3 minutes. Thus the battery life can be increased as much as fourfold. The option is only
available in the ABAX 2 system. The detector with "ECO" option enabled meets requirements
of the EN50131-2-2 standard for Grade 2.
