- Page 1 ADD-200 Wireless outdoor dusk and temperature detector Firmware version 1.00 add-200_en 09/20 SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND tel. +48 58 320 94 00 www.satel.eu...
- Page 2 The rating plate of the device is located on the enclosure base. SATEL aims to continually improve the quality of its products, which may result in changes in their technical specifications and software. Current information about the changes being introduced is available on our website.
- Page 3 CONTENTS Features ........................... 2 Description ........................2 Radio communication ....................... 2 Dusk sensor ........................2 Temperature sensor ......................3 Energy saving mode (ECO) ....................4 Test mode ......................... 4 LED........................... 4 Battery status control ......................4 Electronics board ......................4 Installation ........................

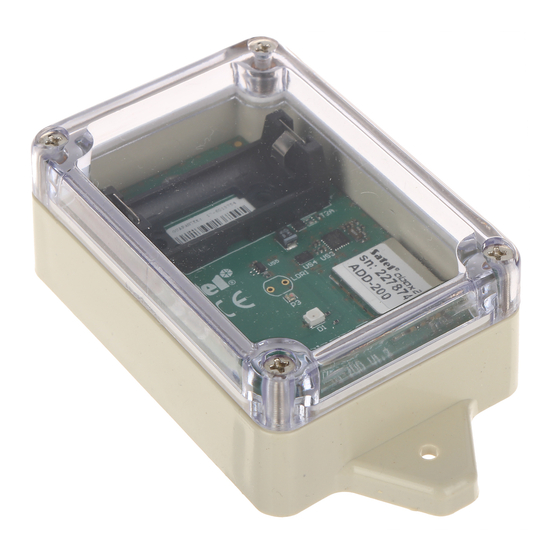

- Page 4 ADD-200 SATEL The ADD-200 detector detects changes of light intensity (dusk sensor) as well as changes of temperature (temperature sensor). It is designed to work within the ABAX 2 two-way wireless system. The detector is supported by: ACU-220 / ACU-280 controller, ...
- Page 5 SATEL ADD-200 Light intensity Detection threshold Turning on [P Turning off [P 2 lx 3 lx 4 lx 5 lx 6 lx 8 lx 8 lx 10 lx 10 lx 13 lx 12 lx 15 lx 14 lx 18 lx...
- Page 6 ADD-200 SATEL Energy saving mode (ECO) If you want to prolong the battery life, you can enable in the detector the “ECO” option. When the “ECO” option is enabled, the periodical communication takes place every 3 minutes. This can increase the battery life by as much as four times.
- Page 7 SATEL ADD-200 There is a danger of battery explosion when using a different battery than recommended by the manufacturer, or handling the battery improperly. Be particularly careful during installation and replacement of the battery. The manufacturer is not liable for the consequences of incorrect installation of the battery.
- Page 8 ADD-200 SATEL 7. Configure the detector settings (sensitivity of dusk sensor [detection threshold], temperature threshold parameters [threshold type: high / low, temperature value and tolerance], etc. – see ABAX 2 controller manual). 8. Start the test mode (see ABAX 2 controller manual).
