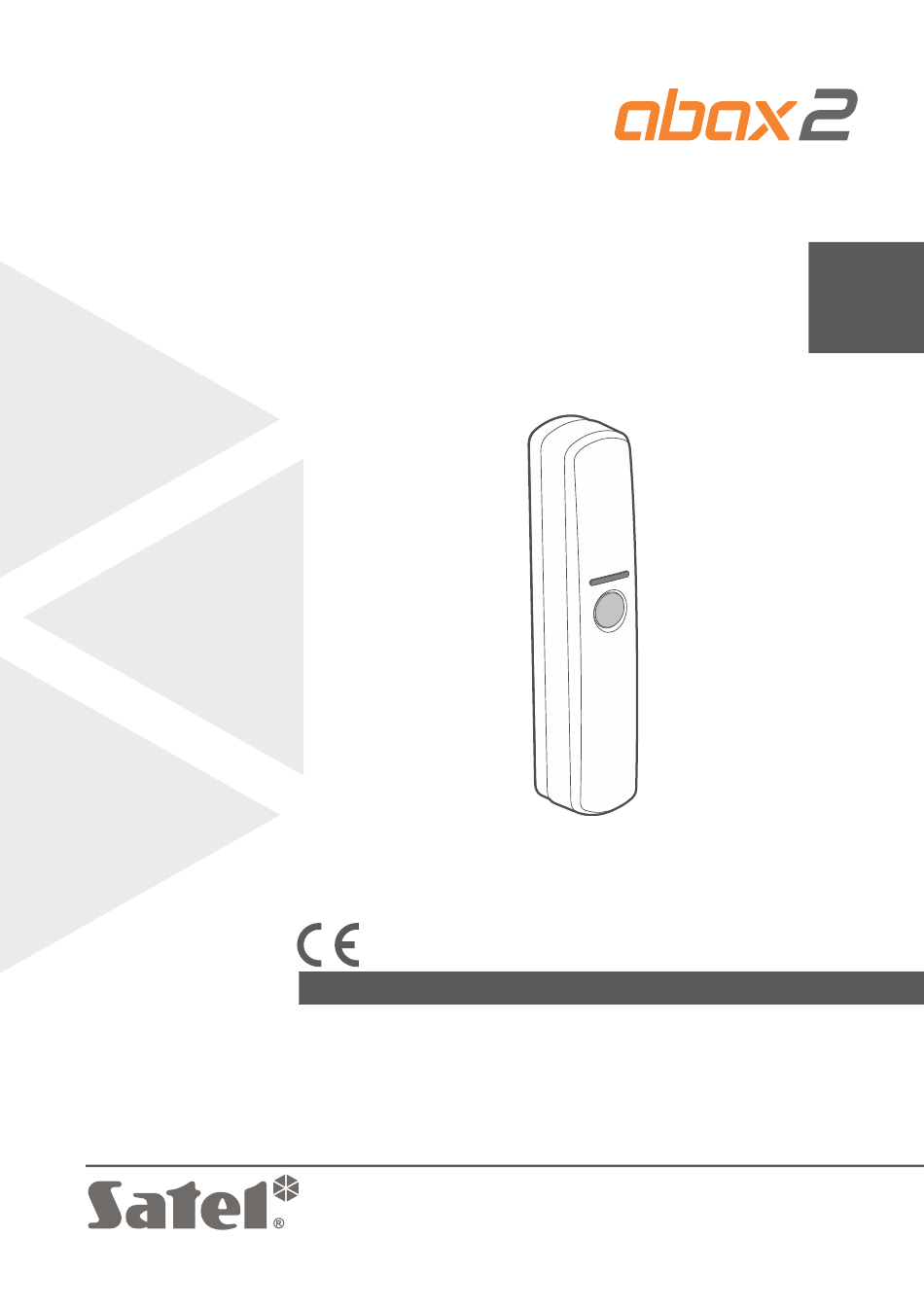

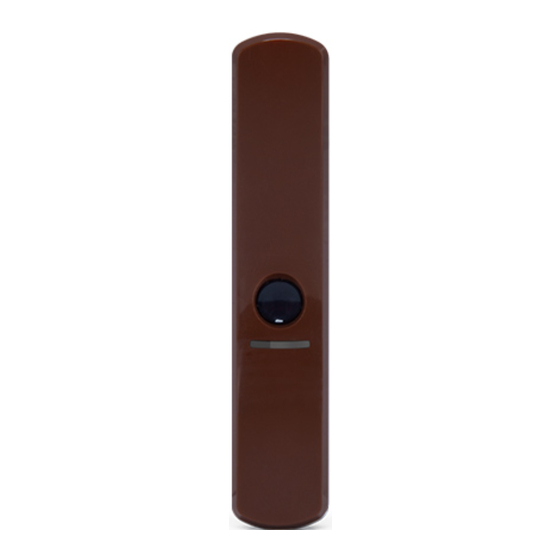

- Page 1 Wireless curtain detector ACD-220 Firmware version 1.00 acd-220_en 02/23 SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND tel. +48 58 320 94 00 www.satel.pl...
- Page 2 13 August 2005). The device meets the technical regulations of the Eurasian Customs Union. SATEL aims to continually improve the quality of its products, which may result in changes in their technical specifications and software. Current information about the changes being introduced is available on our website.
- Page 3 CONTENTS Features ........................... 2 Description ........................2 Radio communication ....................... 2 Alarms ..........................2 Operating modes ......................2 Energy saving mode (ECO) ....................3 Test mode ......................... 3 LED........................... 3 Supervision of motion detection system ................3 Battery status control ......................3 Electronics board ......................
- Page 4 Adjustable detection sensitivity. Digital motion detection algorithm. Digital temperature compensation. Custom-designed lens for SATEL’s short-range curtain detectors. Encrypted two-way radio communication in the 868 MHz /915 MHz frequency band (AES standard). Transmission channel diversity – 4 channels for automatic selection of the one that will enable transmission without interference with other signals in the 868 MHz /915 MHz frequency band.
- Page 5 SATEL ACD-220 The detector operating mode is enabled remotely. If the detector is used in the INTEGRA / VERSA / PERFECTA 64 M alarm system, the operating mode may depend on the partition state (partition disarmed – passive mode; partition armed – active mode). For more information, refer to the ABAX 2 controller manual.
- Page 6 ACD-220 SATEL 4 Selecting a mounting location Do not install the detector outdoors (A). Do not point the detector towards heat sources (B), air conditioners (C) or fans (D). Install the detector in a place where the expected direction of the intruder movement will be across the coverage pattern (Fig.
- Page 7 SATEL ACD-220 1. Remove the detector cover (Fig. 3). The enclosure opening tool, shown in the illustration, is included in the detector delivery set. 2. Insert the battery and add the detector to the wireless system (see the ABAX 2 controller manual).
- Page 8 ACD-220 SATEL 6 Specifications Operating frequency band ........ 868,0 MHz ÷ 868,6 MHz / 915 MHz – 928 MHz Radio communication range (in open area) ACU-220 ....................... up to 2000 m ACU-280 ....................... up to 1200 m Battery ........................CR123A 3 V Battery life expectancy ..................
