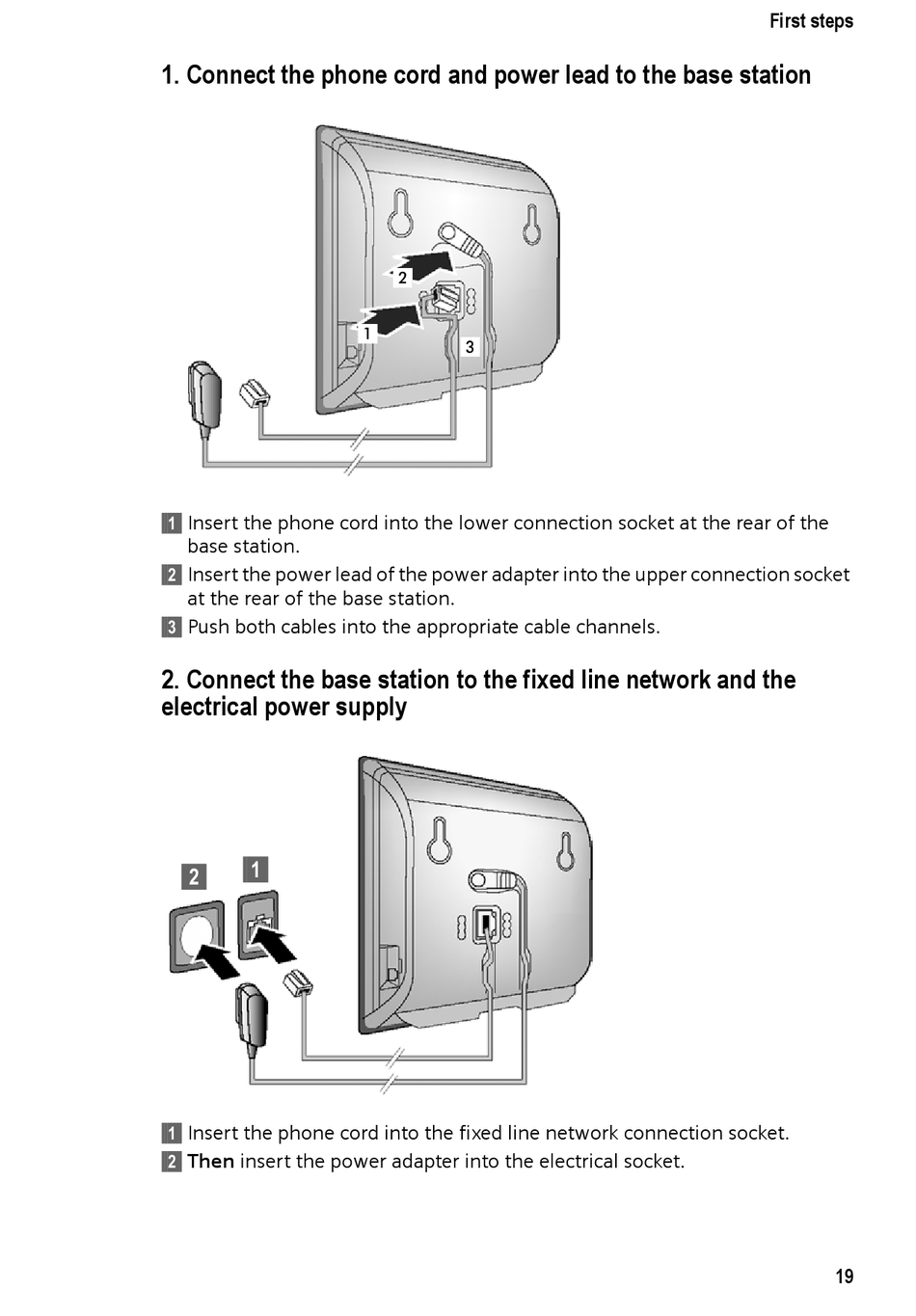

1. Connect the phone cord and power lead to the base station

Insert the phone cord into the lower connection socket at the rear of the
§§1§§
base station.
Insert the power lead of the power adapter into the upper connection socket
§§2§§
at the rear of the base station.
Push both cables into the appropriate cable channels.
§§3§§
2. Connect the base station to the fixed line network and the
electrical power supply
§§1§§
§§2§§
Insert the phone cord into the fixed line network connection socket.
§§1§§
Then insert the power adapter into the electrical socket.
§§2§§
2
1
3
First steps
19
