INSTALLATION AND OPERATION MANUAL NW3/NW4

5.3 NW3 and NW4 Commercial Grade Electrical Connections

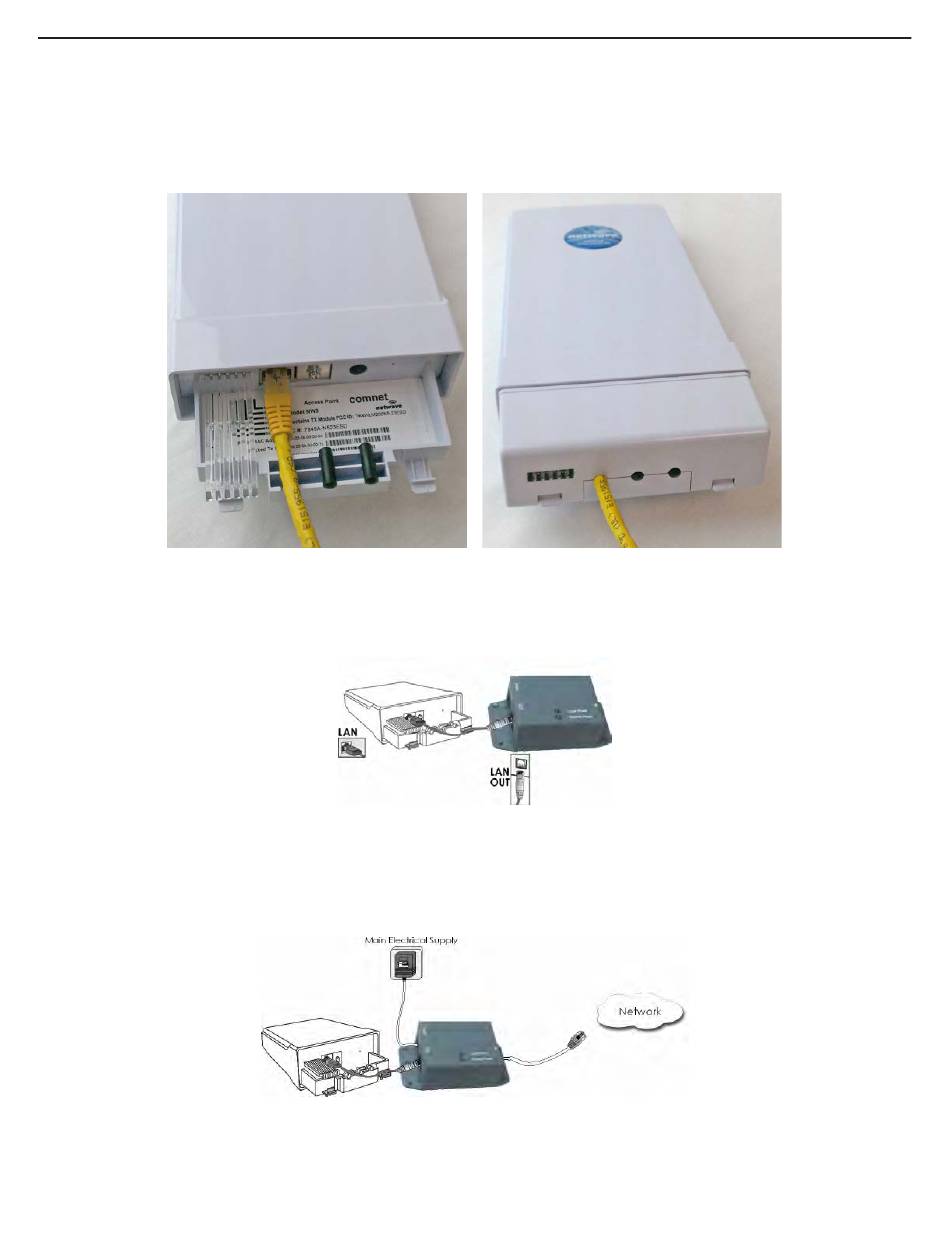

Remove the bottom cover and insert the RJ45 connectorized cable into the RJ45 jack. Next
re-install the bottom cover while keeping the two remaining black rubber pieces in place.
Connect one end of an RJ-45 Ethernet cable to the LAN OUT port of the Power Injection Module
(PIM) and the other end to LAN of the access point – as sown below.
NOTE Maximum length of the RJ-45 CAT5 cable is 90 meters.
Connect the RJ-45 Ethernet cable attached to the PIM to a network device, such as a switch or to
the configuration PC. Then plug the power adaptor to an AC power outlet and power plug into
the socket of the PIM – as shown in the diagram below.
NOTE: DC Passive PoE input range 12 to 24 VDC
TECH SUPPORT: 1.888.678.9427
INS_NW(3,4)_REV– 06/10/13 PAGE 9
