INSTALLATION AND OPERATION MANUAL
9.2.3 STATUS-Client Page RADIO Section
Wireless Mode
Remote AP SSID SSID for that the client will scan and connect to.
Noise Level
Signal Strength
TX Rate
RX Rate
TX CCQ
Frequency
MAC
Remote AP MAC MAC address of the connected AP radio
Channel Width
Security
Align Button
Refresh Button This will cause the data that feeds this page to be refreshed.
9.2.4 STATUS-Client Page LOCAL STATION STATICS Section
Received
Transmitted
TECH SUPPORT: 1.888.678.9427
Lists the operational mode for the radio. This can be set on the WIRELESS
SETTINGS page.
Receiver noise floor. A higher number indicates an operating environment with
more RF noise/congestion.
Received signal strength.
Radio connect rate for the transmit portion
Radio connect rate for the receive portion
Client Connection Quality. Given in % and provide the radio connection
quality with the connected AP with 100% being the best.
Frequency the client is using to connect to the AP
MAC address of the client radio
channel width the radio connection is using. This is automatically determined
based on the radio connection quality when 20/40M channel bandwidth is
selected on the WIRELESS SETTINGS page. Possible connections that may be
displayed are listed below starting with the best/fastest connection
HT40+
HT40
HT40-
HT20
HT10
Operating security. This can be selected on the WIRELESS SETTINGS page

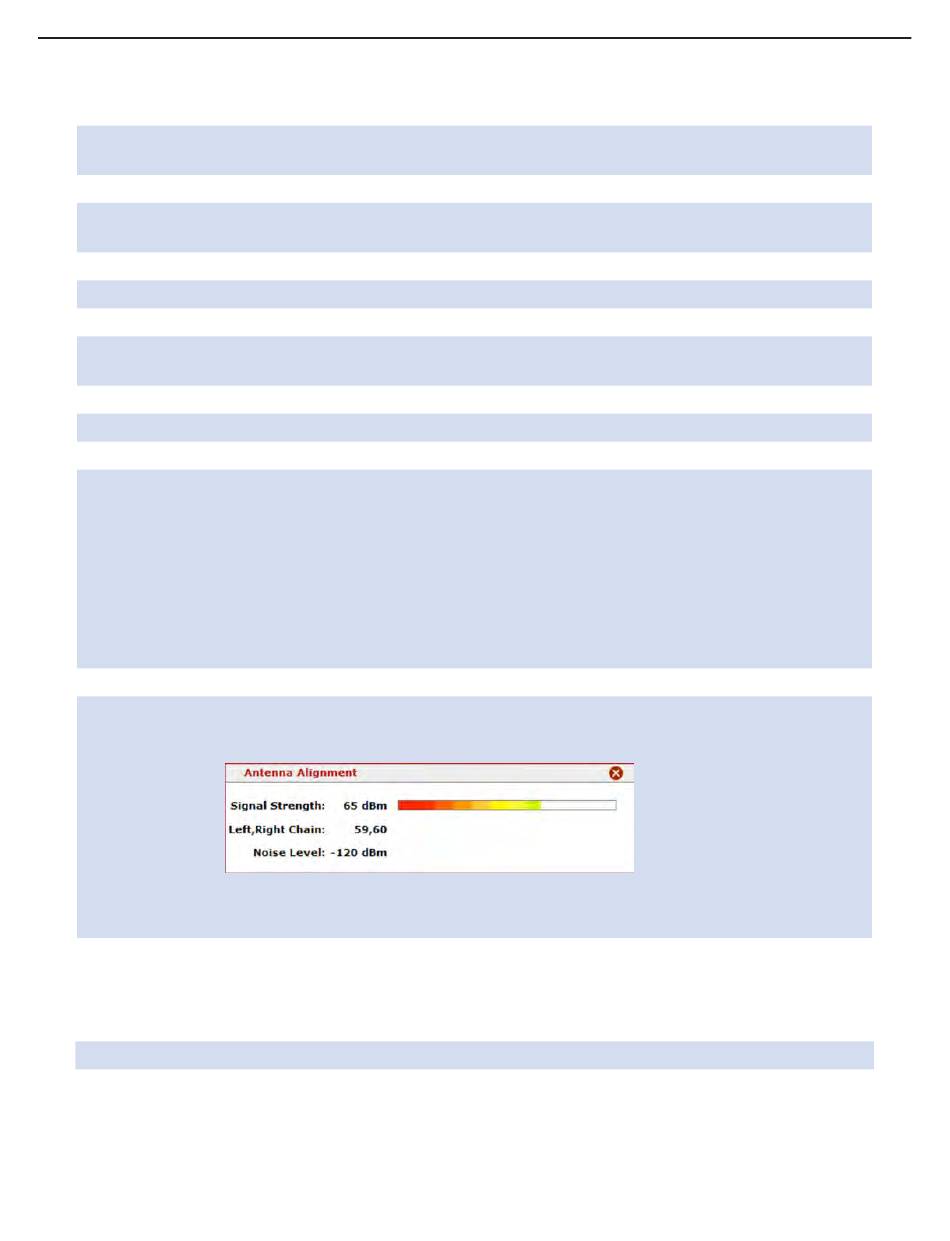

This will produce a pop up Antenna Alignment window (shown below) that will
render a graphical RSSI meter. This meter will present a scale between 0 and
100. This tool may be helpful when performing antenna alignments.
NOTE: RSSI values above 70 will begin to cause reduction of link throughput. RSSI
values greater than 75 will significantly reduce link throughput but RSSI values this
high are normally experienced during bench testing.
Shows Bytes, Packets, and Errors received
Shows Bytes, Packets, and Errors transmitted
NW3/NW4
INS_NW(3,4)_REV– 06/10/13 PAGE 18
