9.0 Detailed Configuration

9.1 STATUS Page – Access Point

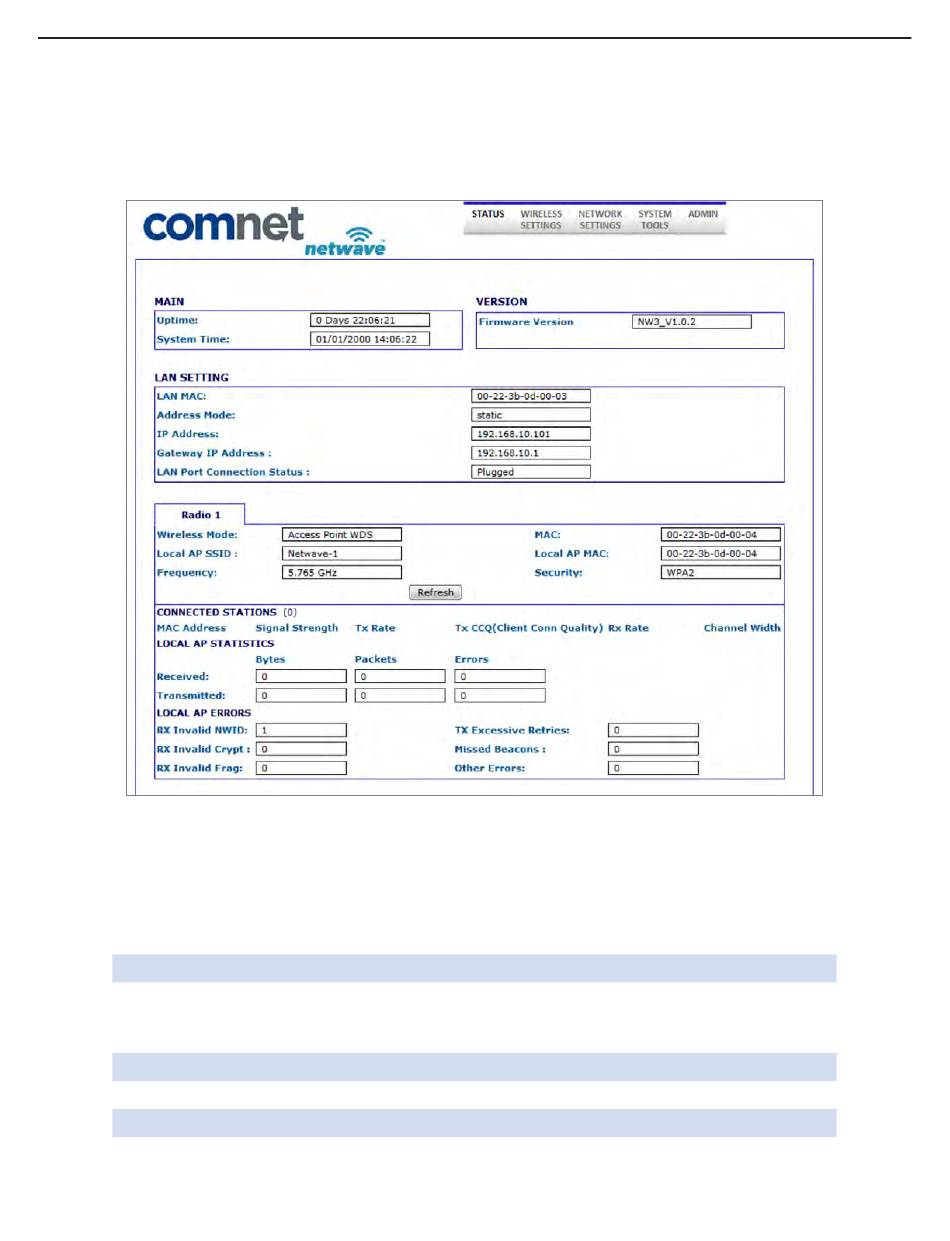

9.1.1 STATUS_AP Page MAIN Section
This section will list the unit uptime as well as the system time which can be set on the SYSTEM
TOOLS page.
9.1.2 STATUS_AP Page LAN SETTING Section
LAN MAC
Address Mode
IP Address
Gateway IP Address IP address for the network gateway
LAN Port Connection Shows connection status for the copper Ethernet port.
TECH SUPPORT: 1.888.678.9427
Lists the MAC address for the electrical copper Ethernet port
Shows the current setting for setting the IP address for the
embedded web server. This is configured on the NETWORK
SETTINGS page
Current IP address for the embedded web server
