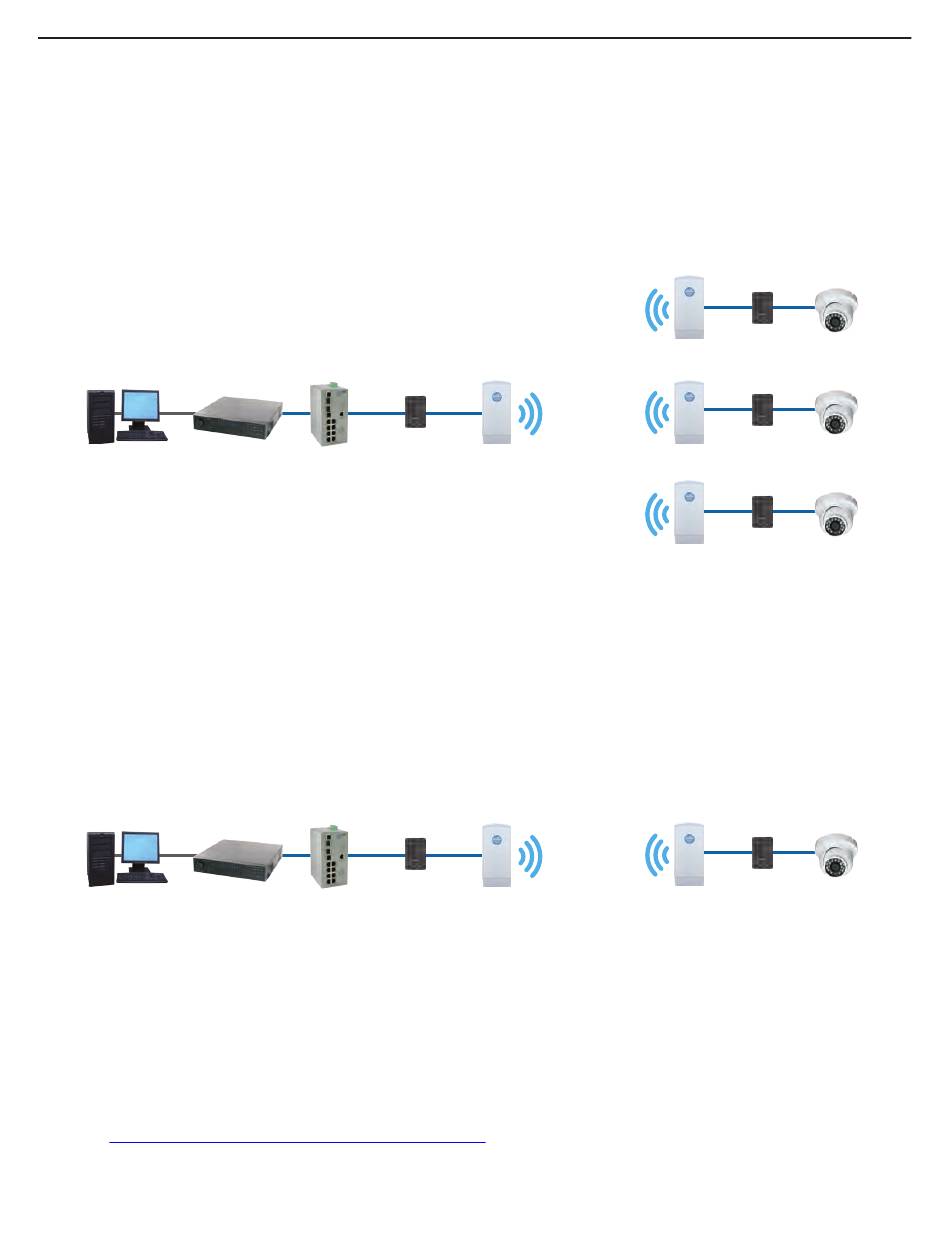

2.0 Point to Multi-Point – NW3 and NW4
These individual units allow the user to configure for either multipoint access point or client
operation. There is a MAC address lock feature that can be enabled through the user interface
but is not enabled by default. The NWx does support integrated directional and external omni
directional antennas. See the ComNet website for the latest information regarding antenna
support.
PC
3.0 Point to Point Systems – NWK3 and NWK4
Each point to point kit comes with a preconfigured access point and client. Both units will not only
be configured to operate on the same SSID but also MAC addressed locked to each other. This
simplifies installations as well as enabling higher operating EIRP for FCC versions. The NWKx does
support integrated directional and external omni directional antennas. See the ComNet website
for the latest information regarding antenna support.
PC

4.0 Cabling Requirements

» Shielded CAT 5 or better should be used for all out of plant Ethernet connection and should
be properly grounded through the PoE AC ground. Industrial grade shielded Ethernet cable is
recommended to help prevent ESD damage commonly experienced with outdoor installations.
Visit www.comnet.net/comnet-products/cables
TECH SUPPORT: 1.888.678.9427
Cat5 Cable
Passive
Power
DVR CNGE2FE8MS
Injector
Managed
Switch
Cat5 Cable
Passive
Power
DVR CNGE2FE8MS
Injector
Managed
Switch
NW3
(Access Point)
NWK3
(Access Point)
NW3/NW4
Passive
Power IP
NW3
(Client)
Injector Camera
Passive
Power IP
NW3
(Client)
Injector Camera
Passive
Power IP
NW3
(Client)
Injector Camera
Passive
Power IP
NWK3
Injector Camera
(Client)
