Quick start user Guide
CommERCIAl WIRElESS EthERNEt
thank you for purchasing Netwave
walk you through installation.
this guide applies to the following models:

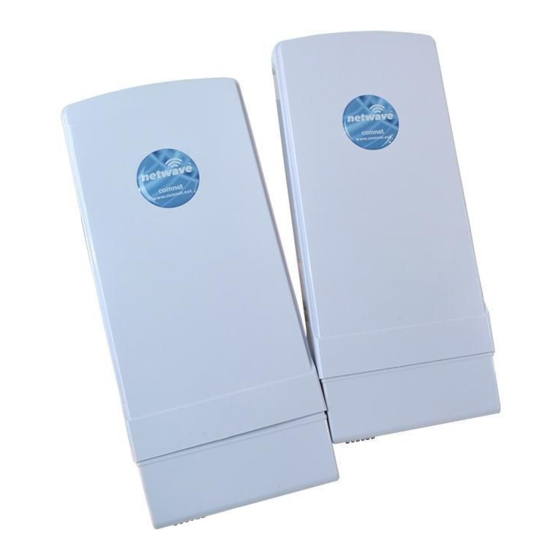

NW3: Commercial multipoint, FCC Version, User Configurable
NW4: Commercial multipoint, EtSI Version, User Configurable
NWK3: Commercial Point to Point Kit, FCC Version (Includes NWK3_AP and NWK3_Cl)
NWK4: Commercial Point to Point Kit, EtSI Version (Includes NWK4_AP and NWK4_Cl)
An easy to read lED array displays unit operational status along with received signal
strength ensuring optimal installation and operation. See Figure 2 on Page 2 for lED
Indicator explanations.
See Figure 3 on Page 3 for mounting instructions.
from ComNet. this quick start guide is designed to
™
INS_NW3_NW4_QS_REV– 04/23/13 PAGE 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Comnet netwave NW3
 Series Installation And Operation Manual](https://static-data2.manualslib.com/product-images/ee5/992441/60x60/comnet-clfe4-1sms-poe-c-u-series-network-router.jpg)
Summary of Contents for Comnet netwave NW3
- Page 1 Quick start user Guide CommERCIAl WIRElESS EthERNEt thank you for purchasing Netwave from ComNet. this quick start guide is designed to ™ this manual serves the following walk you through installation. comNet Model Numbers: this guide applies to the following models:...
- Page 2 FIGURE 2 – statUs LED INDIcatIoNs ViSUAL CUe iNDiCATiON SolID GREEN Power is supplied to the NW3/NW4 POweR No power is supplied to the NW3/NW4 SOLiD GReeN Ethernet connection is established eTHeRNeT LiNK FLASH GReeN Ethernet connection is established and there is activity present...
- Page 3 Quick start user Guide NW3/NW4 FIGURE 3 – poLE MoUNt INstRUctIoNs step 1. unpack the two (2) cable ties from the box. step 2. loop each cable tie through the mounting bracket hole at the top and bottom. Wrap them around the pole and tighten the cable ties to secure the unit to the pole.
-
Page 4: Installation Requirements
8 select the WIreless settINgs tab and set: • Wireless mode – Set to AP or Client (Only need to do this on the NW3 and NW4 models) • Country code – Only required if setting up the NW4 and NWK4 (ETSI) models Note: It is the user’s responsibility to ensure that the correct country is chosen. - Page 5 Note: NW3 and NW4 multipoint nodes will need to have the Wireless mode set to either ap or Client (default is Client). and the Ip addresses will need to be all set to different addresses (default address is 192.168.10.101). once this is done, all the clients will connect to the multipoint ap with all other setting kept at default.
- Page 6 Quick start user Guide NW3/NW4 DEFaULt coNFIGURatIoNs Ip address of Web server 192.168.10.100 for NWKx_ap and 192.168.10.101 for all other models LaN Mode for Web server static addressing Web server User ID admin Web server password admin Web server Guest User ID...
- Page 7 Quick start user Guide NW3/NW4 aGENcY coMpLIaNcE Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: •...
- Page 8 8 turNberry Park road | GildersoMe | Morley | leeds, uk ls27 7le t: +44 (0)113 307 6400 | F: +44 (0)113 253 7462 | iNFo-euroPe@coMNet.Net © 2013 Communications Networks Corporation. All Rights Reserved. “ComNet” and the “ComNet logo” are registered trademarks of Communication Networks, llC. INS_NW3_NW4_QS_REV– 04/23/13 PAGE 8...
