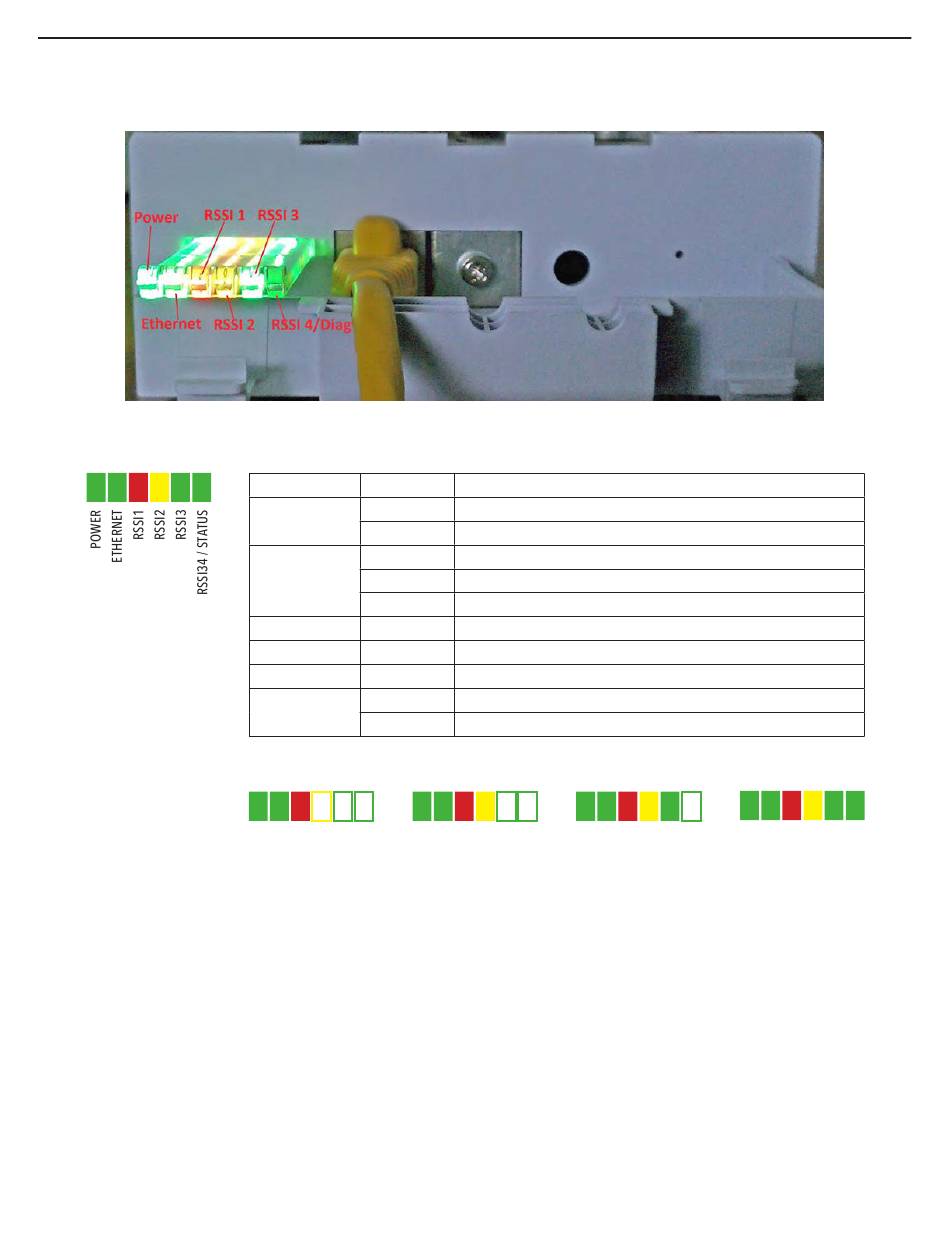

5.2 NW3 and NW4 Commercial Indicating LED Details

SIGNAL STRENGTH:
TECH SUPPORT: 1.888.678.9427
LED VISUAL CUE
SOLID GREEN
POWER
OFF
SOLID GREEN
ETHERNET LINK FLASH GREEN
OFF
RSSI1 SOLID RED
RSSI2 SOLID YELLOW
RSSI3 SOLID GREEN
FLASH GREEN
RSSI4 / STATUS
SOLID GREEN
MINIMUM SIGNAL
INDICATION
Power is supplied to the NW3/NW4
No power is supplied to the NW3/NW4
Ethernet connection is established
Ethernet connection is established and there is activity present
No Ethernet connection established
Poor signal strength
Acceptable signal strength
Good signal strength
Unit is booting up
Excellent signal strength
NW3/NW4
MAXIMUM SIGNAL
