Specifications

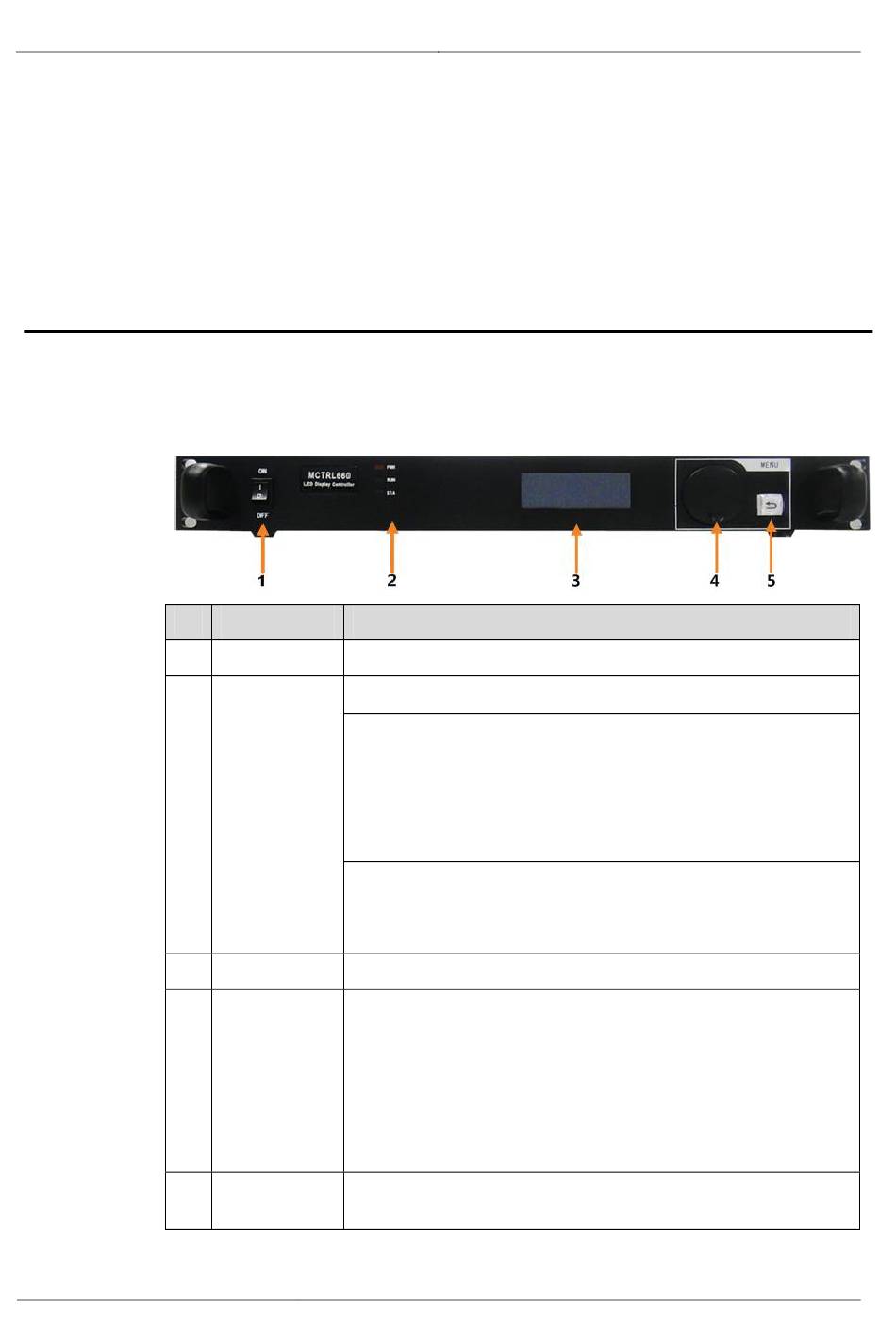

3.1 Front Panel

No.
1
2
3
4
5
www.novastar.tech
Name Description
Power switch ON/OFF
Indicators PWR: Power indicator
RUN : Device operating indicator. Working status:

Flashing slowly: Video input unavailable
 Flashing normally: Video input available
 Flashing rapidly: The screen is displaying startup image.

Breathing: Ethernet port redundancy has taken effect.
STA : Device operating indicator. Working status:

Always on: The device is operating normally.
 Off: The device is not operating, or operating abnormally.
LCD LCD operation panel
Knob Operation instructions:
 On the home screen, press the knob to enter the menu page.
 On the menu page, press the knob to select the current menu
or enter the menu. Rotate the knob to select a menu item or
adjust a menu parameter.
 Hold down the knob and BACK button simultaneously for 5
seconds to lock or unlock all the buttons.
BACK Press to go back to the previous menu or exit the current
operation.
