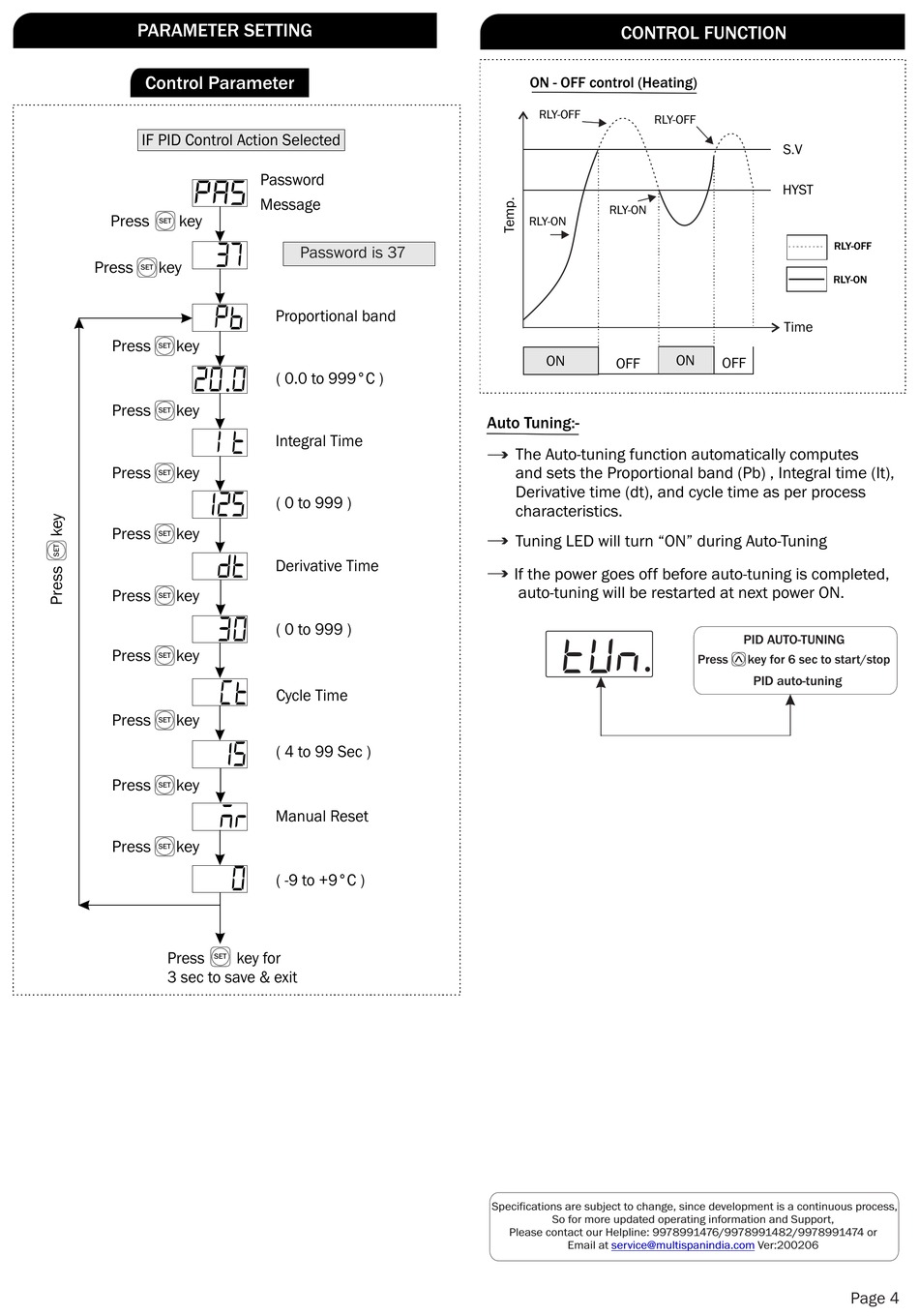

MULTISPAN TC-49P Quick Start Manual page 4

PARAMETER SETTING
Control Parameter
IF PID Control Action Selected
Password
pas
Message
Press key
SET
37
Press key
SET
PB
Press key
SET
20 . 0
Press key
SET
IT
Press key
SET
125
Press key
SET
DT
Press key
SET
30
Press key
SET
CT
Press key
SET
15
Press key
SET
MR
Press key
SET
0
Press key for
SET
3 sec to save & exit
Password is 37
Proportional band
( 0.0 to 999°C )
Integral Time
( 0 to 999 )
Derivative Time
( 0 to 999 )
Cycle Time
( 4 to 99 Sec )
Manual Reset
( -9 to +9°C )
CONTROL FUNCTION
ON - OFF control (Heating)
RLY-OFF
RLY-OFF
RLY-ON
RLY-ON
ON
OFF
Auto Tuning:-
The Auto-tuning function automatically computes
and sets the Proportional band (Pb) , Integral time (It),
Derivative time (dt), and cycle time as per process
characteristics.
Tuning LED will turn "ON" during Auto-Tuning
If the power goes off before auto-tuning is completed,
auto-tuning will be restarted at next power ON.
Tun
Specifications are subject to change, since development is a continuous process,
So for more updated operating information and Support,
Please contact our Helpline: 9978991476/9978991482/9978991474 or
Email at service@multispanindia.com
S.V
HYST
RLY-OFF
RLY-ON
Time
ON
OFF
PID AUTO-TUNING
Press key for 6 sec to start/stop
PID auto-tuning
Ver:200206
