PV = Process Value
SV = Set Value

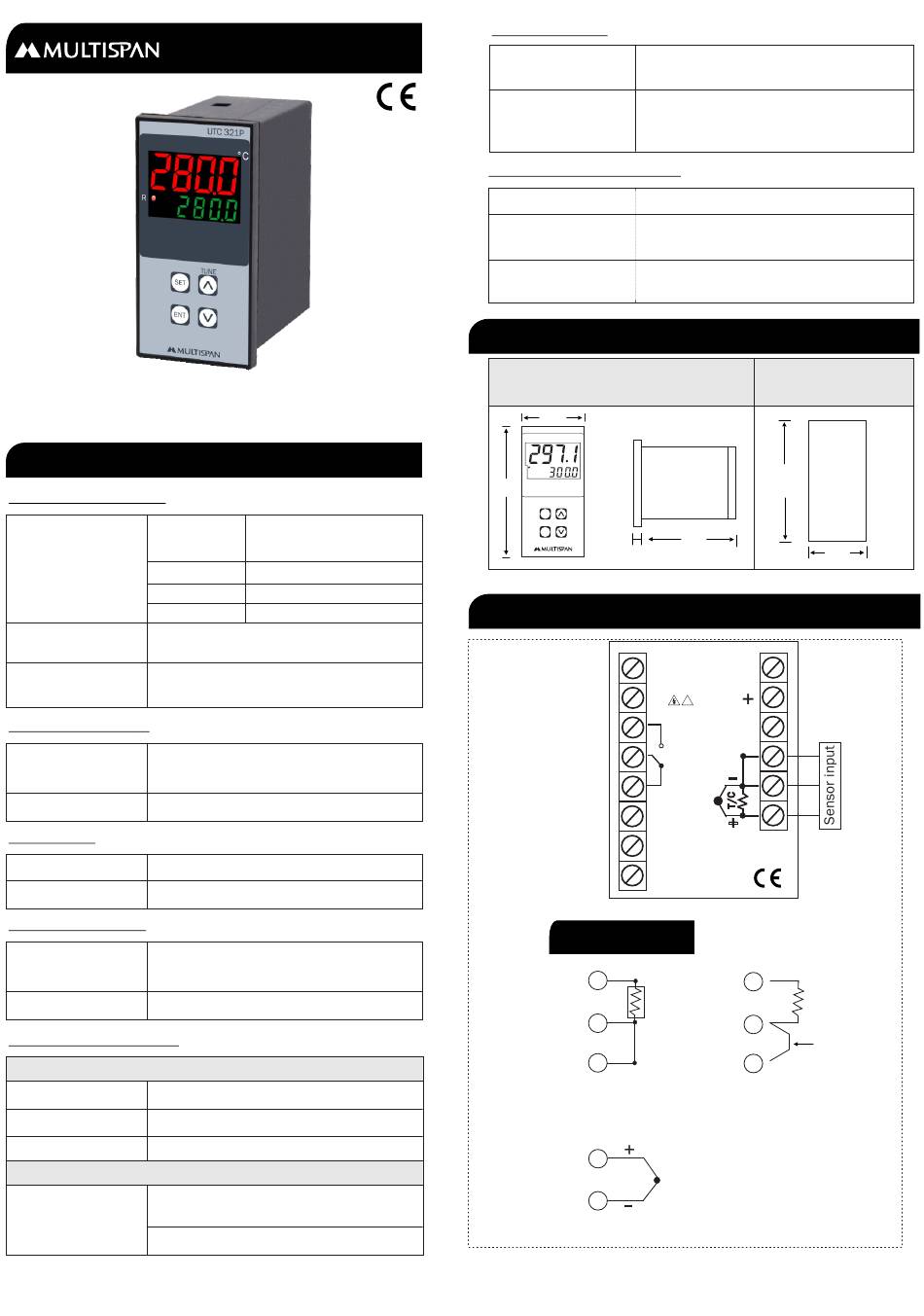

TECHNICAL SPECIFICATION
INPUT SPECIFICATION:
Input
Input Types
PT-100
PT.1
J,K,PT-100 = 1°C
Resolution
PT.1 = 0.1°C
±1% of FSD ± 1°C
Indication
Accuracy
(FSD:- Full Scale Deflection)
DISPLAY AND KEYS:
Upper: 4 digit, 7 segment, 0.56" Red
Display
Lower: 4 digit, 7 segment, 0.33" Green
Keys
SET, INC, DEC, ENT
DIMENSION:
Size
96 (H) x 48 (W) x 85 (D) mm
Panel Cutout
92 (H) x 44 (W) mm
CONTROL METHOD:
1) PID control with Auto-Tuning
Heating
2) ON-OFF Control
Cooling
ON-OFF Control
OUTPUT SPECIFICATION:
Relay Output
Relay
1 Nos
Relay Type
1C/O (NO-C-NC)
Rating
10A, 230V AC / 28V DC
SSR Drive Output
12V DC, 30mA DC
(On-Off condition)
Output Signal
Relay parallel to SSR

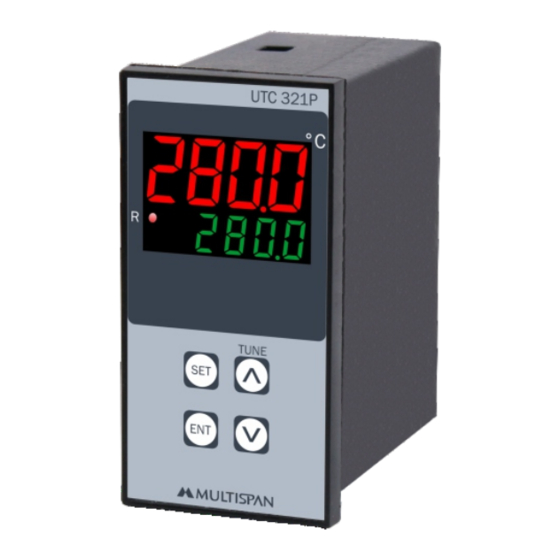

TEMPERATURE CONTROLLER
UTC-321P
Range
J
0 to 600°C,
K
0 to 1200°C,
-99 to 400°C,
-99.9 to 400.0°C,
POWER SUPPLY:
Supply
100 to 250V AC, 50-60Hz
Voltage
Power
Consuption
4VA @ 230V AC MAX
(VA Rating)
ENVIRONMENT CONDITION:
Operating Temp.
0°C to 55°C
UP to 95% RH
Relative Humidity
(non-condensing)
Protection Level
IP-65 (Front side) As per IS/IEC
(As per request)
60529 : 2001
MECHANICAL INSTALLATION
Outline Dimension (mm)
48
UTC321P
°
C
R
96
TUNE
SET
ENT
6
TERMINAL CONNECTION
L
N
R1
C
Sensor Input
1
2
3
3-Wire RTD
1
2
Thermocouple
Panel Cutout
Dimension (mm)
92
85
44
-
~
100
250V AC
S.S.R
50/60 Hz,4VA
!
NO
3
RTD
2
NC
1
1
2
Install jumper
when using
3
2 Wire RTD
2-Wire RTD
