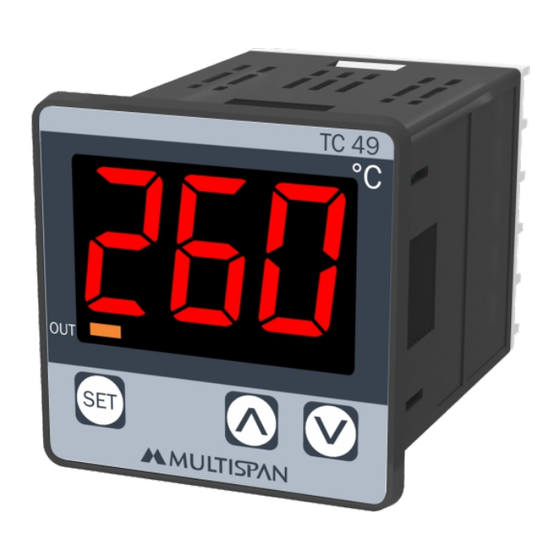

MULTISPAN TC-49 Quick Start Manual

TECHNICAL SPECIFICATION
INPUT SPECIFICATION:
Input
Input Types
Resolution
1°C
±1% of FSD ± 1°C
Indication
Accuracy (FSD:- Full Scale Deflection)
DISPLAY AND KEYS:
Display 3 digit, 7 segment, 0.8" RED
Keys SET, INC, DEC
DIMENSION:
Size (mm)
48 (H) x 48 (W) x 70 (D) mm
Panel Cutout 45 (H) x 45 (W) mm
CONTROL METHOD:
1) TP (Time Proportional)
Heating
2) ON-OFF control
OUTPUT SPECIFICATION:
Relay Output
Relay 1 Nos
Relay Type 1C/O (NO-C-NC)
Rating 10A, 230V AC / 28V DC
SSR Drive Output
12V DC, 30mA DC
Output Signal
(On-Off condition)
TEMPERATURE CONTROLLER
Range
J 0 to 600°C
K 0 to 999°C
POWER SUPPLY:
TC - 49
Supply
Voltage
Power
Consuption
(VA Rating)
ENVIRONMENT CONDITION:
Operating Temp.
Relative Humidity
Protection Level
(As per request)
Outline Dimension (mm)
48
OUT
SET
48
Sensor Input
Thermocouple
100 to 270V AC, 50-60Hz
4VA @ 230V AC MAX
0°C to 55°C
UP to 95% RH
(non-condensing)
IP-65 (Front side) As per IS/IEC
60529 : 2001
MECHANICAL INSTALLATION
TC 49
°
70
3
TERMINAL CONNECTION
100 ~
L
1
270V AC
50/60 HZ
4VA
!
2
N
Made
in
India
3
NC
C
4
www.multispanindia.com
R1
NO
5
6
7
Panel Cutout
Dimension (mm)
45
45
6
T/C
7
-
8
-
9
SSR
+
10
