MULTISPAN TC-19 Operating Manual

OPERATING MANUAL
TEMPERATURE CONTROLLER
TC-19

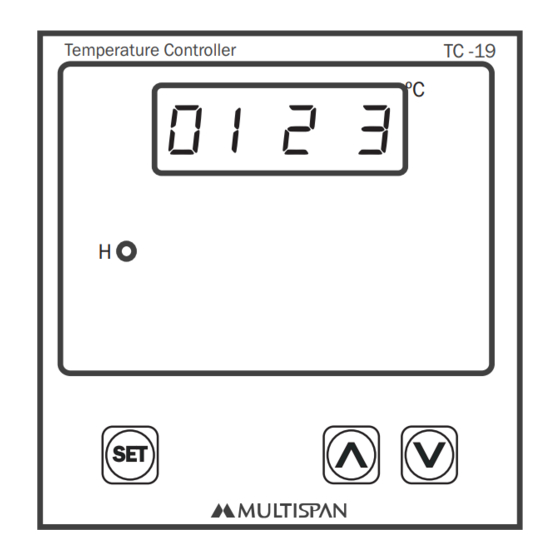

Temperature Controller
01 2 3
H
SET
Model : TC - 19 - J,K
(96 X 96 mm)
Technical Specification
1) MODEL : TC - 19 (Temperature Controller).
2) Display : 4 digit, single display, 7 segment LED.
3) Input : J ,K (factory set)
4) Range : J type : 0 - 400 C / 0 - 600 C (factory set).
k type : 0 - 1200 C.
Note :
1) Press key continuously along with
2) The set value is saved by releasing the
3) To show the SETPOINT, press
4) Auto out time is 15 SEC. without saving.
5) On normal powering instrument, below given display appears,
POWER ON
8 8 8 8 . . .
display for 2 sec
t C j display for 2 sec, according
to the input sensor programmed.
T P
display for 2 sec
5 0 Process Value
TC -19
ºC
° °
°
or
key momentarily.
Page - 1
Supply:
230 V AC
L N NO C
CONNECTION DIAGRAM
5) Relay status : LED indication for relay
status.
6) Controlling action : TP/ON-OFF
7) Output : 1 relay, 230V AC, 5A
8) Power Supply : 110V TO 250V AC,
key to set the SETPOINT.
key during setting procedure.
SET POINT SETTING
5 0 process value
press
2 0 0 on releasing SET key will store
the latest set value
process value
5 0
+
T/C
NC
50/60Hz (SMPS).
+ key to set SET point
