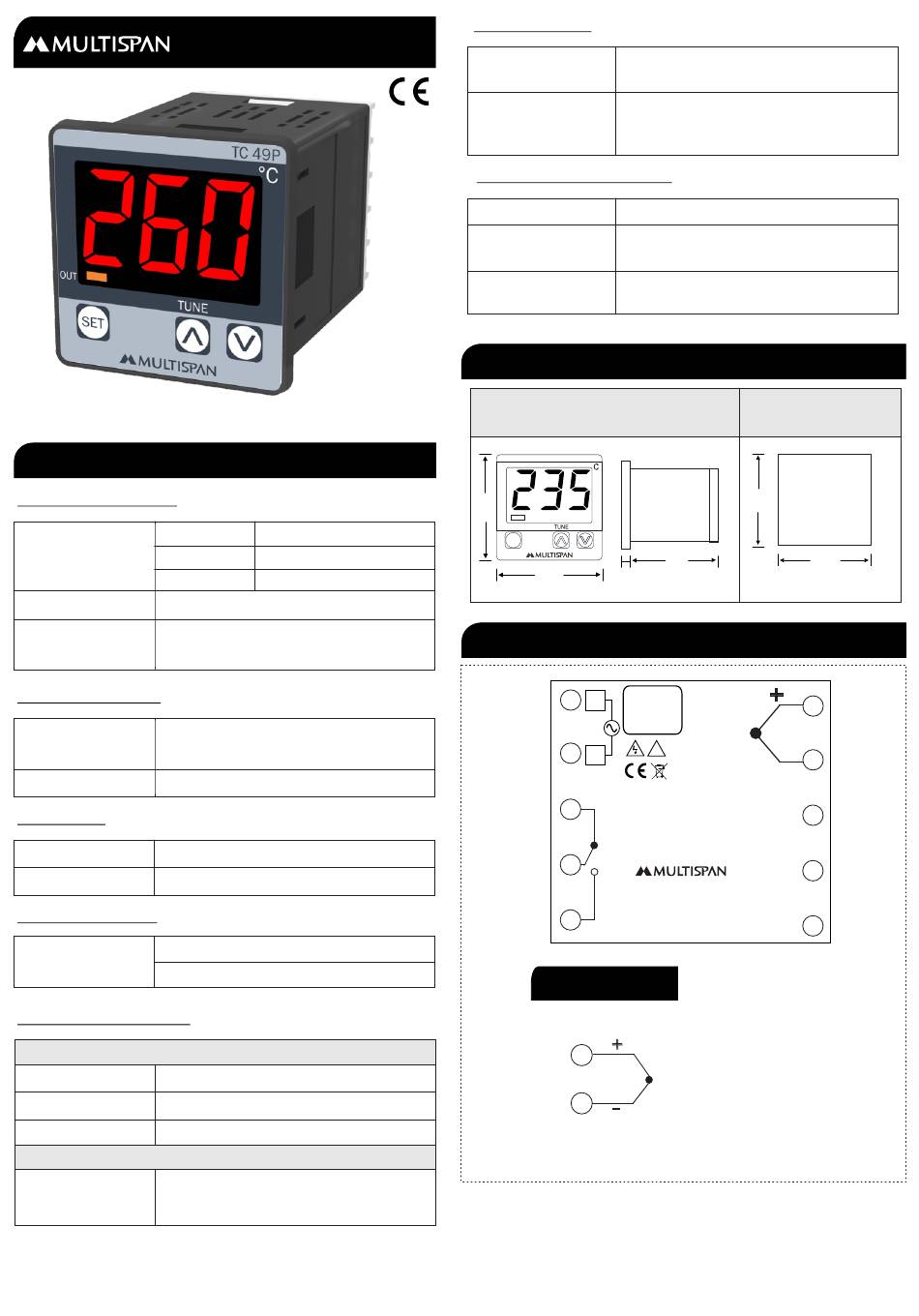

MULTISPAN TC-49P Quick Start Manual

TECHNICAL SPECIFICATION
INPUT SPECIFICATION:
Input
Input Types
Resolution 1°C
±1% of FSD ± 1°C
Indication
Accuracy
(FSD:- Full Scale Deflection)
DISPLAY AND KEYS:
Display 3 digit, 7 segment, 0.8" RED
Keys SET, INC, DEC
DIMENSION:
Size (mm)
48 (H) x 48 (W) x 70 (D) mm
Panel Cutout 45 (H) x 45 (W) mm
CONTROL METHOD:
1) PID control with Auto Tuning
Heating
2) ON-OFF control
OUTPUT SPECIFICATION:
Relay Output
Relay
1 Nos
Relay Type
1C/O (NO-C-NC)
Rating 10A, 230V AC / 28V DC
SSR Drive Output
12V DC, 30mA DC
Output Signal
(On-Off condition)

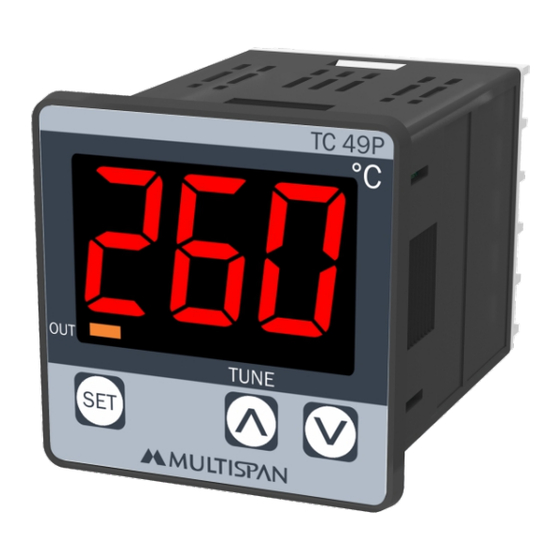

TEMPERATURE CONTROLLER
TC - 49P
Range
J 0 to 600°C
K 0 to 999°C
POWER SUPPLY:
Supply
100 to 270V AC, 50-60Hz
Voltage
Power
Consuption
4VA @ 230V AC MAX
(VA Rating)
ENVIRONMENT CONDITION:
Operating Temp. 0°C to 55°C
UP to 95% RH
Relative Humidity
(non-condensing)
Protection Level
IP-65 (Front side) As per IS/IEC
(As per request)
60529 : 2001
MECHANICAL INSTALLATION
Outline Dimension (mm)
TC 49P
°
48
OUT
SET
48 3
TERMINAL CONNECTION
100
L
1
270V AC
50/60 HZ
4VA
2
N
Made
in
India
3
NC
C
4
www.multispanindia.com
R1
NO
5
Sensor Input
6
7
Thermocouple
Panel Cutout
Dimension (mm)
45
70 45
~
6
T/C
!
7
-
8
-
9
SSR
+
10
