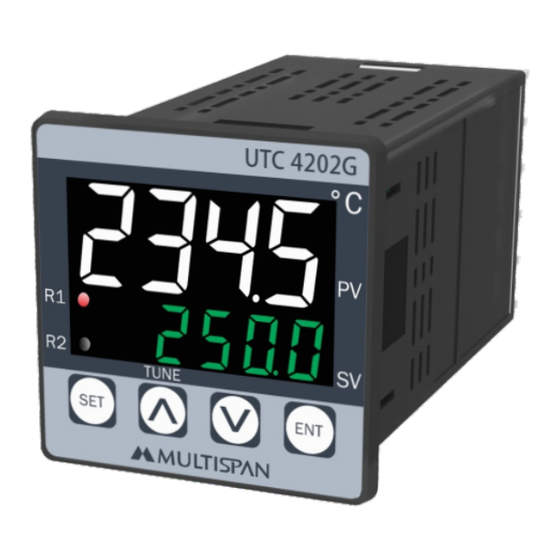

MULTISPAN UTC-4202G Manual

Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
PV = Process value
SV = Set Value
TECHNICAL SPECIFICATION
INPUT SPECIFICATION:
Input
J
J.1
K
Input Types
K.1
PT-100
PT.1
J,K,PT-100 = 1°C
Resolution
J.1,K.1,PT.1 = 0.1°C
Indication
±1% of FSD ± 1°C
Accuracy
DISPLAY AND KEYS:
Upper: 4 digit, 7 segment, 0.56"
Display
Lower: 4 digit, 7 segment, 0.33"
Keys
SET, INC, DEC, ENT
DIMENSION:
Size
48 (H) x 48 (W) x 95 (D) mm
Panel Cutout
45 (H) x 45 (W) mm
CONTROL METHOD:
1) PID control with Auto-Tuning
2) (TP) Time Proportional
Heating
3) ON-OFF control
1) BL.TP (Blower Time Proportional)
Cooling
2) ON-OFF control
High /Low /Absolute Low/ Inband
Alarm
/Absolute Outband/Outband/End Alarm
POWER SUPPLY
Supply voltage
100 to 270V AC, 50-60Hz
Power consumption
Approx 4VA @ 230V AC MAX
(VA RATING)
TEMPERATURE CONTROLLER
UTC - 4202G
Display Color:
Upper : White Or Red
Lower : Green
Range
0 to 600°C
0.0 to 400.0°C
0 to 1200°C
0.0 to 500.0°C
-50 to 400°C
-50.0 to 400.0°C
OUTPUT SPECIFICATION:
Relay Output
Relay
2 nos.
1 st Relay -1 C/O (NO-C-NC)
Relay Type
2 nd Relay (NO-C)
Rating
10A, 230V AC / 28 V DC
SSR Drive Output
12V DC, 30mA DC
Output Signal
(ON-OFF Condition)
Relay 1 Parallel to SSR
ENVIRONMENT CONDITION
Operating Temp.
0°C to 55°C
UP to 95% RH
Relative Humidity
(non-condensing)
Protection Level
IP-65 (Front side) As per IS/IEC
(As per request)
60529 : 2001
MECHANICAL INSTALLATION
Outline Dimension (mm)
UTC4202G
PV
48
R1
R2
SV
TUNE
SET
ENT
48
3
TERMINAL CONNECTION
L
1
~
N
2
Made in India
3
NC
SSR
C
4
R1
NO
www.multispanindia.com
5
Sensor Input
8
8
9
9
10
Thermocouple
3-Wire RTD
Panel Cutout
Dimension (mm)
45
95
45
8
T/C
7
9
-
RTD
10
-
NO
11
6
R2
C
12
8
9
Install jumper
when using
10
2 Wire RTD
2-Wire RTD
Page -1

Advertisement

loading
Need help?

Need help?

Do you have a question about the UTC-4202G and is the answer not in the manual?

Questions and answers

Related Manuals for MULTISPAN UTC-4202G

Summary of Contents for MULTISPAN UTC-4202G

  • Page 1 OUTPUT SPECIFICATION: TEMPERATURE CONTROLLER Relay Output UTC - 4202G Relay 2 nos. 1 st Relay -1 C/O (NO-C-NC) Relay Type 2 nd Relay (NO-C) Rating 10A, 230V AC / 28 V DC SSR Drive Output 12V DC, 30mA DC Output Signal (ON-OFF Condition) Relay 1 Parallel to SSR ENVIRONMENT CONDITION...

  • Page 2: Safety Precaution

    WARNING GUIDELINES STATUS LED DESCRIPTION WARNING : Risk of electric shock. 2 345 1. To prevent the risk of electric shock, power supply to the equipment must be kept OFF while doing the wiring arrangement. Do not touch the terminals while power is 2500 being supplied.

  • Page 3: Factory Setting

    FACTORY SETTING PARAMETER MESSAGE DESCRIPTION 2345 C-PB Cooling PB 2500 Cooling On Time C-ON Press for 3 sec Cooling Off Time C-OF HYS1 Hysterisis 1 Hysterisis 2 HYS2 : press key to apply factory set Relay 1 Mode r!md values as shown in table. Soak Time Select : press key to exit...

  • Page 4: Error Display

    SOAK TIME FUNCTION RANGE FOR CONTROL PARAMETER Soak feature can be use to hold the process at a preset PARAMETER RANGE FOR J, K, & RANGE FOR J.1,K.1,PT.1 temperature for a preset time. PT-100 (Range : selectable up to 0 to 999 hour) 0.0 to 999.9°C 0.0 to 999.9°C 0 to 9999...

  • Page 5: Set Point Setting

    PARAMETER SETTING PARAMETER SETTING SET POINT SETTING CONTROL PARAMETER SETTING Password is 37 If ALM1=IN-B/OT-B/AB-O If CTR1 TP If CTR1 PID Press IF S2MD=INDI IN-B/OT-B/AB-O R2MD OFF and S2MD=INDI Press S2MD=RLTV OR R2MD=OFF Press If Soak = Yes (0 to 999 Min) Unit As Per Soak Unit Selected Press key for 4 sec...
  • Page 6 Case - 1 Case - 2 Heat + Soak + Alarm Heat + Heat If ON-OFF Selected If PID/TP Selected Case - 3 Heat + Cool If ON-OFF Selected If PID/TP Selected If ON-OFF Selected If PID/TP Selected If End Select If IN-B,AB-O,OT-B Select If LOW/HIGH/Ab-L Select If ON-OFF Selected...
  • Page 7 Case - 4 Case - 6 Heat + Alarm Cool + Alarm If ON-OFF Selected If PID/TP Selected If IN-B,AB-O,OT-B Select If LOW/HIGH/Ab-L Select If IN-B,AB-O,OT-B Select If LOW/HIGH/Ab-L Select Case - 5 Cool + Cool Page -7...

  • Page 8: Control Function

    CONTROL FUNCTION Case - 7 Alarm + Alarm ON - OFF control (Heating) RLY-OFF RLY-OFF HYST RLY-ON RLY-ON IF HIGH/LOW/AB-L RLY-OFF IN - B/OT-B/AB - 0 RLY-ON Time ON - OFF control (Cooling) HYST If IN-B,AB-O,OT-B Select If LOW/HIGH/Ab-L Select RLY-OFF delay delay...
