MULTISPAN TC-29P Operating Manual

OPERATING MANUAL
OPERATING MANUAL

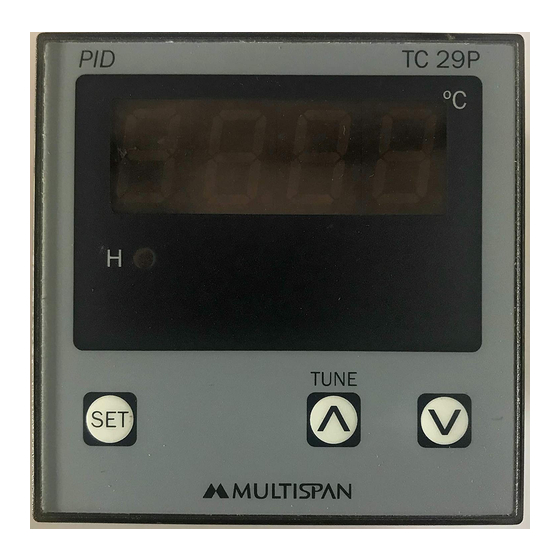

TEMPERATURE CONTROLLER
PID TEMPERATURE CONTROLLER
TC-49P
TC-29P
PID
01 8 0
H
SET
Note:
1) If Sensor Connection is reverse, Display will show "
2) If Sensor is not Connected, Display will show "
3) To Show set point, press
4) Auto out time is 15 sec without saving.
5) Every time the instument is turn on,following pattern will be displayed.
POWER ON
8.8.8.8.
t c _ J
P I D
0 0 5 0
Connection Diagram
TC-29P
Technical Specification
TC 29P
ºC
Key.
SET SET
Display for 2 sec
display for 2 sec, according to the input
sensor programmed.
display for 2 sec, according to the control
action programmed.
Process Value
L
1
N
2
3
4
5
-
6
SSR
12V DC
7
Model
Display 4 Digit 7 seg 0.56",red LED Display
Size (mm)
72 (H) X 72 (W) X 60 (D) mm
Panel Cutout
Input
Temperature
Range
Control Action
1Relay, 1C/O Contact,5A, 230V AC
Output
S.S.R, 12V DC approx,10mA DC.
Power Supply
230V AC,50 Hz, Approx 3VA
Protection
Level IP-65 (Front side) As per IS/IEC 60529 : 2001
(As per request)
Operating
Temperature
Relative
Humidity
SRE
" message.
OPeN
" message.
8
230V AC
TC
50Hz,3VA
9
-
!
10
11
12
NC
13
Relay
C
14
NO
Page - 1
TC-29P
68 X 68 mm
J TYPE
J type: 0 to 400°C
PID/ ON-OFF
0°C To 55°C
Up to 95% RH Non Condensing
