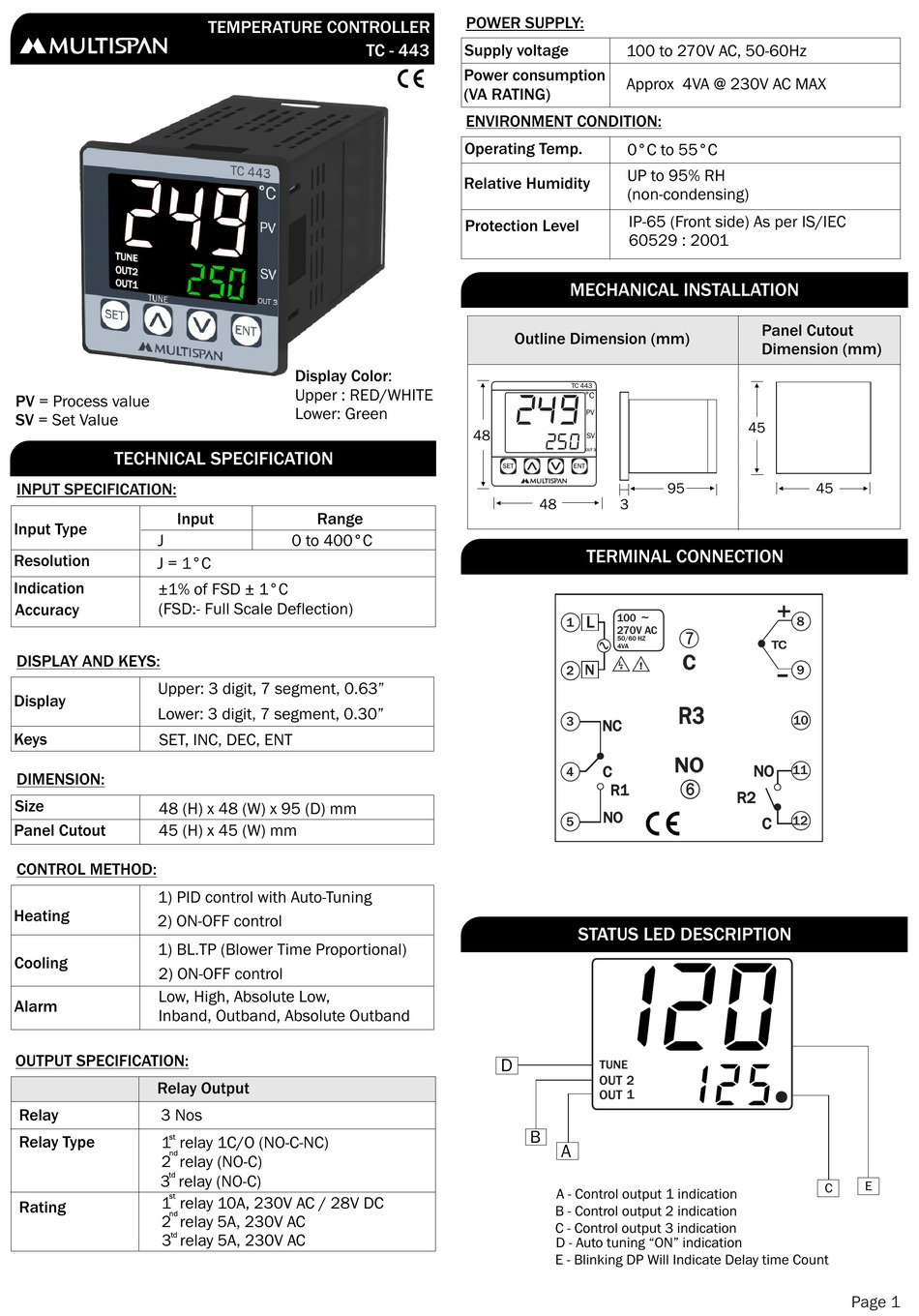

MULTISPAN TC-443 Manual

PV = Process value
SV = Set Value
TECHNICAL SPECIFICATION
INPUT SPECIFICATION:
Input
Input Type
J
Resolution
J = 1°C
Indication ±1% of FSD ± 1°C
(FSD:- Full Scale Deflection)
Accuracy
DISPLAY AND KEYS:
Upper: 3 digit, 7 segment, 0.63"
Display
Lower: 3 digit, 7 segment, 0.30"
Keys
SET, INC, DEC, ENT
DIMENSION:
Size
48 (H) x 48 (W) x 95 (D) mm
Panel Cutout 45 (H) x 45 (W) mm
CONTROL METHOD:
1) PID control with Auto-Tuning
Heating
2) ON-OFF control
1) BL.TP (Blower Time Proportional)
Cooling
2) ON-OFF control
Low, High, Absolute Low,
Alarm
Inband, Outband, Absolute Outband
OUTPUT SPECIFICATION:
Relay Output
Relay
3 Nos
st
Relay Type
1 relay 1C/O (NO-C-NC)
nd
2 relay (NO-C)
td
3 relay (NO-C)
st
1 relay 10A, 230V AC / 28V DC
Rating
nd
2 relay 5A, 230V AC
td
3 relay 5A, 230V AC

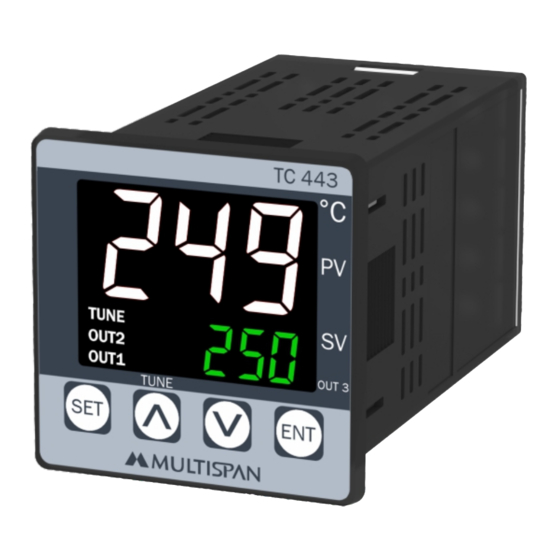

TEMPERATURE CONTROLLER
TC - 443
Display Color:
Upper : RED/WHITE
Lower: Green
Range
0 to 400°C
POWER SUPPLY:
Supply voltage 100 to 270V AC, 50-60Hz
Power consumption
Approx 4VA @ 230V AC MAX
(VA RATING)
ENVIRONMENT CONDITION:
Operating Temp.
0°C to 55°C
UP to 95% RH
Relative Humidity
(non-condensing)
IP-65 (Front side) As per IS/IEC
Protection Level
60529 : 2001
MECHANICAL INSTALLATION
Outline Dimension (mm)
TC 443
°
249
PV
48
250 SV
OUT 3
SET ENT
48 3
TERMINAL CONNECTION
100
L
1
270V AC
50/60 HZ
4VA
N
2
3
NC
C
4
R1
NO
5
STATUS LED DESCRIPTION
D
TUNE
OUT 2
1
OUT
B
A
A - Control output 1 indication
B - Control output 2 indication
C - Control output 3 indication
D - Auto tuning "ON" indication
E - Blinking DP Will Indicate Delay time Count
Panel Cutout
Dimension (mm)
45
95
~
8
7
TC
C
!
9
-
R3
10
NO
NO
11
6
R2
12
C
.
45
E
C
Page 1
