PV = Process Value
SV = Set Value
TECHNICAL SPECIFICATION
INPUT SPECIFICATION:
Input
Input Type
J
1°C
Resolution
±1% of FSD ± 1°C
Indication
Accuracy
(FSD:-Full Scale Deflection)
DISPLAY AND KEYS:
Upper: 3 digit, 7 segment, 0.80"
Display
Lower: 3 digit, 7 segment, 0.40"
Keys
SET, INC, DEC, ENT
DIMENSION:
Size
72 (H) x 72 (W) x 45 (D) mm
Panel Cutout
68 (H) x 68 (W) mm
CONTROL METHOD:
1) PID control with Auto-Tuning
Heating
2) ON-OFF control
OUTPUT SPECIFICATION:
Relay Output
Relay
1 Nos
Relay Type
1C/O (NO-C-NC)
Rating
10A, 230V AC / 28V DC
SSR Drive Output
12V DC, 30mA DC
Output Signal
(On-Off condition)
TEMPERATURE CONTROLLER

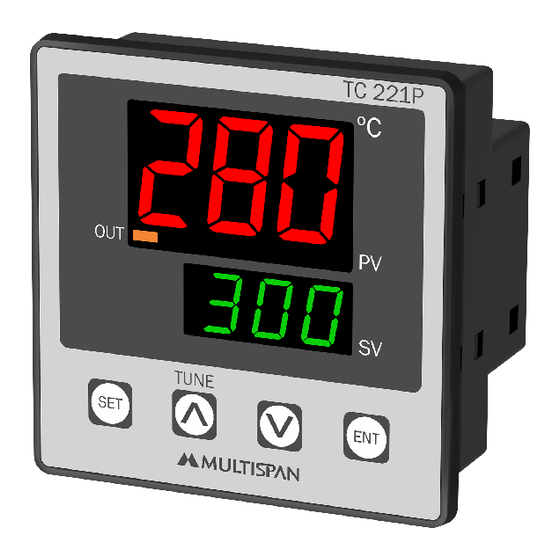

TC-221P
Display Color:
Upper : RED/WHITE
Lower: Green
Range
0 to 400°C,
POWER SUPPLY:
Supply
100 to 270V AC, 50-60Hz
Voltage
Power
Consuption
4VA @ 230V AC MAX
(VA Rating)
ENVIRONMENT CONDITION:
Operating Temp.
0°C to 55°C
UP to 95% RH
Relative Humidity
(non-condensing)
Protection Level
(As per request)
MECHANICAL INSTALLATION
Outline Dimension (mm)
TC 221P
°
PV
OUT
72
SV
SET
ENT
72
3
TERMINAL CONNECTION
14
12
13
-
S.S.R
O/P
Control Action: ON-OFF, PID
Made in India
~
100
Sensor:
270V AC
Range:
50/60 Hz
!
4VA
L
N
1
2
3
Sensor Input
8
9
Thermocouple
IP-65 (Front side) As per IS/IEC
60529 : 2001
Panel Cutout
Dimension (mm)
68
68
45
11
10
9
-
T/C
J Type
0 to 400°C
www.multispanindia.com
Relay
NO
C
4
5
6
8
NC
7
