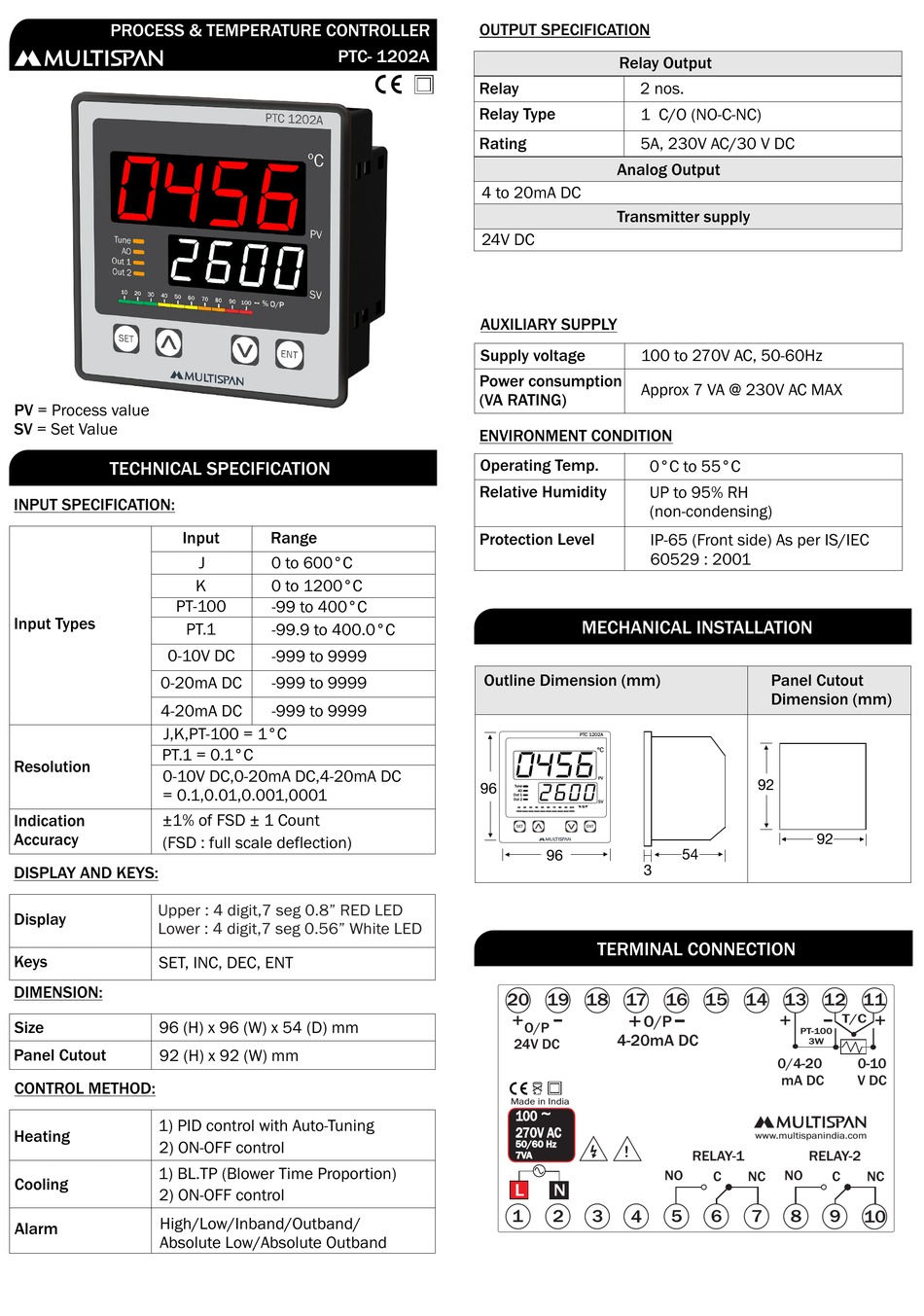

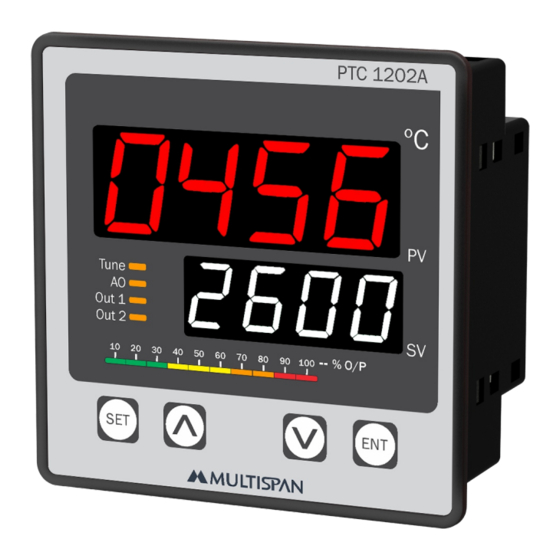

MULTISPAN PTC-1202A Quick Start Manual

PROCESS & TEMPERATURE CONTROLLER
PV = Process value
SV = Set Value
TECHNICAL SPECIFICATION
INPUT SPECIFICATION:
Input
PT-100
Input Types
PT.1
0-10V DC
0-20mA DC
4-20mA DC
J,K,PT-100 = 1°C
PT.1 = 0.1°C
Resolution
0-10V DC,0-20mA DC,4-20mA DC
= 0.1,0.01,0.001,0001
±1% of FSD ± 1 Count
Indication
Accuracy
(FSD : full scale deflection)
DISPLAY AND KEYS:
Upper : 4 digit,7 seg 0.8" RED LED
Display
Lower : 4 digit,7 seg 0.56" White LED
Keys
SET, INC, DEC, ENT
DIMENSION:
Size 96 (H) x 96 (W) x 54 (D) mm
Panel Cutout 92 (H) x 92 (W) mm
CONTROL METHOD:
1) PID control with Auto-Tuning
Heating
2) ON-OFF control
1) BL.TP (Blower Time Proportion)
Cooling
2) ON-OFF control
High/Low/Inband/Outband/
Alarm
Absolute Low/Absolute Outband
PTC- 1202A
Range
J 0 to 600°C
K 0 to 1200°C
-99 to 400°C
-99.9 to 400.0°C
-999 to 9999
-999 to 9999
-999 to 9999
OUTPUT SPECIFICATION
Relay Output
Relay 2 nos.
Relay Type 1 C/O (NO-C-NC)
Rating 5A, 230V AC/30 V DC
Analog Output
4 to 20mA DC
Transmitter supply
24V DC
AUXILIARY SUPPLY
Supply voltage 100 to 270V AC, 50-60Hz
Power consumption
Approx 7 VA @ 230V AC MAX
(VA RATING)
ENVIRONMENT CONDITION
Operating Temp.
0°C to 55°C
Relative Humidity UP to 95% RH
(non-condensing)
Protection Level
IP-65 (Front side) As per IS/IEC
60529 : 2001
MECHANICAL INSTALLATION
Outline Dimension (mm)
PTC 1202A
ºC
0456
PV
96
Tune
AO
Out 1
Out 2
SV
10 20 30 40 50 60 70 80 90 100 % O/P
SET ENT
96
3
TERMINAL CONNECTION
20 19 18 17
O/P
O/P
4-20mA DC
24V DC
Made in India
~
100
270V AC
50/60 Hz
!
7VA
L N
1 2 3 4
Panel Cutout
Dimension (mm)
92
92
54
16 15 14 13 12
PT-100
3W
0/4-20
mA DC
