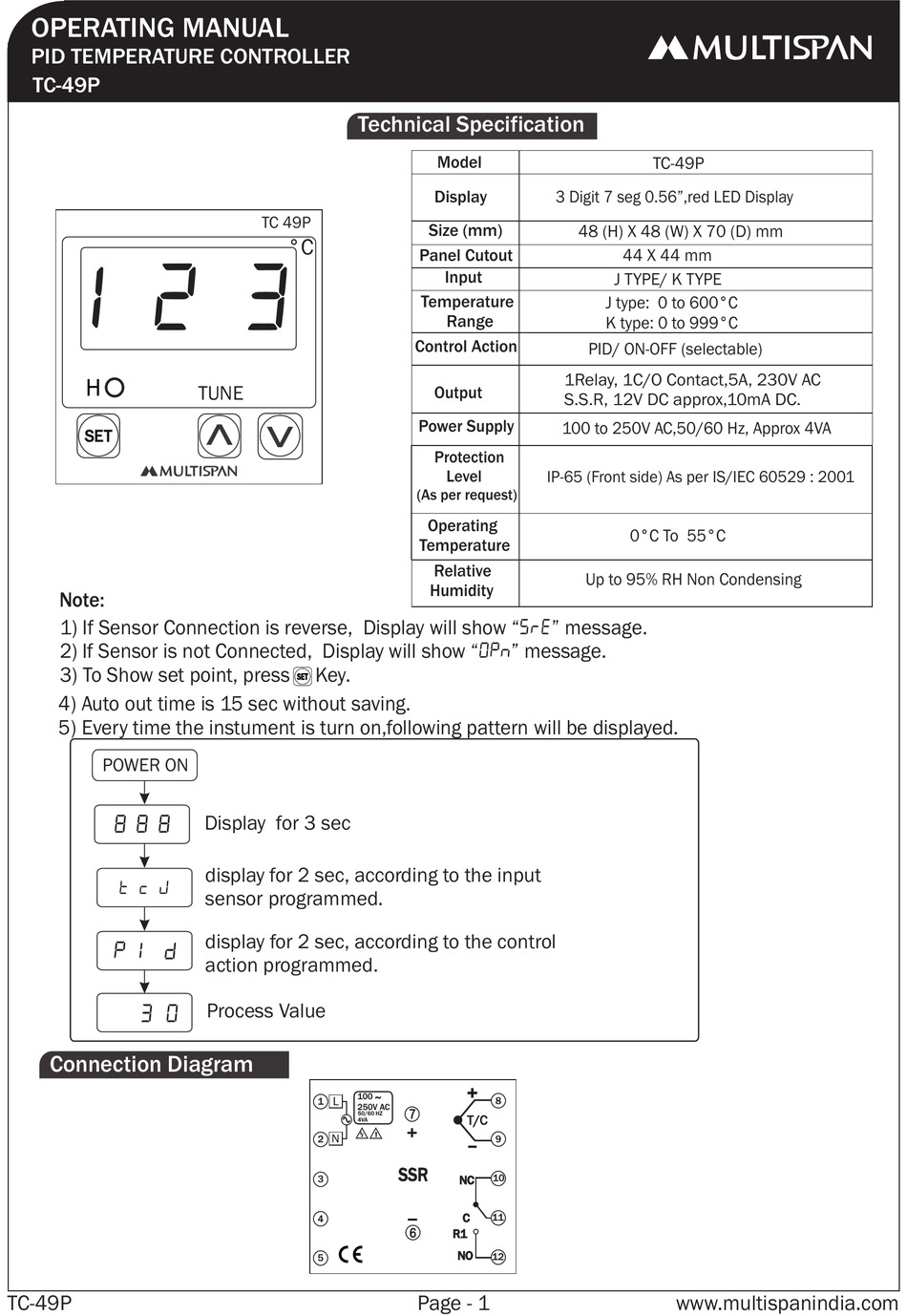

MULTISPAN TC-49P Operating Manual

OPERATING MANUAL
PID TEMPERATURE CONTROLLER
TC-49P

Note:
1) If Sensor Connection is reverse, Display will show "" message.
2) If Sensor is not Connected, Display will show "" message.
3) To Show set point, press
4) Auto out time is 15 sec without saving.
5) Every time the instument is turn on,following pattern will be displayed.
POWER ON
  



Connection Diagram
TC-49P
Technical Specification
TC 49P
°C
TUNE
Key.
SET SET
Display for 3 sec
display for 2 sec, according to the input
sensor programmed.
display for 2 sec, according to the control
action programmed.
Process Value
100
L
1
250V AC
50/60 HZ
4VA
N
2
3
4
5
Model
Display
Size (mm)
Panel Cutout
Input
Temperature
Range
Control Action
Output
Power Supply
Protection
Level
(As per request)
Operating
Temperature
Relative
Humidity
~
8
7
T/C
+
!
9
-
SSR
10
NC
- -
C
11
6
R1
NO
12
Page - 1
TC-49P
3 Digit 7 seg 0.56",red LED Display
48 (H) X 48 (W) X 70 (D) mm
44 X 44 mm
J TYPE/ K TYPE
J type: 0 to 600°C
K type: 0 to 999°C
PID/ ON-OFF (selectable)
1Relay, 1C/O Contact,5A, 230V AC
S.S.R, 12V DC approx,10mA DC.
100 to 250V AC,50/60 Hz, Approx 4VA
IP-65 (Front side) As per IS/IEC 60529 : 2001
0°C To 55°C
Up to 95% RH Non Condensing
www.multispanindia.com
