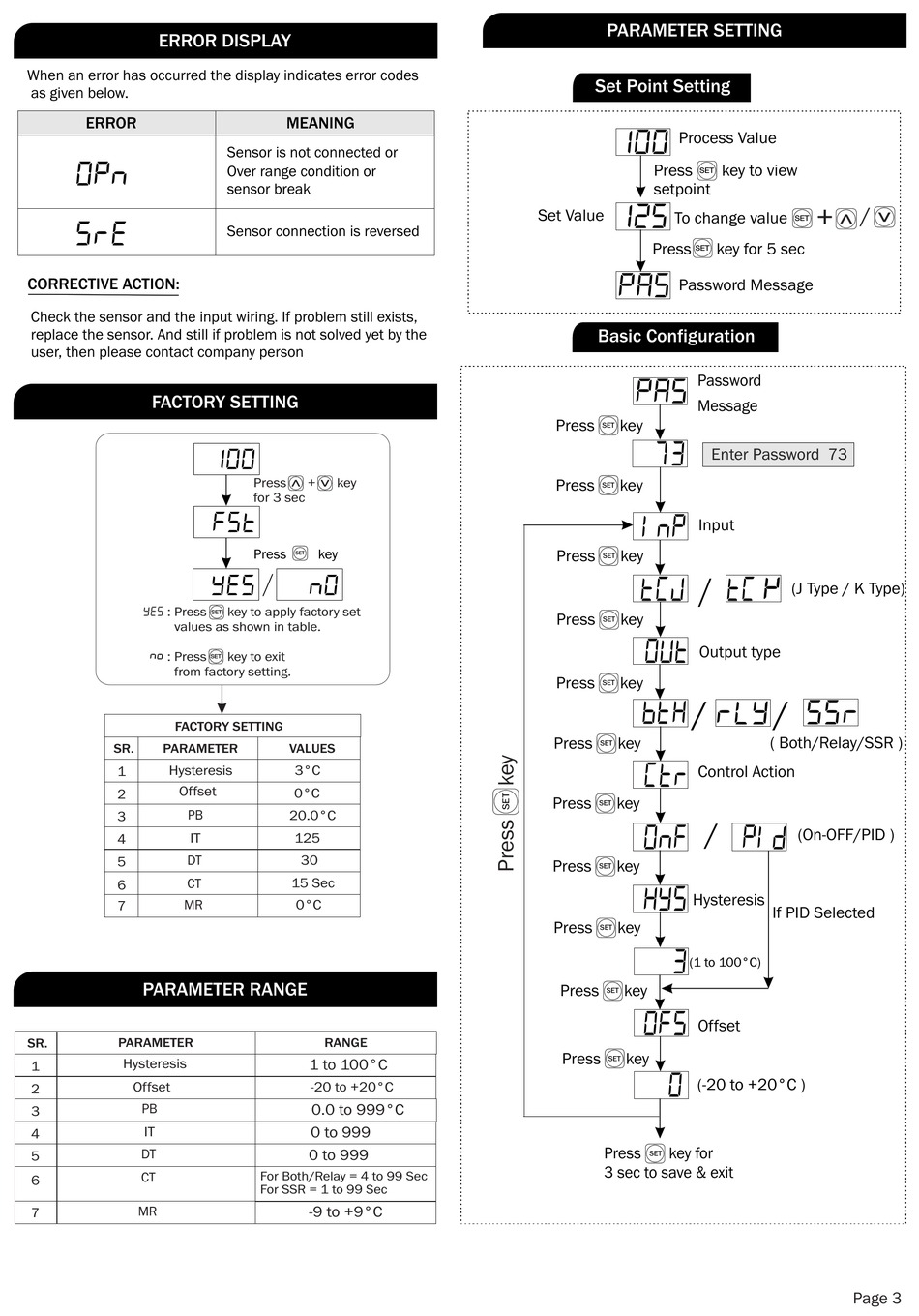

MULTISPAN TC-49P Quick Start Manual page 3

ERROR DISPLAY
When an error has occurred the display indicates error codes
as given below.
ERROR
OPN
SRE
CORRECTIVE ACTION:
Check the sensor and the input wiring. If problem still exists,
replace the sensor. And still if problem is not solved yet by the
user, then please contact company person
FACTORY SETTING
yes : Press
values as shown in table.
no
: Press
from factory setting.
FACTORY SETTING
PARAMETER
SR.
Hysteresis
1
Offset
2
PB
3
IT
4
DT
5
CT
6
MR
7
PARAMETER RANGE
PARAMETER
SR.
Hysteresis
1
Offset
2
PB
3
IT
4
DT
5
CT
6
MR
7
MEANING
Sensor is not connected or
Over range condition or
sensor break
Sensor connection is reversed
100
Press + key
for 3 sec
FST
Press key
SET
YES NO
key to apply factory set
SET
key to exit
SET
VALUES
3°C
0°C
20.0°C
125
30
15 Sec
0°C
RANGE
1 to 100°C
-20 to +20°C
0.0 to 999°C
0 to 999
0 to 999
For Both/Relay = 4 to 99 Sec
For SSR = 1 to 99 Sec
-9 to +9°C
PARAMETER SETTING
Set Point Setting
100
Process Value
Press
SET
setpoint
125
Set Value
To change value
Press
SET
pas
Password Message
Basic Configuration
Password
pas
Message
Press key
SET
73
Enter Password 73
Press key
SET
INP
Input
Press key
SET
TCJ / TC
Press key
SET
OUT
Output type
Press key
SET
BTH / rLy / ssr
Press key
SET
CTR
Control Action
Press key
SET
/
ONF
Press key
SET
HYS
Hysteresis
Press key
SET
3
(1 to 100°C)
Press key
SET
OFS
Offset
Press key
SET
0
(-20 to +20°C )
Press key for
SET
3 sec to save & exit
key to view
+
/
SET
key for 5 sec
(J Type / K Type)
( Both/Relay/SSR )
pID
(On-OFF/PID )
If PID Selected
Page 3
