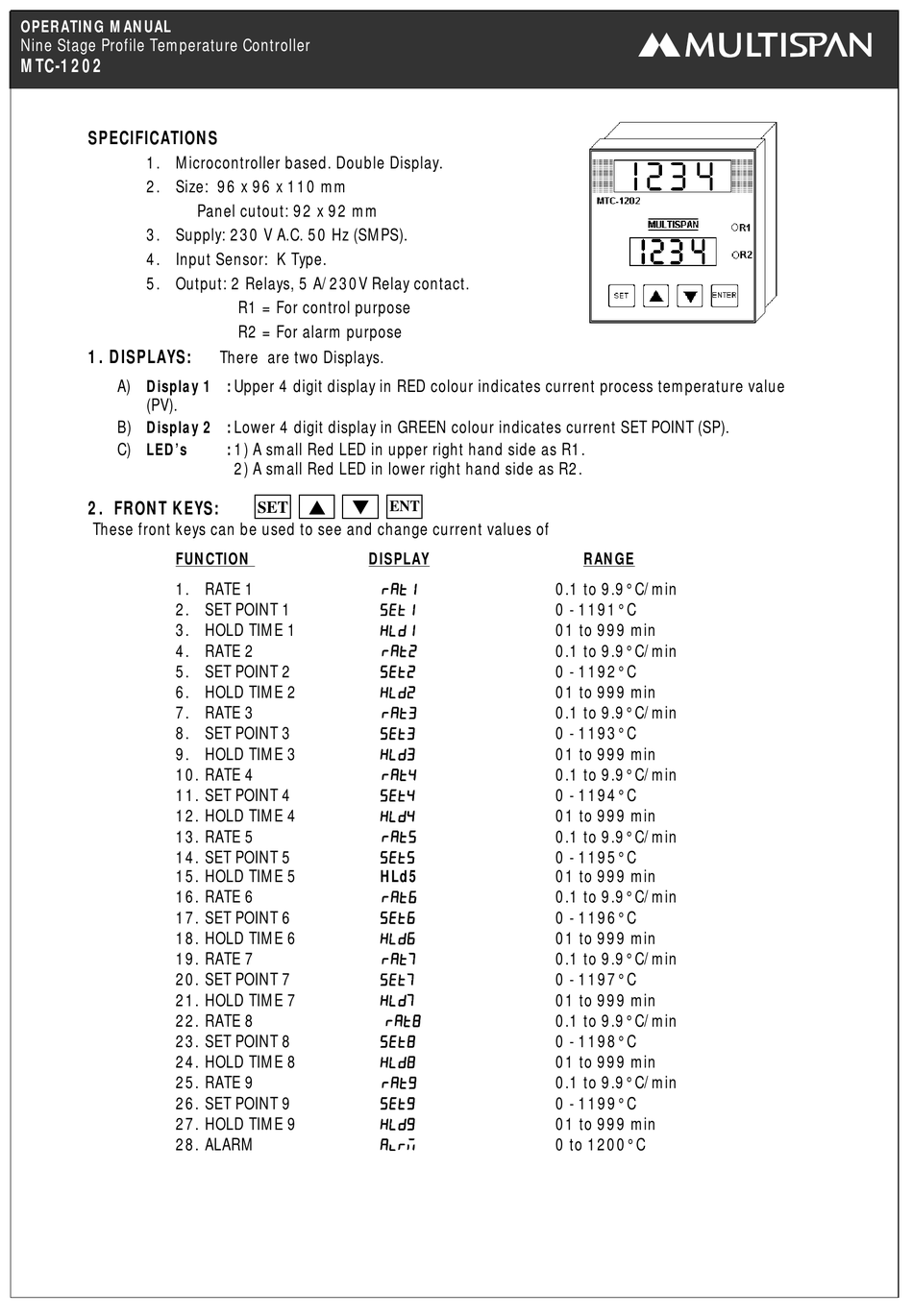

MULTISPAN MTC-1202 Operating Manual

OPERATING MANUAL
Nine Stage Profile Temperature Controller
MTC-1202
SPECIFICATIONS
1. Microcontroller based. Double Display.
2. Size: 96 x 96 x 110 mm
3. Supply: 230 V A.C. 50 Hz (SMPS).
4. Input Sensor: K Type.
5. Output: 2 Relays, 5 A/230V Relay contact.

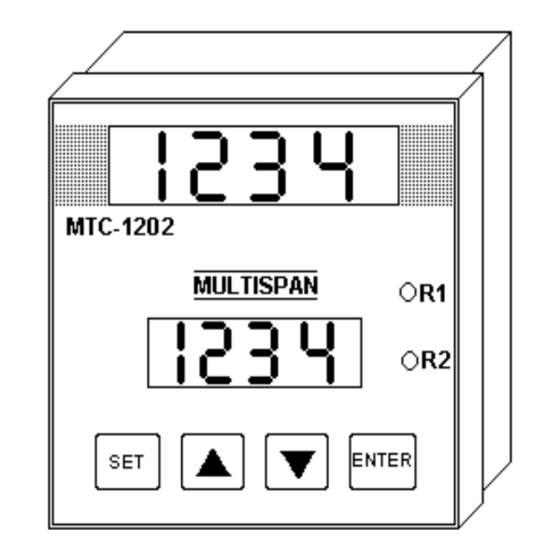

1. DISPLAYS:
A) Display 1 : Upper 4 digit display in RED colour indicates current process temperature value
(PV).
B) Display 2 : Lower 4 digit display in GREEN colour indicates current SET POINT (SP).
C) LED's
2. FRONT KEYS:
These front keys can be used to see and change current values of
FUNCTION
1. RATE 1
2. SET POINT 1
3. HOLD TIME 1
4. RATE 2
5. SET POINT 2
6. HOLD TIME 2
7. RATE 3
8. SET POINT 3
9. HOLD TIME 3
10. RATE 4
11. SET POINT 4
12. HOLD TIME 4
13. RATE 5
14. SET POINT 5
15. HOLD TIME 5
16. RATE 6
17. SET POINT 6
18. HOLD TIME 6
19. RATE 7
20. SET POINT 7
21. HOLD TIME 7
22. RATE 8
23. SET POINT 8
24. HOLD TIME 8
25. RATE 9
26. SET POINT 9
27. HOLD TIME 9
28. ALARM
Panel cutout: 92 x 92 mm
R1 = For control purpose
R2 = For alarm purpose
There are two Displays.
: 1) A small Red LED in upper right hand side as R1.
2) A small Red LED in lower right hand side as R2.
 
SET
DISPLAY
ENT














HLd5













RANGE
0.1 to 9.9°C/min
0 - 1191°C
01 to 999 min
0.1 to 9.9°C/min
0 - 1192°C
01 to 999 min
0.1 to 9.9°C/min
0 - 1193°C
01 to 999 min
0.1 to 9.9°C/min
0 - 1194°C
01 to 999 min
0.1 to 9.9°C/min
0 - 1195°C
01 to 999 min
0.1 to 9.9°C/min
0 - 1196°C
01 to 999 min
0.1 to 9.9°C/min
0 - 1197°C
01 to 999 min
0.1 to 9.9°C/min
0 - 1198°C
01 to 999 min
0.1 to 9.9°C/min
0 - 1199°C
01 to 999 min
0 to 1200°C
