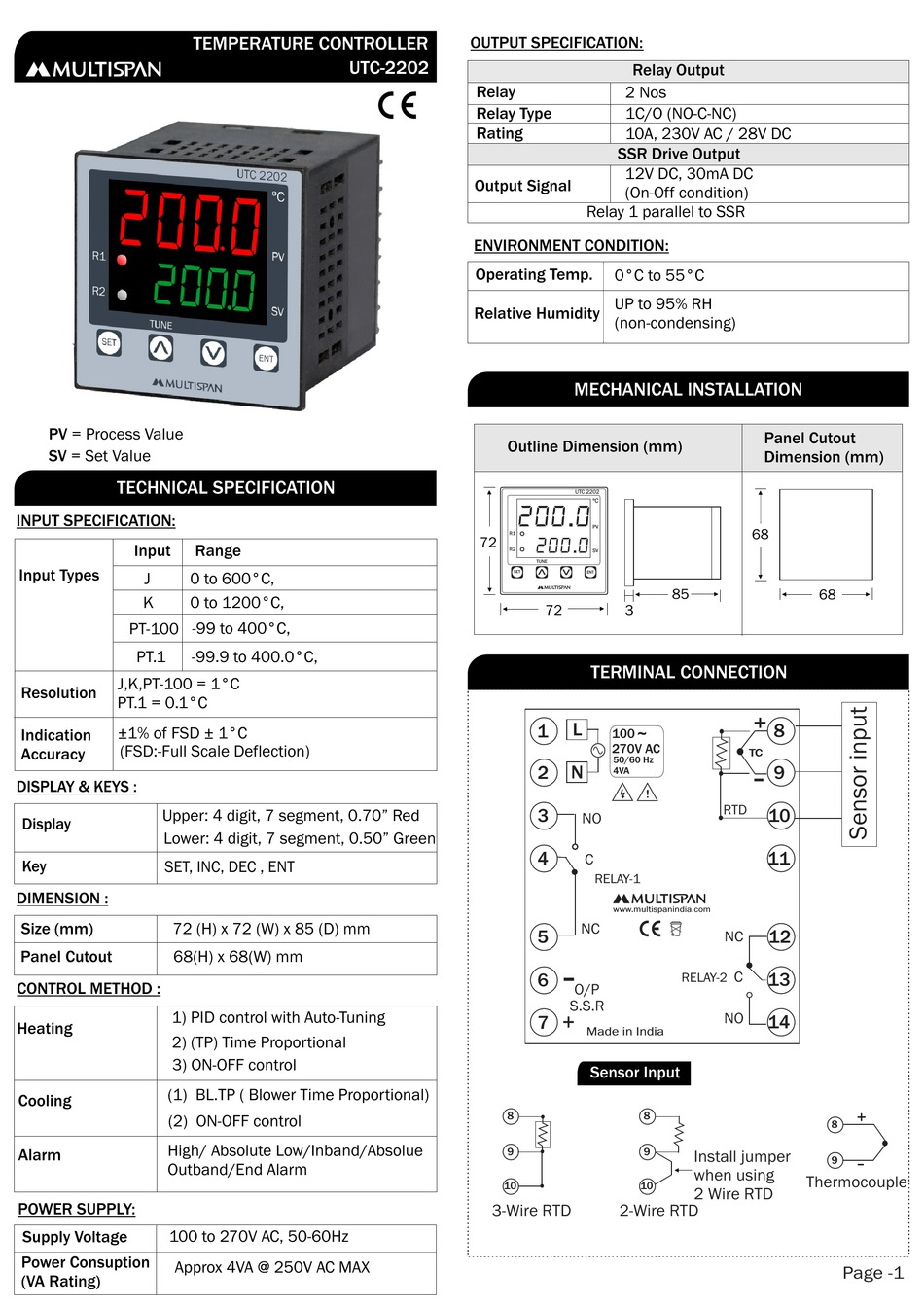

PV = Process Value
SV = Set Value
TECHNICAL SPECIFICATION
INPUT SPECIFICATION:
Input
Input Types
J
0 to 600°C,
K
0 to 1200°C,
PT-100
PT.1
J,K,PT-100 = 1°C
Resolution
PT.1 = 0.1°C
±1% of FSD ± 1°C
Indication
(FSD:-Full Scale Deflection)
Accuracy
DISPLAY & KEYS :
Upper: 4 digit, 7 segment, 0.70" Red
Display
Lower: 4 digit, 7 segment, 0.50" Green
Key
SET, INC, DEC , ENT
DIMENSION :
Size (mm)
72 (H) x 72 (W) x 85 (D) mm
Panel Cutout
68(H) x 68(W) mm
CONTROL METHOD :
1) PID control with Auto-Tuning
Heating
2) (TP) Time Proportional
3) ON-OFF control
(1) BL.TP ( Blower Time Proportional)
Cooling
(2) ON-OFF control
High/ Absolute Low/Inband/Absolue
Alarm
Outband/End Alarm
POWER SUPPLY:
100 to 270V AC, 50-60Hz
Supply Voltage
Power Consuption
Approx 4VA @ 250V AC MAX
(VA Rating)

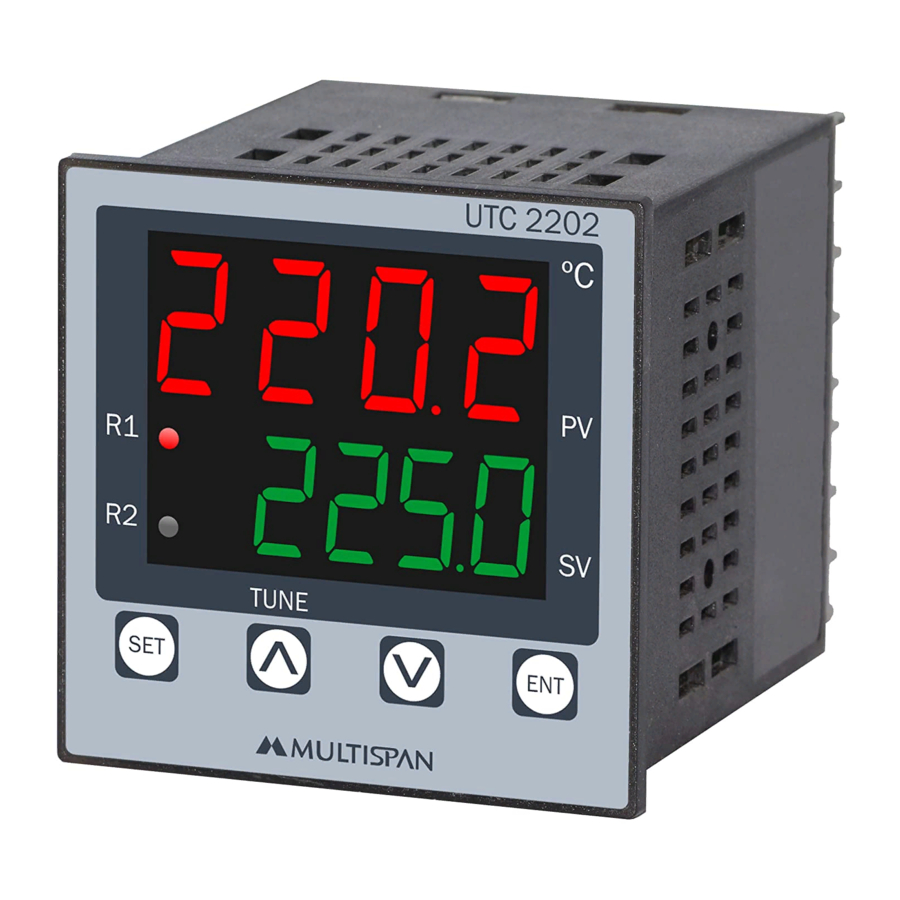

TEMPERATURE CONTROLLER
UTC-2202
Range
-99 to 400°C,
-99.9 to 400.0°C,
OUTPUT SPECIFICATION:
Relay Output
Relay
2 Nos
Relay Type
1C/O (NO-C-NC)
Rating
10A, 230V AC / 28V DC
SSR Drive Output
12V DC, 30mA DC
Output Signal
(On-Off condition)
Relay 1 parallel to SSR
ENVIRONMENT CONDITION:
Operating Temp.
0°C to 55°C
UP to 95% RH
Relative Humidity
(non-condensing)
MECHANICAL INSTALLATION
Outline Dimension (mm)
UTC 2202
ºC
200.O
PV
R1
72
200.O
R2
SV
TUNE
SET
ENT
72
3
TERMINAL CONNECTION
L
1
~
100
270V AC
50/60 Hz
2
N
4VA
3
NO
4
C
RELAY-1
www.multispanindia.com
NC
5
-
6
O/P
S.S.R
7
Made in India
Sensor Input
8
8
9
9
10
10
3-Wire RTD
2-Wire RTD
Panel Cutout
Dimension (mm)
68
85
68
8
TC
9
-
!
RTD
10
11
12
NC
C
RELAY-2
13
NO
14
Install jumper
when using
Thermocouple
2 Wire RTD
8
9
Page -1
Advertisement
Table of Contents
Related Manuals for MULTISPAN UTC-2202
Summary of Contents for MULTISPAN UTC-2202
- Page 1 TEMPERATURE CONTROLLER OUTPUT SPECIFICATION: UTC-2202 Relay Output Relay 2 Nos Relay Type 1C/O (NO-C-NC) Rating 10A, 230V AC / 28V DC SSR Drive Output 12V DC, 30mA DC Output Signal (On-Off condition) Relay 1 parallel to SSR ENVIRONMENT CONDITION: Operating Temp.
-
Page 2: Maintenance
STATUS LED DESCRIPTION WARNING GUIDELINES WARNING : Risk of electric shock. 2 345 1. To prevent the risk of electric shock power supply to the equipment must be kept OFF while doing the wiring arrangement. Do not touch the terminals while power is being supplied. -
Page 3: Factory Setting
FACTORY SETTING PARAMETER MESSAGE DESCRIPTION 2345 C-PB Cooling PB Cooling On Time C-ON 2500 Cooling Off Time C-OF Press Hysterisis 1 HYS1 for 3 sec Hysterisis 2 HYS2 Relay 1 Mode r!md Soak Time Select S MD Soak Mode S UT Soak Unit : press key to apply factory set... -
Page 4: Error Display
RANGE FOR CONTROL PARAMETER SOAK TIME FUNCTION Soak feature can be use to hold the process at a preset Range for PT.1 sensor Parameter Range for J, K, PT100 temperature for a preset time. 0.0 to 999.9°C 0.0 to 999.9°C (Range : selectable up to 0 to 999 hour) 0 to 9999 0 to 9999... -
Page 5: Parameter Setting
PARAMETER SETTING SET POINT SETTING CONTROL PARAMETER SETTING Password is 37 If CTR1 TP If CTR1 PID If ALM1=IN-B/AB-O Press Press If ALM2=IN-B/AB-O Press If Soak = Yes Press key for 4 sec BASIC CONFIGURATION If CTR 2 =BL.TP Password is 73 /// Case 1: Heat + soak + alarm Case 2: Heat + Heat... - Page 6 Case - 1 Case - 2 Heat + Soak + Alarm Heat + Heat If ON-OFF Selected If PID/TP Selected Case - 3 Heat + Cool If ON-OFF Selected If PID/TP Selected If PID/TP Selected If HIGH/Ab-L Select Select If ON-OFF Selected Page -6...
- Page 7 Case - 4 Case - 5 Heat + Alarm Cool + Cool If ON-OFF If PID/TP Selected Selected IF HIGH/ Case - 6 AB-L IN - B / AB - 0 Cool + Alarm IF HIGH /AB-L IN - B / AB - 0 Page -7...
-
Page 8: Control Function
Case - 7 CONTROL FUNCTION Alarm + Alarm ON - OFF control (Heating) - for relay 1 & relay - 2 mode RLY-OFF RLY-OFF HYST RLY-ON RLY-ON RLY-OFF IF HIGH/ RLY-ON AB-L IN - B / Time AB - 0 ON - OFF control (Cooling) for relay 1 mode HYST RLY-OFF...
