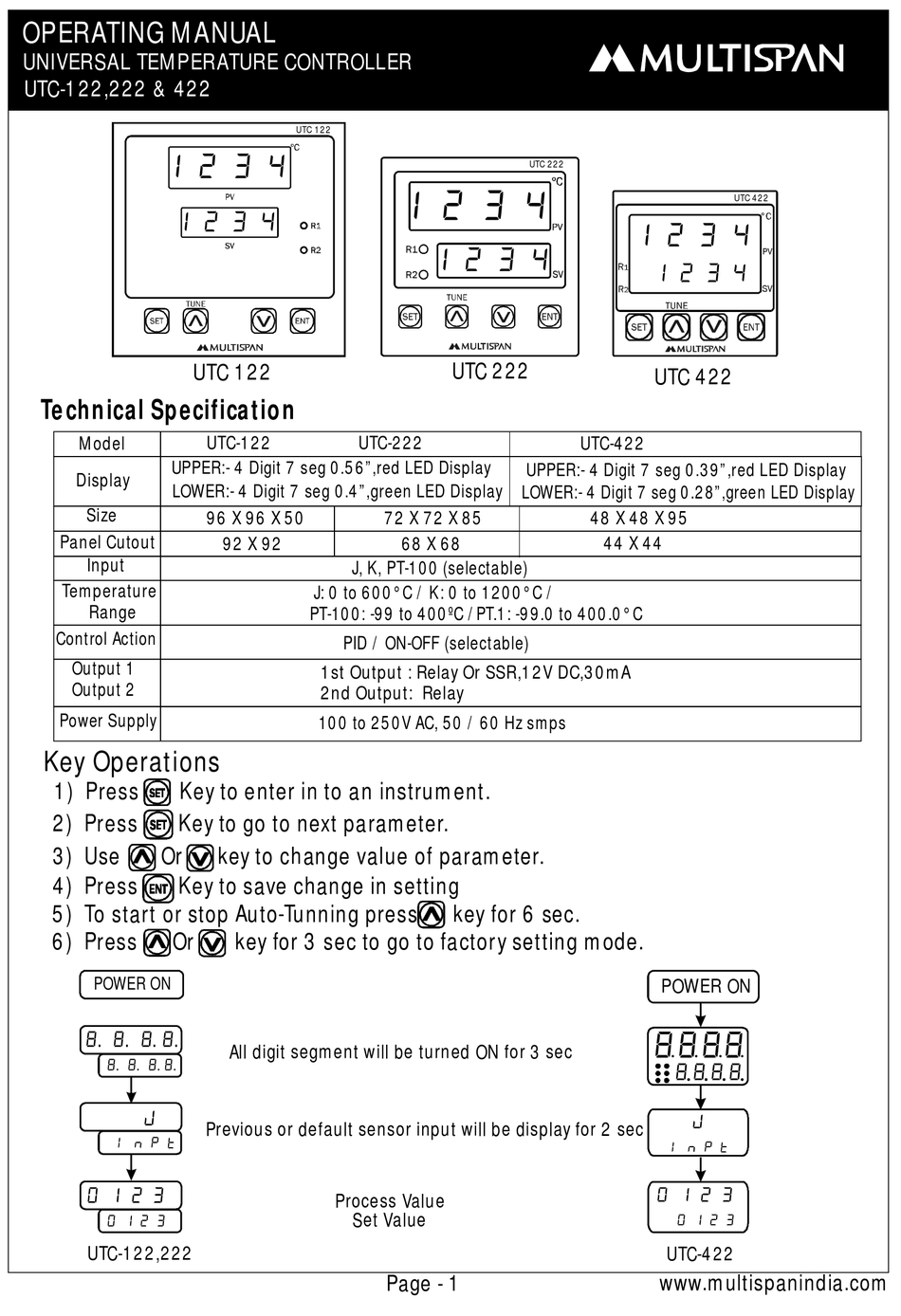

OPERATING MANUAL

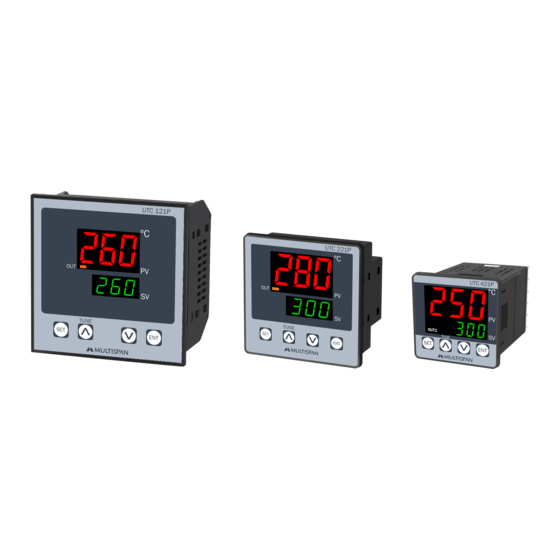

UNIVERSAL TEMPERATURE CONTROLLER
UTC-122,222 & 422
Technical Specification
Model
UPPER:- 4 Digit 7 seg 0.56",red LED Display
Display
LOWER:- 4 Digit 7 seg 0.4",green LED Display LOWER:- 4 Digit 7 seg 0.28",green LED Display
Size
Panel Cutout
Input
Temperature
Range
Control Action
Output 1
Output 2
Power Supply
Key Operations
1) Press
Key to enter in to an instrument.
2) Press
Key to go to next parameter.
3) Use
Or
4) Press
Key to save change in setting
5) To start or stop Auto-Tunning press
6) Press
Or
POWER ON
. . . .
. . . .
UTC-122,222
UTC 122
UTC 122
UTC-122
UTC-222
96 X 96 X 50
92 X 92
J, K, PT-100 (selectable)
J: 0 to 600°C / K: 0 to 1200°C /
PT-100: -99 to 400ºC /PT.1: -99.0 to 400.0°C
PID / ON-OFF (selectable)
1st Output : Relay Or SSR,12V DC,30mA
2nd Output: Relay
100 to 250V AC, 50 / 60 Hz smps
key to change value of parameter.
key for 3 sec to go to factory setting mode.
All digit segment will be turned ON for 3 sec
Previous or default sensor input will be display for 2 sec
Process Value
Set Value
UTC 222
UTC 222
UPPER:- 4 Digit 7 seg 0.39",red LED Display
72 X 72 X 85
68 X 68
key for 6 sec.
Page - 1
UTC 422
UTC 422
UTC-422
48 X 48 X 95
44 X 44
POWER ON
UTC-422
www.multispanindia.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for MULTISPAN UTC-222
Summary of Contents for MULTISPAN UTC-222
-
Page 1: Key Operations
UTC 122 UTC 422 Technical Specification Model UTC-122 UTC-222 UTC-422 UPPER:- 4 Digit 7 seg 0.56”,red LED Display UPPER:- 4 Digit 7 seg 0.39”,red LED Display Display LOWER:- 4 Digit 7 seg 0.4”,green LED Display LOWER:- 4 Digit 7 seg 0.28”,green LED Display... - Page 2 Process Value SET POINT SETTING Set Value Set Point 1 Set Point 2 BASIC CONFIGURATION Press key for 5 sec to enter Password parmeter Password Message TO ENTER BASIC CONFIGURATION SETTING, ENTER “73” ...
- Page 3 CONTROL PARAMETER TO ENTER CONTROL PARAMETER Password Message SETTING, ENTER “37” IF ON-OFF SELECTED IF PID SELECTED ON-OFF Parameters Parameters Proportional Hysteresis 1 Constant Integral Constant Derivative Constant ...
-
Page 4: Factory Setting
FACTORY SETTING FACTORY SETTING Process Value Set Value PARAMETER VALUES Press key for 3 sec 000.5 Factory Setting 0.225 6 sec : press key to apply factory set values as shown in table. 0°C : press key to escape from factory setting. OFFSET 0°C HYSTERESIS...
