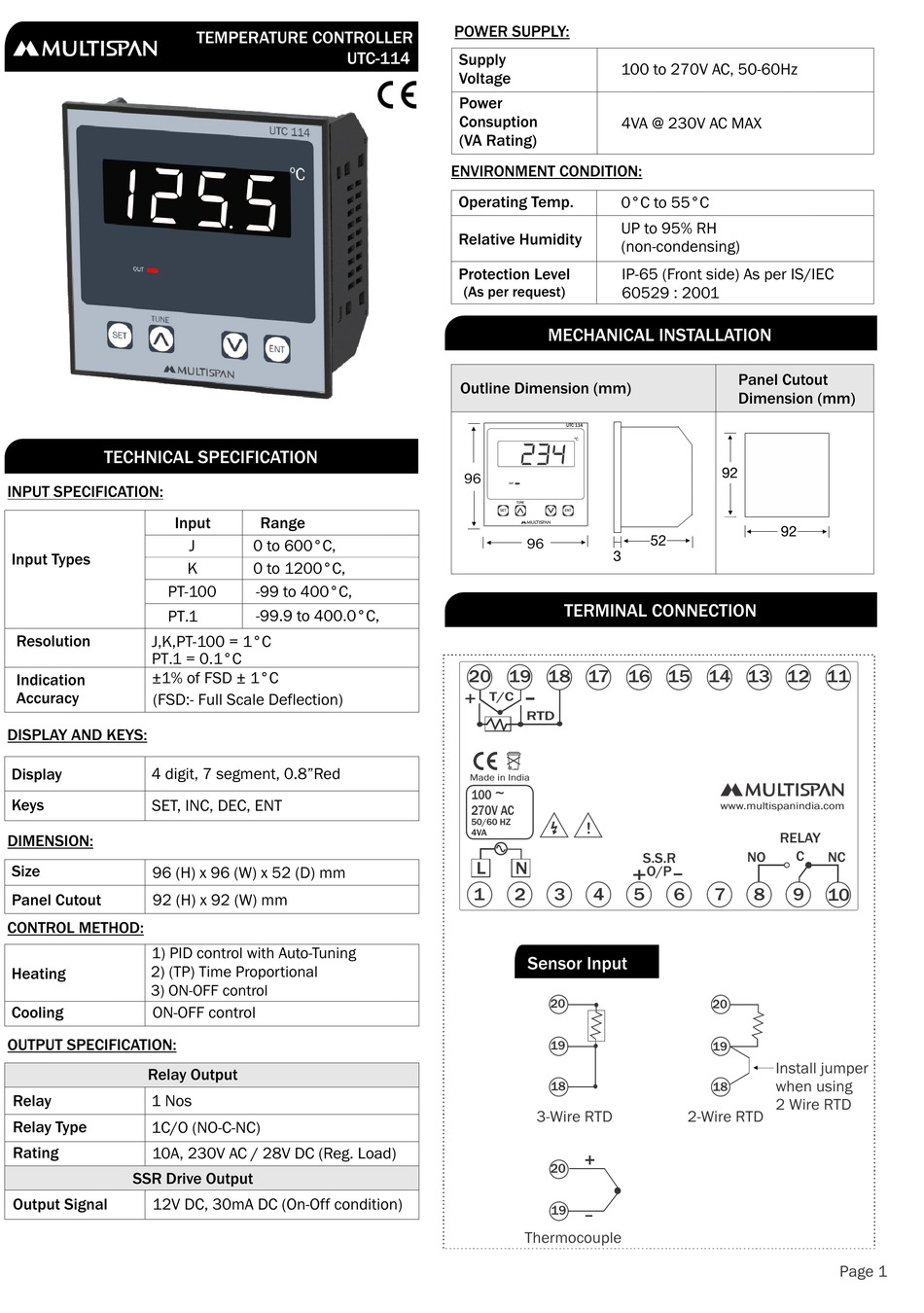

TECHNICAL SPECIFICATION

INPUT SPECIFICATION:
Input
Input Types
PT-100
PT.1
Resolution
J,K,PT-100 = 1°C
PT.1 = 0.1°C
±1% of FSD ± 1°C
Indication
Accuracy
(FSD:- Full Scale Deflection)
DISPLAY AND KEYS:
Display
4 digit, 7 segment, 0.8"Red
Keys
SET, INC, DEC, ENT
DIMENSION:
Size
96 (H) x 96 (W) x 52 (D) mm
Panel Cutout
92 (H) x 92 (W) mm
CONTROL METHOD:
1) PID control with Auto-Tuning
2) (TP) Time Proportional
Heating
3) ON-OFF control
Cooling
ON-OFF control
OUTPUT SPECIFICATION:
Relay Output
Relay
1 Nos
Relay Type
1C/O (NO-C-NC)
Rating
10A, 230V AC / 28V DC (Reg. Load)
SSR Drive Output
Output Signal
12V DC, 30mA DC (On-Off condition)

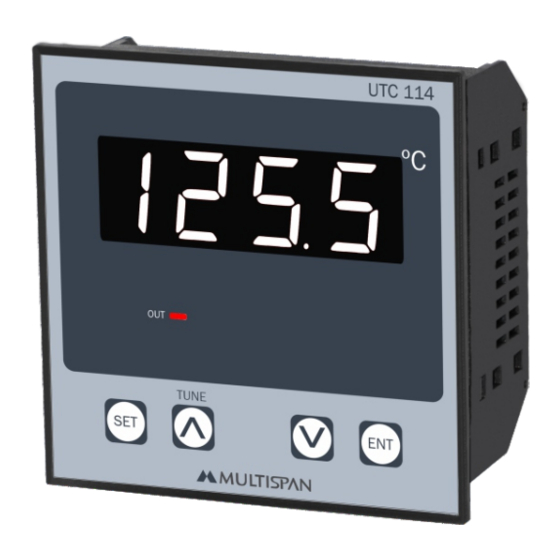

TEMPERATURE CONTROLLER
UTC-114
Range
J
0 to 600°C,
K
0 to 1200°C,
-99 to 400°C,
-99.9 to 400.0°C,

POWER SUPPLY:

Supply
100 to 270V AC, 50-60Hz
Voltage
Power
Consuption
4VA @ 230V AC MAX
(VA Rating)

ENVIRONMENT CONDITION:

Operating Temp.
0°C to 55°C
UP to 95% RH
Relative Humidity
(non-condensing)
Protection Level
IP-65 (Front side) As per IS/IEC
(As per request)
60529 : 2001

MECHANICAL INSTALLATION

Outline Dimension (mm)
UTC 114
ºC
234
96
OUT
TUNE
SET
ENT
96
3
TERMINAL CONNECTION
20
19
18
17
T/C
RTD
Made in India
~
100
270V AC
50/60 HZ
!
4VA
L
N
1
2
3
4
Sensor Input
20
19
18
3-Wire RTD
20
19
Thermocouple
Panel Cutout
Dimension (mm)
92
92
52
16
15
14
13
12
www.multispanindia.com
RELAY
C
S.S.R
NO
-
O/P
+
5
6
7
8
9
20
19
Install jumper
when using
18
2 Wire RTD
2-Wire RTD
11
NC
10
Page 1
