Mounting

5.3 Screw mounting

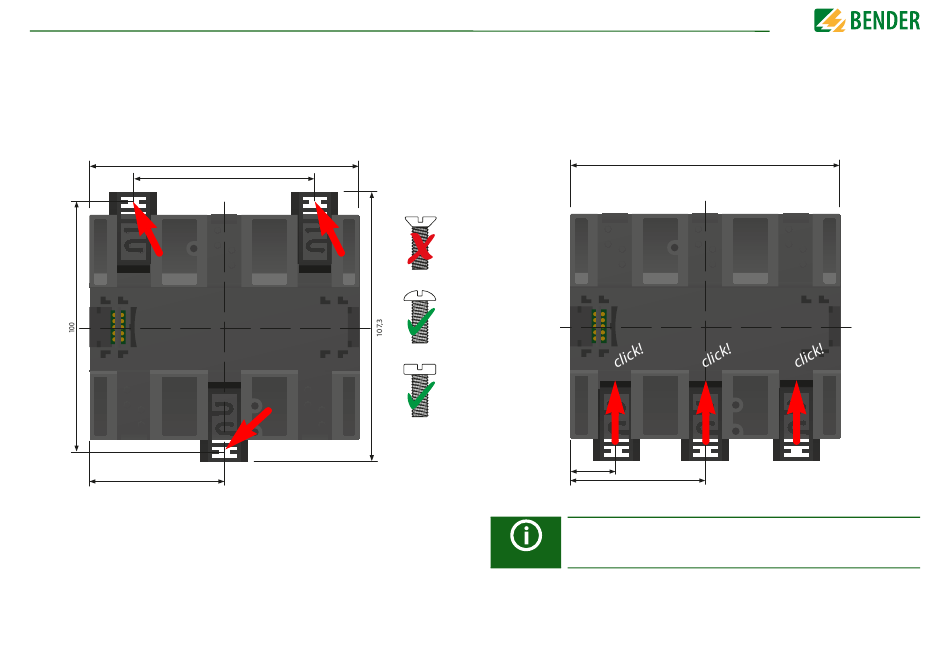

1. Fix the three mounting clips delivered with the device (two of them packed
separately) manually or using a tool, as illustrated below.
2. Drill the mounting holes for the M4 thread according to the drilling template.
3. Fix the ISOMETER® using three M4 screws..
54
Dimensions in mm
16
108
72
Mounting

5.4 DIN rail mounting

1. Fix the three mounting clips delivered with the device (two of them packed
separately) manually or using a tool, as illustrated below.
2. Mount the ISOMETER® onto the DIN rail.
3. Fix the ISOMETER® onto the DIN rail by pressing the mounting clips until they snap
into place
Ø M4
Dimensions in mm
Mounting clips
The installation of a third mounting clip is only required for "W variants".
108
18
54
