Device overview

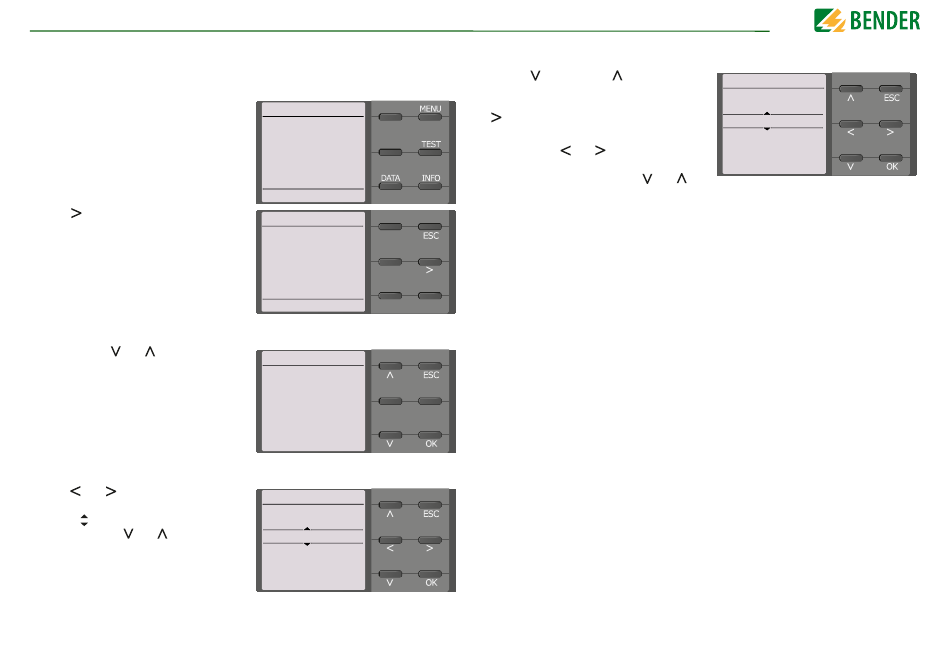

4.5 Operating and navigating

4.5.1 Menu selection

Activate the menu by pressing the
"MENU" button
Use the
button to select menu items.
Press "ESC" to return form the respective
menu level.
An overview of the device menu can be
found in chapter .

4.5.2 List selection

Use the buttons
and
to select values
from a predefined list (menu). The present
value is indicated by a black menu item.
Confirm the value with the "OK" button.
Exit the list selection by pressing "ESC".

4.5.3 Parameter selection and value adjustment

Use the
and
buttons to select a pa-
rameter. The present parameter is indicat-
ed by the
symbols. Values can be
changed using the
and
buttons. Con-
firm input text by pressing "OK". Exit text
input by pressing "ESC".
14
IT system
OK
230 kΩ
R(an)
100kΩ/20kΩ
Commissioning
x.6
Please set the current
date and time.
2/1x
System type
x.6.6
• DC
o AC
o 3AC
Date
x.6.4
28.07.2016
Min.
1
Max.
12
Device overview

4.5.4 Character input

Use the
(forward) and
(backward)
buttons to select a character from the dis-
play. To enter the next character, use the
button to select the next position.
To delete a character that has been en-
tered, use the
and
buttons to select
the position of the character to be deleted
and then select "del" using the
and
buttons.
Confirm the entered text with "OK". Exit
the character input by pressing "ESC".
Ethernet
x.3.2
192.
-.0123456789abcdef
ghijklmnopqrstuvwxyz
isoRW685W-D_D00178_04_M_XXEN/02.2019
