Attaching The Backplate - EK-Quantum Vector RX 6700XT Backplate User Manual

G1.0
G1.5
G1.0
Thermal Pad G 1.0 mm
G1.0
Thermal Pad G 1.5 mm
G1.5
G1.0
G1.5
STEP 3
7x M2.5 x 8 AX1 Screw
STEP 4
- 7 -
STEP 3

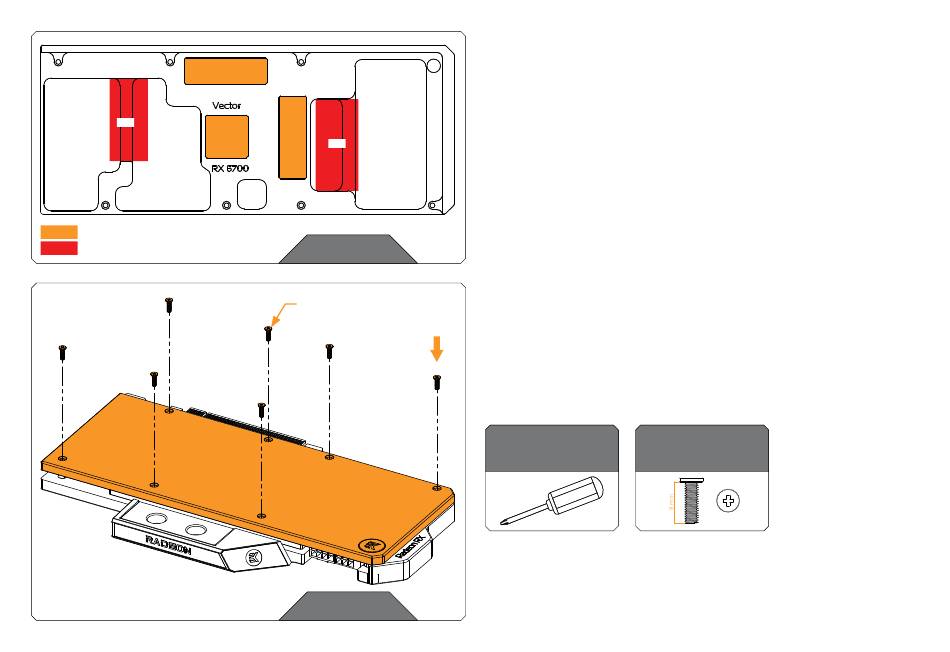

Once cut to size thermal pads should be applied to the backplate as
shown in the image.
STEP 4

ATTACHING THE BACKPLATE

Place the backplate on the PCB and make sure all holes are aligned.
Position an M2.5x8 AX1 screw in each of the seven (7) mounting
holes (as shown in the image) and tighten them evenly with a
Phillips head screwdriver. Do not use excessive force!
For this Step, you will need:
Phillips Head M2.5 x 8 AX1
Screwdriver 7 pcs
