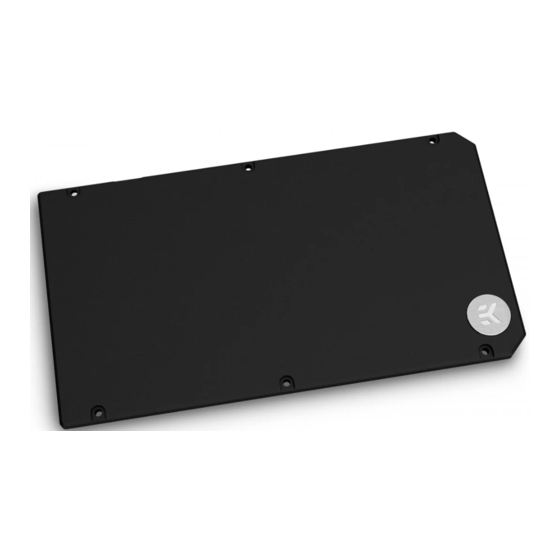

EK-Quantum Vector FE RTX 3070 User Manual
Backplate
Hide thumbs
Also See for Vector FE RTX 3070:
- User manual (10 pages) ,
- User manual (15 pages) ,
- User manual (14 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for EK-Quantum Vector FE RTX 3070
Summary of Contents for EK-Quantum Vector FE RTX 3070

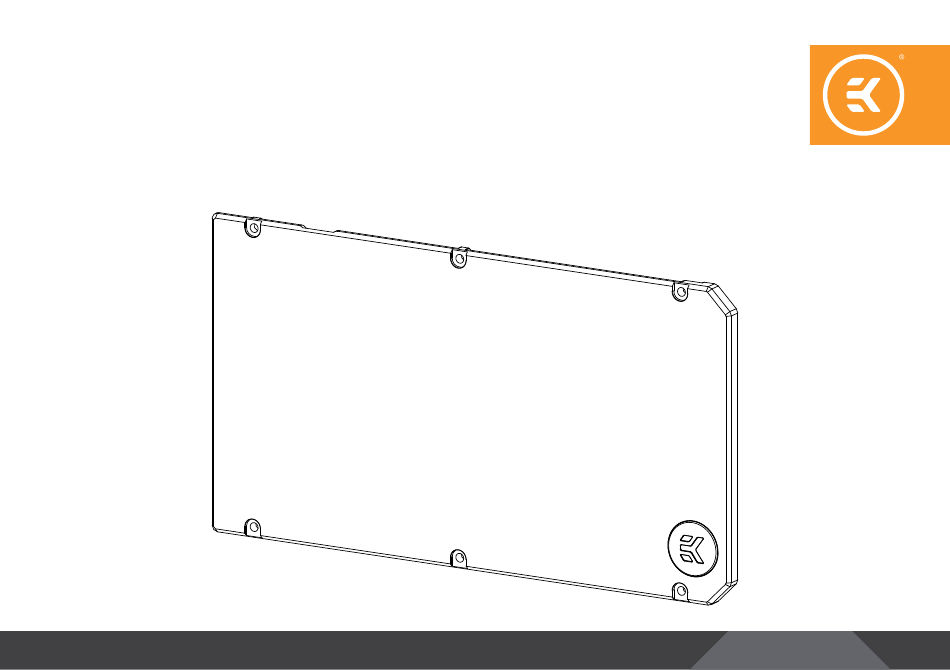

- Page 1 EK-Quantum Vector FE RTX 3070 Backplate BACKPLATE USER GUIDE...
- Page 2 This product is intended for installation only by expert users. Please consult with a qualified technician for installation. Improper installation may result in damage to your equipment. EK Water Blocks assumes no liability whatsoever, expressed or implied, for the use of these products, nor their installation.
-
Page 3: Table Of Contents
TABLE OF CONTENTS BOX CONTENTS BACKPLATE DIMENSIONS REQUIRED TOOLS INSTALLING THE BACKPLATE PREPARING YOUR GRAPHIC CARD CUTTING AND PLACING THERMAL PADS ATTACHING THE BACKPLATE TESTING THE LOOP WARRANTY SUPPORT AND SERVICE SOCIAL MEDIA - 3 -... -
Page 4: Box Contents
BOX CONTENTS Mounting mechanism - You may not need all the screws, mounting mechanism is universal! M2.5x4 AX1 Screw (3 pcs) EK-Quantum Vector FE RTX 3070 Backplate M2.5x6 AX1 Screw (7 pcs) M2.5 Nut (5 pcs) PVC Washer M2.5 (10 pcs) M2,5x7 AX1 (7 pcs) Thermal PAD G 1.0 mm - (120x24mm) (1 pcs) -
Page 5: Backplate Dimensions
BACKPLATE DIMENSIONS 178 mm 5.20 mm REQUIRED TOOLS Phillips Head Screwdriver Scissors - 5 -... -
Page 6: Installing The Backplate
INSTALLING THE BACKPLATE STEP 1 PREPARING YOUR GRAPHIC CARD First complete the installation of your EK-Quantum Vector FE RTX 3070 water block according to its installation manual. If water block is already installed, remove the six (6) AX1 screws and their PVC washers(marked on the picture). -
Page 7: Attaching The Backplate
STEP 3 Once cut to size thermal pads should be applied to the backplate as shown in the image. Thermal Pad G 1.0 mm STEP 3 Thermal Pad G 1.5 mm STEP 4 M2.5x7 AX1 Screw ATTACHING THE BACKPLATE Place the backplate on to the PCB aligning all of the holes. Position an M2.5X7 AX1 screw in each of six (6) mounting holed marked below and then tighten them evenly using a Phillips head screwdriver. -
Page 8: Testing The Loop
TESTING THE LOOP To ensure the installation of EK components was successful, we recommend you perform a 24-hour leak test. When your loop is complete and filled with coolant, connect the pump to a PSU outside your system. Do not connect power to any of the other components. -
Page 9: Support And Service
SUPPORT AND SERVICE In case you need assistance, please contact: https://www.ekwb.com/customer-support/ EKWB d.o.o. Pod lipami 18 1218 Komenda Slovenia - EU SOCIAL MEDIA EKWaterBlocks @EKWaterBlocks ekwaterblocks EKWBofficial ekwaterblocks...
