INSTALLING THE BACKPLATE

Thermal PAD G 1.0 mm (120 x 24 mm)
120 mm
Thermal PAD G 1.5mm (120 x 24 mm)
120 mm

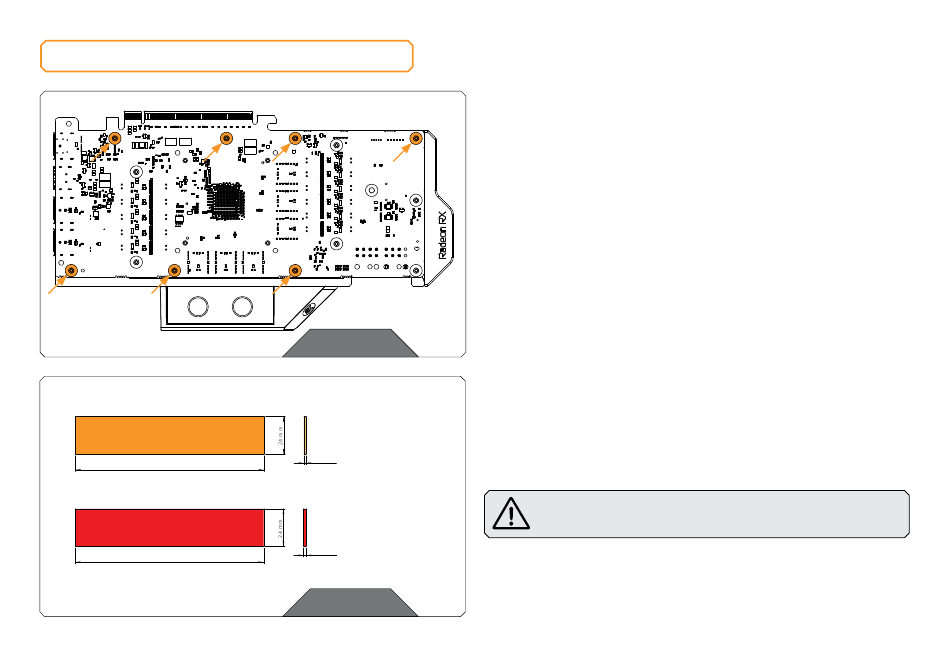

STEP 1

PREPARING THE GRAPHICS CARD

First, complete the installation of your EK-Quantum Vector RX
6700XT water block according to its installation manual.
In case the water block is already installed, remove the seven (7) AX1
screws and their PVC washers, as shown in the image.
STEP 1
STEP 2

CUTTING AND PLACING THERMAL PADS

Your backplate comes with thermal pads that have to be cut into
smaller pieces to cover all the VRM components. EK made sure to
provide you with more than an adequate quantity of thermal pads to
1 mm
complete this Step.
1.5 mm
Replacement thermal pads:
2x Thermal PAD G 1.0 mm - (120 x 24 mm)– EAN: 3830046996770
2x Thermal PAD G 1.5 mm - (120 x 24 mm) - EAN: 3830046996787
STEP 2
- 6 -
CAUTION: You must remove the protective foil from both
sides of the thermal pad before installation.
