Removing The Terminal Metal Plate; Attaching The Active Backplate - EK-Quantum Vector FTW3 RTX 3080Ti User Manual

TERMINAL METAL PLATE
M4 x 27 7984DIN SCREW
STEP 4

REMOVING THE TERMINAL METAL PLATE

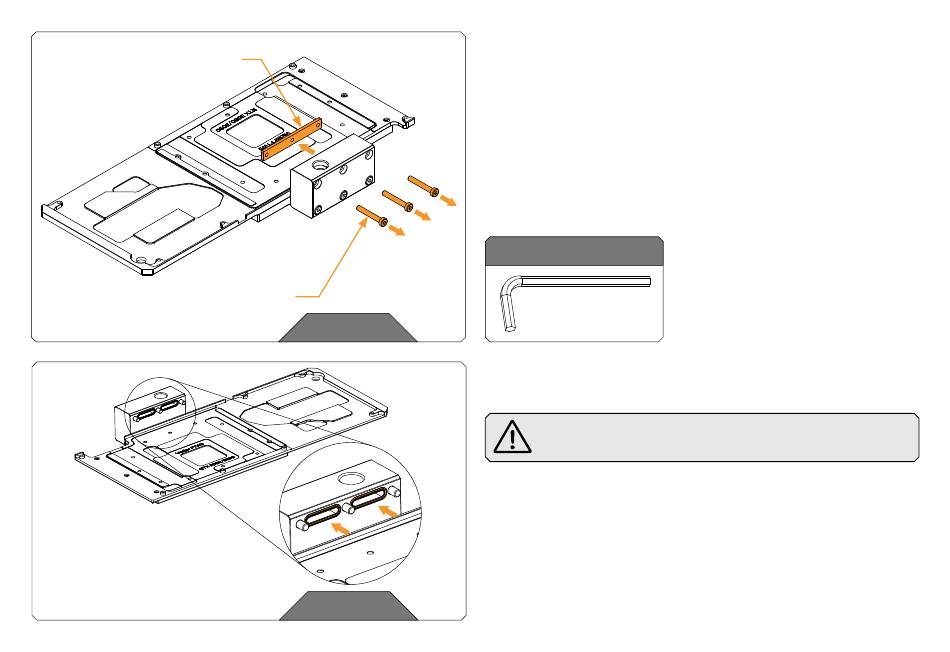

The Metal plate attached on the Terminal is meant as a precaution,
to secure the two O-rings to prevent them from falling out of their
sockets during transport and handling. Before the installation of
the Active Backplate, this metal plate has to be removed. Unscrew
the three(3) M4 x 27 DIN7984 screws with the provided 2.5 mm
Allen Key shown on the picture. Keep the screws as they will be
needed in the next steps, unlike the metal plate which will not be
needed anymore.
For this Step, you will need:
STEP 4
STEP 5

ATTACHING THE ACTIVE BACKPLATE

STEP 5
- 12 -
Allen Key 2.5 mm
First, make sure the two (2) 15 x 1 O-rings are IN terminal
slots, as shown in the image.
