EVAL-AD7903SDZ User Guide
6. A summary of the installation is displayed. Click Next to
continue.

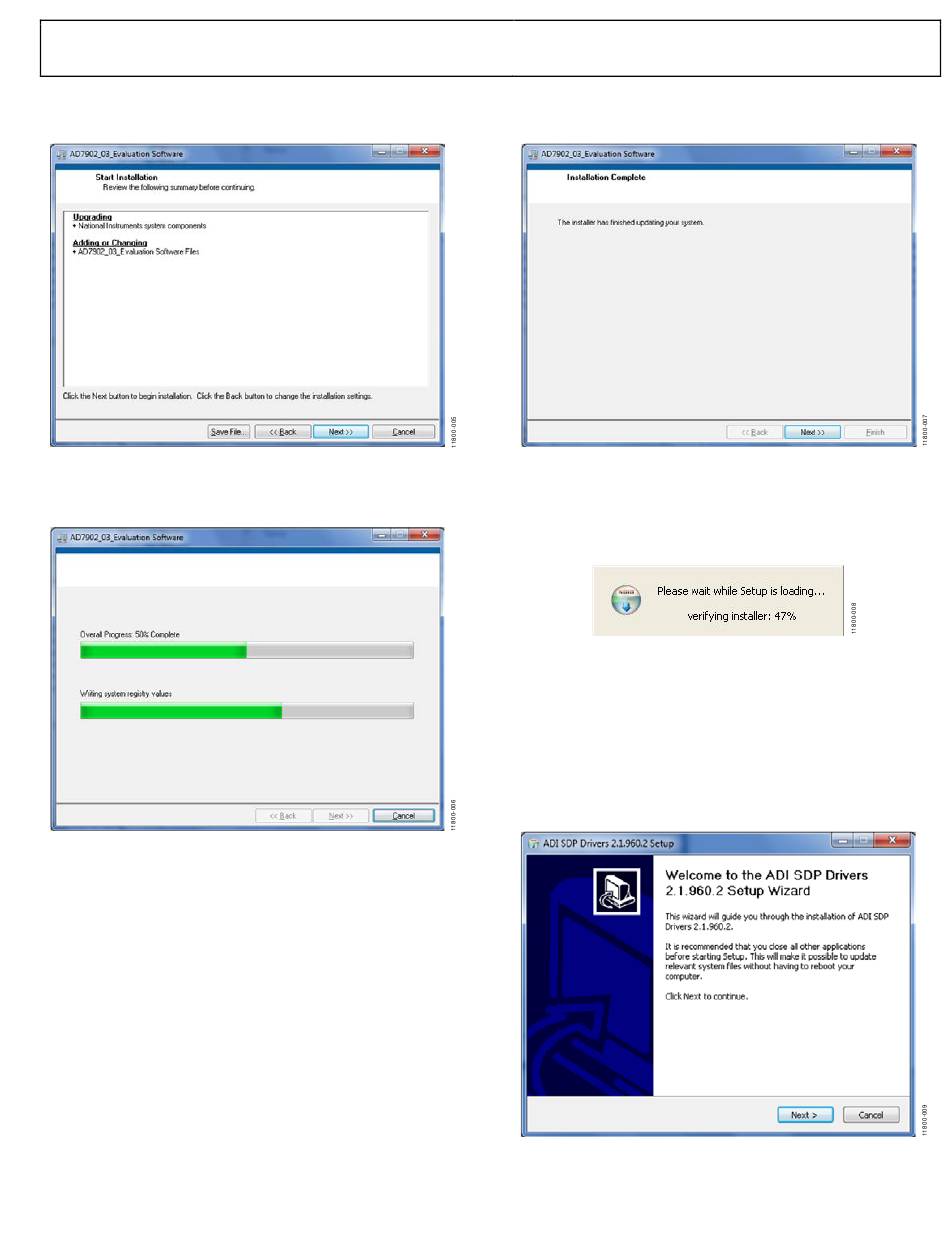

Figure 5. AD7903 Evaluation Board Software Installation:
Reviewing a Summary of the Installation
7. A dialog box shows the installation progress.
Figure 6. AD7903 Evaluation Board Software Installation:
Displaying Installation Progress
8. The dialog box informs you when the installation is
complete. Click Next.
Figure 7.
Indicating When the Installation Is Complete
9. The setup for the installation of the
system demonstration platform board drivers auto-
matically begins to load.
Figure 8. Loading the Setup for SDP Drivers Installation
Installing the
Platform Board Drivers
After the installation of the evaluation board software is complete,
a welcome window is displayed for the installation of the
SDP-CB1Z system demonstration platform board drivers.
1. Make sure that all other applications are closed, and then
click Next.
Rev. 0 | Page 5 of 32
AD7903 Evaluation Board Software Installation:
EVAL-SDP-CB1Z
EVAL-SDP-CB1Z System Demonstration
Figure 9. EVAL-SDP-CB1Z Drivers Setup:
Beginning the Drivers Installation
UG-609
