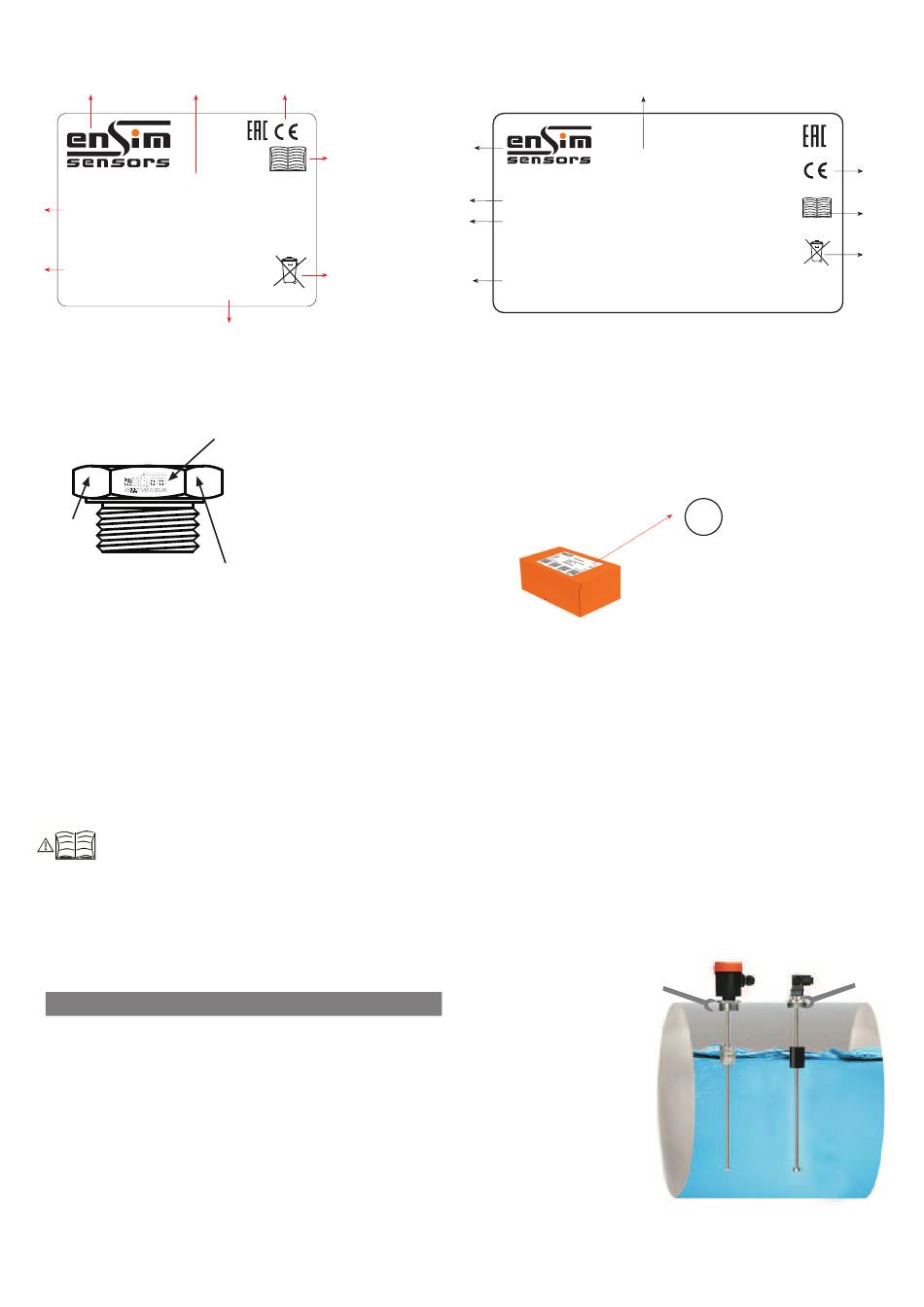

1.5. Product Label :
Product Label
Manufacturer Brand Product Name
LEVEL SWITCH
Model
Type : ELS 000-9-400-1-006-19-01-67-02-00/0
Output : 2 x NO NC
Contact :
50 W / VA 200 VDC / 250 VAC
Serial
S.N. :
IE20030200-0001
Number
MADE IN TURKIYE www.ensim.com.tr
Length :
L :...mm
1.6. Content of Package
Please check whether you have taken delivery of below
listed content completely or not and check its conformity with criterions in your order:
*Level switch
*This operating manual
1.7. Target Group
This operating manual has been prepared for qualified technical personnel.
1.8.Security Notes
Following notes should be taken into consideration in order to avoid dangers which can occur on the operator and around
the ambient:
Installation, operation and maintenance of this instrument should be made only by people who have read the operating manual and
who are knowledgeable about work safety!
It should be complied with work safety, accident prevention regulations and national installation standards.
Product should be used only within the scope of stated specifications!
You can assemble the instrument only when pressure is not available!

2. Installation :

2.1. General Notes
Installation of the instrument should be made only by authorized personnel.
Do not apply force to the instrument during the installation!
Do not use the level indicator with a greater pressure than recommended pressure.
Do not forget that instrument is precise, carry it carefully and prevent to be damaged.
It should be guaranteed that there are not any magnetic particles.
2.2. General Installation Stages
*Remove level indicator from the box carefully
*Check whether gasket is appropriate for fluid or not. If is not appropriate, contact with the producer.
*Then, apply below mentioned explanations according to structure of the design.
Approval Sign
Warning
Symbols
Warning
Symbols
Manufacturer
Website
Mark : ENSIM SENSORS
Serial Number : IE16200062-0002
Box Label
Manufacturer
Brand
Model
Type : ELS 000-9-400-1-006-19-01-67-02-00/0
S.N. : IE20030200-0001
Serial Number
Quantity : 1 pc.
Manufacturer www.ensim.com.tr
Website
4
Product Name
LEVEL SWITCH
MADE IN TURKIYE
QC
Quality
Label
Approval
Sign
Warning
Symbols
Warning
Symbols
