1. General Information :

1.1. Material Acceptance
Check that there is no damage on the packages during the transportation immediately after the material acceptance. If packages are
damaged, open the packages immediately and check whether products are affected or not, if there is any damage, send your
complaint report to the transporter company and its photocopy to the address of our company.
1.2. Information about Areas of Use
It should be used in allowed using medium and application areas! It is not used in the corrosive mediums,
ambient with explosive and flammable material. Conformity with medium to be measured should be also taken into consideration.
Responsibility is not assumed in case of inappropriate use, modification and injure, and such cases are not covered by warranty.
Ambient Conditions: Relative Humidity: 5-95 %RH
1.3. Working Principle
ELS level switches are used for checkin level of tank. It is preferred by machine manufacturers, especially in terms of its ease ofg use and
economy. The ELS level switched can be mounted in litte places because of their mini design. The switches are made by stainless steel
material and so can be used in various liquids.
When magnetic field of magnet in the float is aligned withreed sensor in the tube , it opens or closes
the electric circuit.When float moves away , sensor reverts back ( upon demand , drawn contact may be made).
Level informationcan be assessed with a relay circuit.

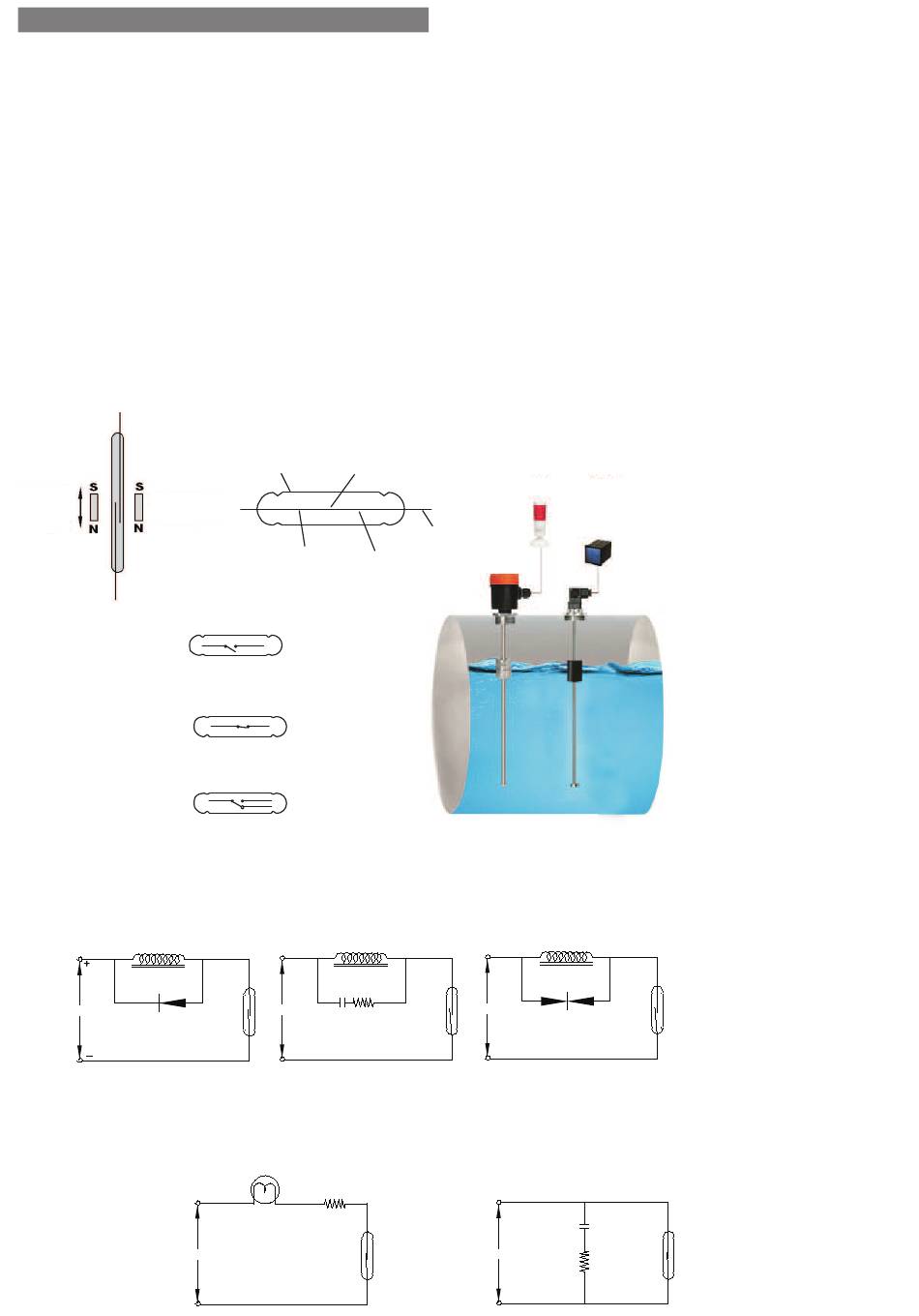

Reed Relay and Operation Conditions
Closed
Magnet
Open
SPST-NO
Single Pole-Single Throw
Normally Open
SPST-NC
Single Pole-Single Throw
Normally Closed
SPDT-NO/NC
Single Pole-Double Throw
Open / Closed Contact
Inductive Load
When reed switch is used for loads such as electromagnetic relay ,contactor or solenoid, reed switch may be exposed to very high
voltage depending on value of inductive load. This causes either failure of switch or shortening its service life. Therefore, it is
recommended to be used as follows depending on used voltage, for the purpose of protection of switch.
Inductive Load
DC
Diod
Capacitive Load
When reed switch is used with capacitive load, it may cause that high current passes over reed switch, depending on value of
capacity during Charge –'96 Discharge of capacity. So this may cause failure of switch. It is recommended to be used as follows
depending on used voltage, for the purpose of protection of switch.
AC
Ambient temperature: 60 °C
Glass Tube Contact
Inert Gas Magnetic Reed
Inductive Load
AC
C R
Neon Lamp
R
(It is not used under -20 °C)
Example of application :
Light Control
Pump
Wire
Inductive Load
AC
Varistor
C
AC
R
2
SSR Solenoid Siren
Valve
