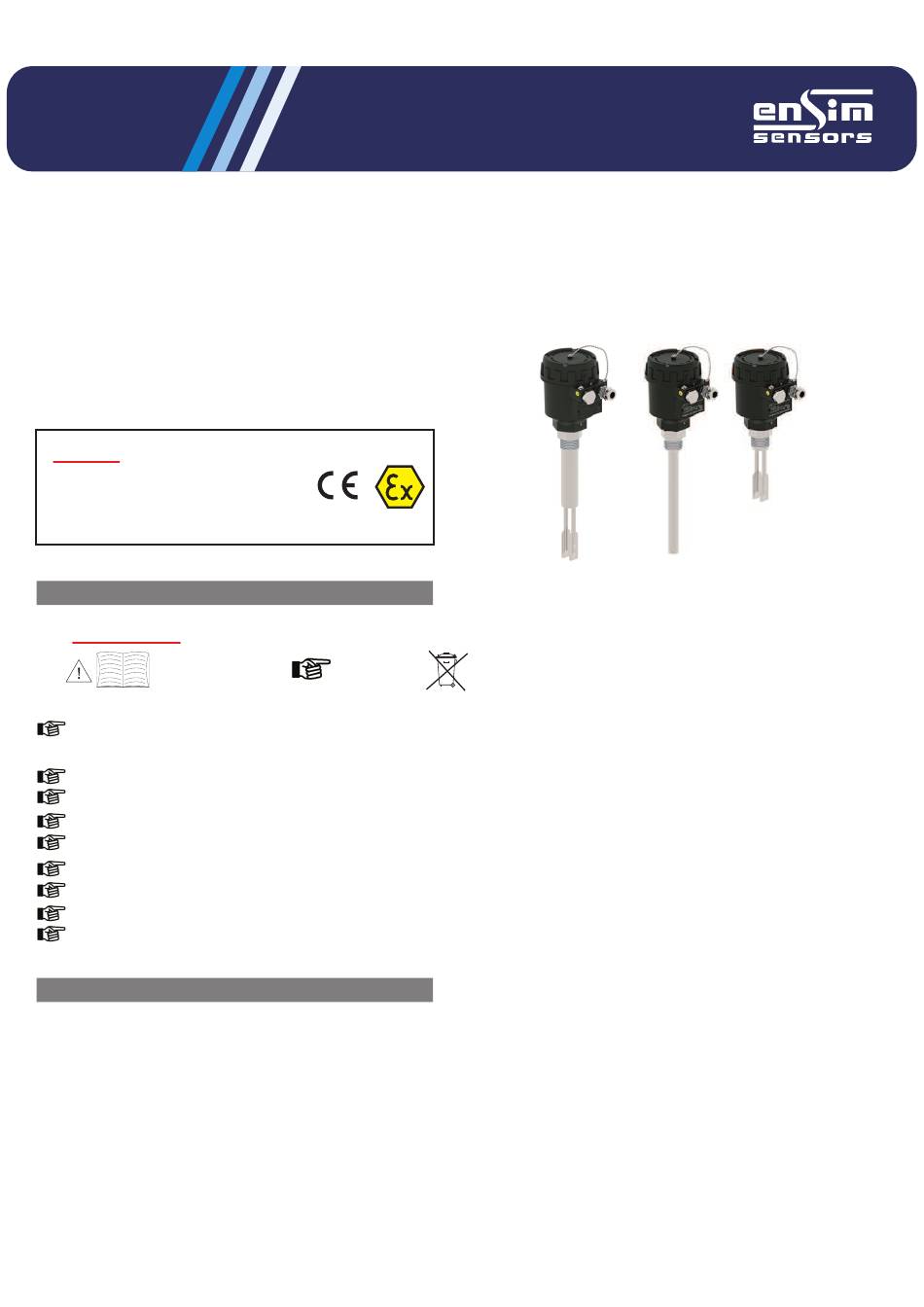

OPERATING
MANUEL
Information in this manual is reviewed and completely reliable. Responsibility is not assumed due to any typing error.
Products in this manual are available only for information purpose and they may be changed without notice.
Models :
DX-ELT 101 , 102 , 104 , 105
DX-ELT 201 , 202 , 204 , 205
Important Notes:
Used Symbols :
: Caution
Please read this manual carefully before installation of the vibrating level switch. User is responsible for accidents and losses arising
from failure to comply with the warnings in this manual.
In the event that vibrating level switch is broken, take measures in order to prevent accidents and losses which can occur in its system.
There is not any fuse and circuit breaker on the instrument; they should have been added to the system by the user.
This manual should be stored in an easily accessible place for subsequent use.
The manufacturer's liability cannot exceed the purchase price of the device according to the law.
Do not make any modification on the instrument and do not try to repair it. Reparation should be made by authorized service staff.
Do not operate the system before making assembly in compliance with the assembly chart related to the instrument.
Products which do not contain label and serial number are considered to be excluded from the warranty scope.
The instrument's useful life, determined and announced by the ministry, is 10 years.
Table of Contents :
1.
General Information...........................................................................................................................................................................2
2.
Installation .........................................................................................................................................................................................8
3.
Failure Detection..............................................................................................................................................................................19
4.
Disassembly of Instrument ............................................................................................................................................................19
5.
Service .............................................................................................................................................................................................19
6.
Recalibration....................................................................................................................................................................................19
7.
Repair................................................................................................................................................................................................19
8.
Disposal ...........................................................................................................................................................................................19
9.
Terms of Warranty ..........................................................................................................................................................................19
10.
Terms of Return …………………………………………………………………………………………................................................…19
DX-ELT
Model :

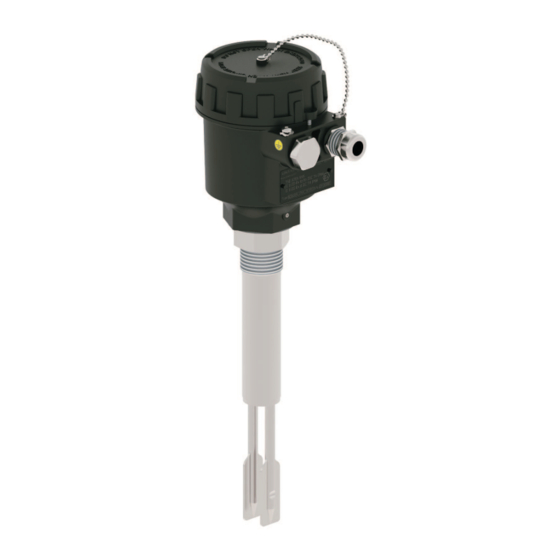

VIBRATING ROD TYPE LEVEL SWITCH
2284
: Disposal
: Note
1
Model : 61-2023-006
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ENSIM SENSORS DX-ELT
Summary of Contents for ENSIM SENSORS DX-ELT
- Page 1 Information in this manual is reviewed and completely reliable. Responsibility is not assumed due to any typing error. Products in this manual are available only for information purpose and they may be changed without notice. Models : DX-ELT 101 , 102 , 104 , 105 DX-ELT 201 , 202 , 204 , 205 2284...
-
Page 2: General Information
1.2. Information about Areas of Use The DX-ELT vibrating level switch is one of the other types of level switches. Unlike other sensors, it is not affected by the sticking of materials on the probe and impacts. It has no jamming problem and has a high sensitivity range. - Page 3 1.5. Etiket Bilgisi : Explosive Product Product Protection Area Manufacturer Brand Name Label Notified DateSign 2284 Vibration Level Switch Model Type DX-ELT101-200-0006-002-43-1-700/0 Power Supply 24 VDC / 220 VAC Output 1 x 3A NO/NC Process Temp. / Press. (-)20 °C…(+)150 °C / 15 bar Working Conditions T (Ambient) (-)20 °C…(+)80 °C...
-
Page 4: Security Notes
Equipment must only be mounted while there is no pressure. 1.9. Electrical Installation Make the electrical connection of the instrument according to details on its label, table and cable figures in this manual Electrical connection : For DX-ELT 101, 105, 201, 205 For DX-ELT 102,104, 202, 204 Normal Frequency... - Page 5 -You can only mount the device when there is no presure. -These safety instructions are protected in terms of 1 / 2 D and 1 / 1 G category for DX-ELT coded series and is compatible with TSE 18ATEX0099 and CE certificate.
- Page 6 1.11. ATEX Marking Sample Description Dust ta/tb IIIC IP66 / 68 Explosive Protection Area Equipment Group Equipment Category Explosive Atmosphere Explosive Protection Protection Type Dust Type Temperature Class (Max. Surface Temperature) Housing Protection Class IP66 / 68 Explosive Protection Area Equipment Group Equipment Category Explosive Atmosphere...
-
Page 7: Installation
2. Installation : 2.1. General Notes : The device installation is in 2014 / 34 / EU criteria to ensure the safety of atmosphere and people from explosions, must only be done by staff who knows the safeguards. Do not apply force to the instrument during the installation! Do not use the vibrating level switch with a greater pressure than recommended pressure. - Page 8 Thermal Protection Insurance is 105 °C (-) 20° C < T Ambient < (+) 30° C...(+) 60° C Working Temperature :(-) 20...(+) 145°C GROUP ll DX-ELT (Metal) T Process T Ambient MAX. PROCESS TEMPERATURE MAX. AMBIENT TEMPERATURE TEMPERATURE CLASS...
- Page 9 2.8. Parça Ýsimleri Cover Set screw Cover Chain Cover Seal Grounding Screw Grounding Internal Bracket Product Label O-Ring Cable Record Grounding Label Metal Label Body Body Seal Stopper Body Set screw Cooling Connection Thread...
- Page 10 Protection Cover - 304 Rust for outside of tank Stainless Steel../ K2 SAMPLE DX-ELT - 101 - 200 - 0006 - 002 - 43 - 1 - 700 / 0 Vibrating Type Level Switch, Model DX-ELT101, L=200 mm, 1” BSP Male Thread, Single Contact...
- Page 11 WARNING !!! 2.10. Please pay attention to following matters in order to operate your flow switch properly. No material should come on the probe. Do not pull the cable strongly, Please keep away from magnetic materials otherwise the characteristics like iron board ; otherwise the You should put a guard plate on the top.
- Page 12 3. Failure Delection Breakdown Probable cause Failure detection\correction -Notify the authorized service. No relay output -The contact may be burnt out. -Adjust the connection angle to the proper position. / Continous relay output -Connection angle is not properly connected. -Notify the authorized service. -Applied values higher than the application current or voltage.
