2. Installation

2.1. General Notes
Installation of the instrument should be made only by authorized personnel.
Do not apply force to the instrument during the installation!
Do not use the level switch with a greater pressure than recommended pressure.
Do not forget that instrument is precise, carry it carefully and prevent to be damaged.
It should be guaranteed that there are not any magnetic particles.
2.2. General Installation Stages
*Remove level switch from the box carefully
*Check whether gasket is appropriate for fluid or not. If is not appropriate, contact with the producer.
*Then, apply below mentioned explanations according to structure of the design.
2.3. Special Notes
*Please ensure that there is no mechanical stress on the shaft following installation.
Such case will cause slipping in thecharacteristic curve.
*Level switch should be placed in completely vertical or horizantal position on the line.
*Allocate valve certainly in the process connection while instrument is used.
*Allocate blowdown valve under bottom flange for blowdown.
*If instrument is mounted outside and if there is any danger of lightning or excessive pressure, take preventive measures by taking necessary measures.
*In the operating conditions, level switch may be hot according to situation of fluid, in this case, do not touch the switch, otherwise your skin is damaged.
2.4. Installation For Mechanical Connections
*Use appropriate O-Ring or gasket for tightness.
*Ensure that its surface is clean and smooth.
*Assemble the instrument manually.

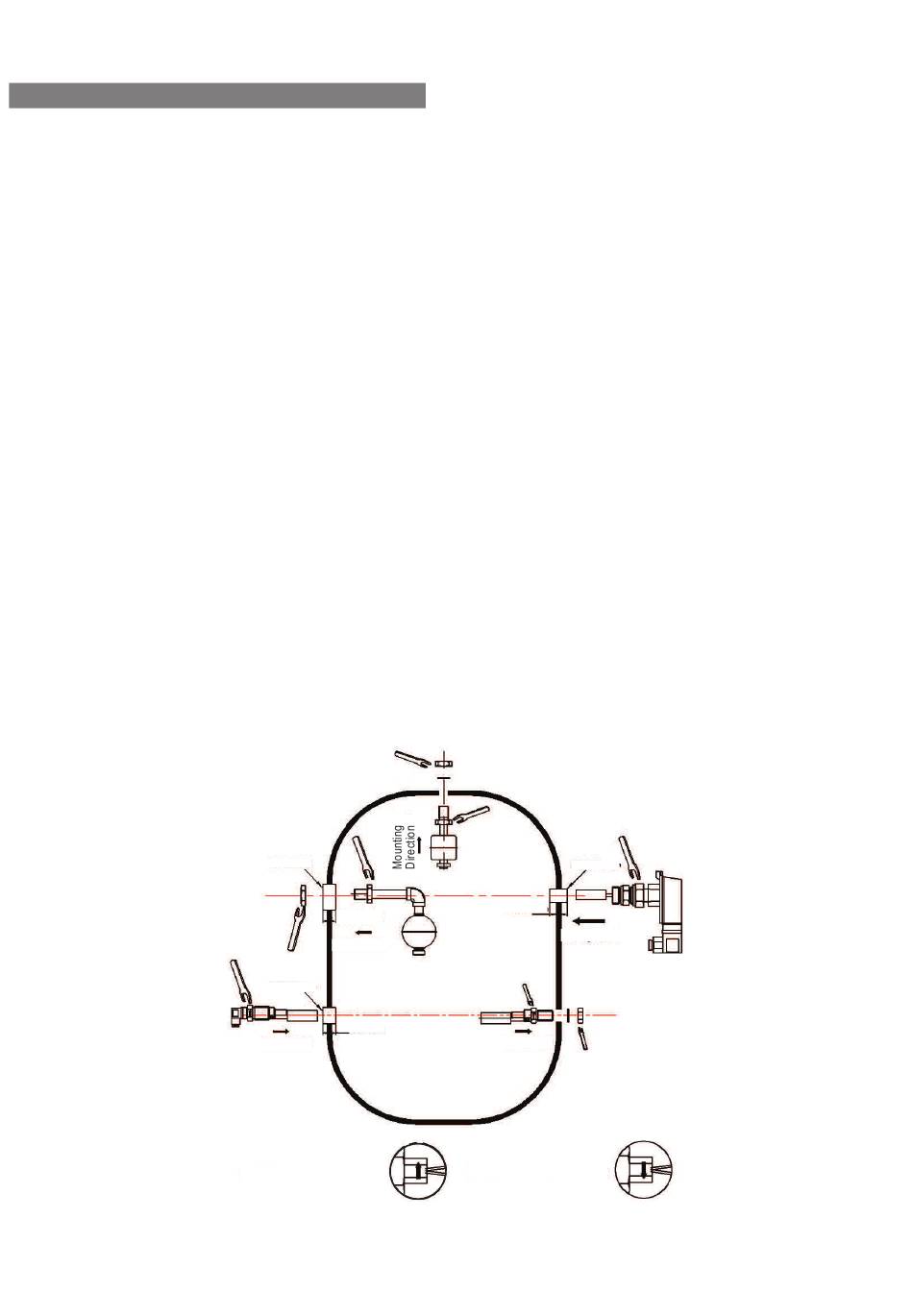

*Connect the contacts as shown in the figure. (G1/8" and M8, M10" for max. 15 Nm , G1/2" for or G3/4” max. 10 Nm , G1" for max. 15 Nm)
1”BSP Muff
Max.22mm
Mounting
Direction
1/2”BSP Muff
Max.20mm
Mounting
Direction
Mounting direction for NO
3/4”BSP Muff
Max.20mm
Mounting
Direction
Mounting
Direction
Mounting direction for NC
