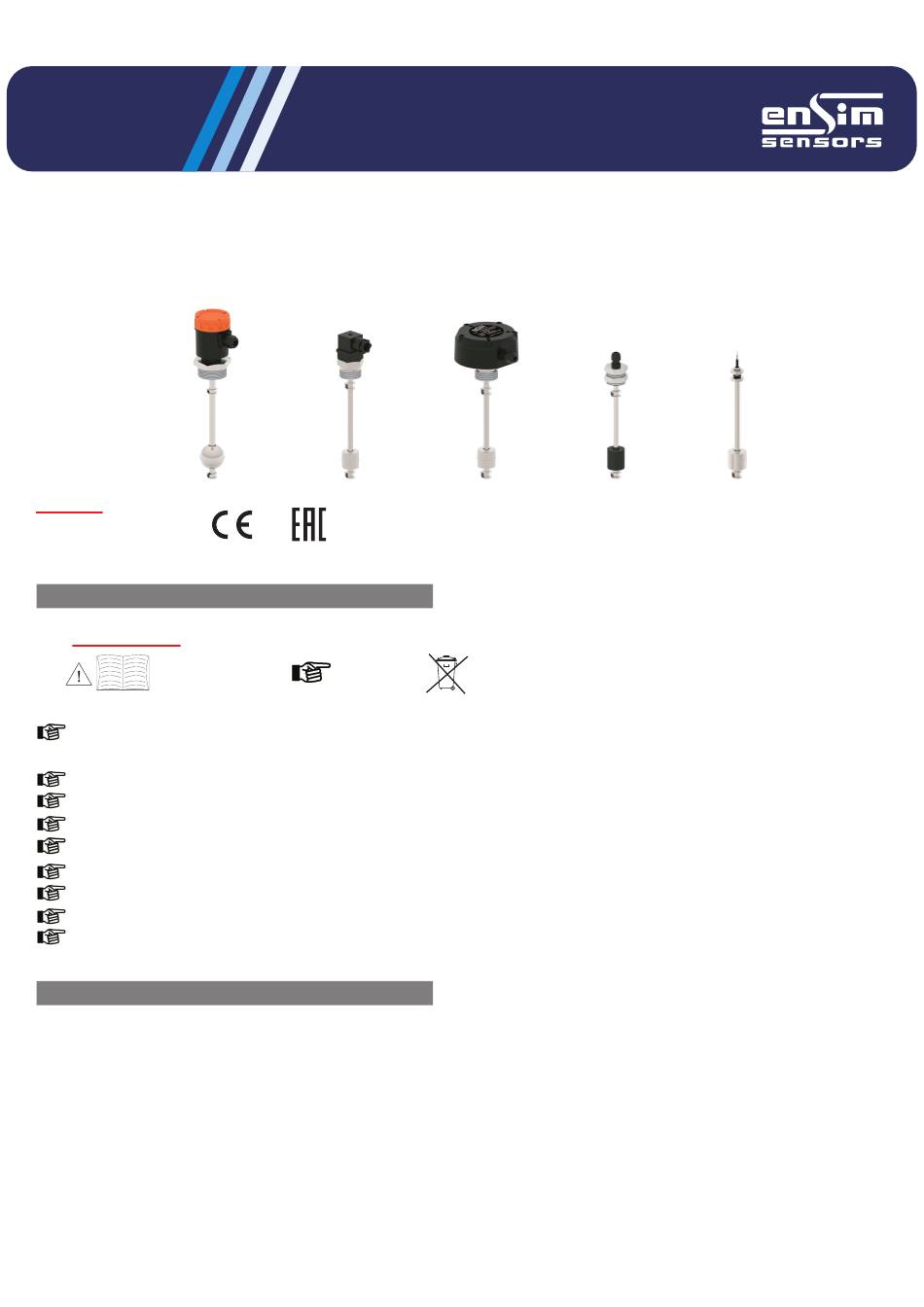

OPERATING
MANUEL
Information in this manual is reviewed and completely reliable. Responsibility is not assumed due to any typing error.
Products in this manual are available only for information purpose and they may be changed without notice.
Models :
ELS , ELSy , ELSp , ELSm
Important Notes:
Used Symbols :
: Caution
Please read this manual carefully before installation of the level switch. User is responsible for accidents and losses arising
from failure to comply with the warnings in this manual.
In the event that level switch is broken, take measures in order to prevent accidents and losses which can occur in its system.
There is not any fuse and circuit breaker on the instrument; they should have been added to the system by the user.
This manual should be stored in an easily accessible place for subsequent use.
The manufacturer's liability cannot exceed the purchase price of the device according to the law.
Do not make any modification on the instrument and do not try to repair it. Reparation should be made by authorized service staff.
Do not operate the system before making assembly in compliance with the assembly chart related to the instrument.
Products which do not contain label and serial number are considered to be excluded from the warranty scope.
The instrument's useful life, determined and announced by the ministry, is 10 years.
Table of Contents :
1.
General Information...........................................................................................................................................................................2
2.
Installation .........................................................................................................................................................................................4
3.
Failure Detection..............................................................................................................................................................................16
4.
Disassembly of Instrument ............................................................................................................................................................16
5.
Service .............................................................................................................................................................................................16
6.
Recalibration....................................................................................................................................................................................16
7.
Repair................................................................................................................................................................................................16
8.
Disposal ...........................................................................................................................................................................................16
9.
Terms of Warranty ..........................................................................................................................................................................16
10.
Terms of Return …………………………………………………………………………………………................................................…16

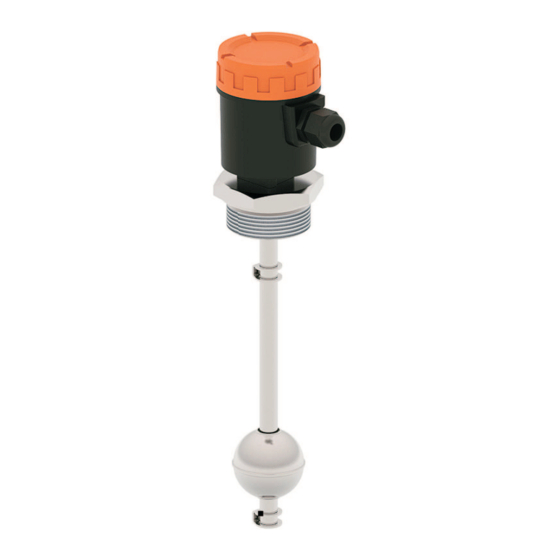

ELS
Model :
LEVEL SWITCH
: Disposal
: Note
1
Model: 37-2021-010
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ENSIM SENSORS ELS
Summary of Contents for ENSIM SENSORS ELS
-
Page 1: Table Of Contents
Information in this manual is reviewed and completely reliable. Responsibility is not assumed due to any typing error. Products in this manual are available only for information purpose and they may be changed without notice. Models : ELS , ELSy , ELSp , ELSm Important Notes: Used Symbols :... -
Page 2: General Information
1.3. Working Principle ELS level switches are used for checkin level of tank. It is preferred by machine manufacturers, especially in terms of its ease ofg use and economy. The ELS level switched can be mounted in litte places because of their mini design. The switches are made by stainless steel material and so can be used in various liquids. - Page 3 2 pcs. 5A / 250 VAC Relay (Start/Stop) Working Temperature (-) 20 °C...(+) 70 °C Dimension 72 mm x 72 mm Input Contact information , coming from ELS Protection Case : l : 304 Stainless Steel Materia Welded manufacturing Opens - Closes Hinged To Protect Against external conditions.
-
Page 4: Installation
Number MADE IN TURKIYE Website MADE IN TURKIYE www.ensim.com.tr Manufacturer Website Mark : ENSIM SENSORS Length : L :...mm Quality Label Serial Number : IE16200062-0002 1.6. Content of Package Please check whether you have taken delivery of below listed content completely or not and check its conformity with criterions in your order:... - Page 5 2.3. Special Notes *Please ensure that there is no mechanical stress on the shaft following installation. Such case will cause slipping in thecharacteristic curve. *Level indicator should be placed in completely vertical position on the line. *Allocate valve certainly in the process connection while instrument is used. *Allocate blowdown valve under bottom flange for blowdown.
- Page 6 2.6. Float : For Minimum Distance S1Y / S1A / S7A / S17A S10Y / S11A / S54A S2A / S5A / S6A S40A / S41A / S53A S42A / S52A P3 / P6 / P7 P9 Order Boru Maks. Maks.
- Page 7 Installation For Mechanical Connection : 2.7. Thread Flanged Order (ISO1092-1) Code PN 16 D (mm) D1 (mm) b (mm) 0502 DN 25 0503 DN 32 0505 DN 50 (ISO228-1) 0507 DN 80 Order Dimension Thread Length 0508 DN100 (mm) b (mm) Code 0001 1/8”...
- Page 8 2.8. Electrical Installation Make the electrical connection of the instrument according to details on its label, table and cable figures in this manual B10p, B10x , B101x Housing Four pieces contact Two pieces independent contact Two pieces double contact NO or NC NO or NC NO / NC (SPDT) Bottom...
- Page 9 PG Socket or Cable K01 , K02, K03 PVC Cable (105 °C) PVC Cable (105 °C) PVC Cable (105 °C) Brown - Top Contact Brown - NC Black Black - Common Black - Common Blue Blue - Bottom Contact Blue - NO Single contact Single contact Two pieces single contact...
- Page 10 2.9. Sample Models : 2” BSP 2” BSP ØDN Closed Closed Closed Open Open Open Closed Open Closed Closed Closed Open Open Open Housing - Thread Housing - Flanged Housing - Double Float 2” BSP 1” BSP 1” BSP Closed Closed Closed Open...
- Page 11 Sample Models : ELSy 1 1/4” BSP 1 1/4” BSP 1 1/4” BSP Closed Closed Closed Open Open Open Closed Closed Closed Open Open Open Housing With Socket With Cable ELSp 1” BSP 1” BSP 1” BSP Closed Closed Closed Open Open Open...
- Page 12 Sample Models : ELSm Closed Closed Open Open Closed Closed Open Open Without Thread Straight Type Elbow Type EMPTYING Max. Start Min. Stop FILLING Max. Stop Min. Start...
- Page 13 2.10. Order Form : Order Form : Please consider sample models when coding MODEL Standart Version ........ELS ELSp (For Hydraulic Tanks).......ELSp ELSy (For Yacht Industry).......ELSy ELSm (For Machinery Manufacturing)....ELSm CERTIFICATE None..............0 (EN10204-3-1) Material Certification......1 HOUSING None..............0000 Stainless Steel Housing , B101x......5265 Plastic Housing , B10p ......5239...
- Page 14 SAMPLE ELS - 0 - 0055 - 00 - 0005 - 001 - 13 - 0001 - 1500 - 001 / 1 - 1 / 1400 - 8 / 0 ELS Level Switches, Plastic Housing, 3/4” BSP Male Thread, Connection and Pipe Material 304 Stainless Steel...
- Page 15 2.11. WARNING !!! Please pay attention to following matters in order to operate your flow switch properly. 90° Please keep away from magnetic materials Please do not mount Do not pull the cable strongly, like iron board ; otherwise the slant way, otherwise otherwise the characteristics characteristics might be affected...
-
Page 16: Failure Detection
3. Failure Delection Breakdown Probable cause Failure detection\correction -Check that is worked under appropriate condition Fluid is leaking There is a hole on the body. and then contact with producer company. -Check for socket connections. -Socket connection is not touched. -The factor which constitutes the magnetic field It does not contact -Product was exposed to the magnetic field...
